Hammond 1591 Series Black Flame Retardant ABS Enclosure, IP54 Flanged 61 mm, 191 mm, 110 mm

RS Stock No.:: 493-6076
Distrelec Article No.:: 150-19-450
Mfr. Part No.:: 1591EBK
Brand:: Hammond

Hammond 1591 Series Black Flame Retardant ABS Enclosure, IP54 Flanged 61 mm, 191 mm, 110 mm

Subtotal (1 unit)*

£12.09

(exc. VAT)

£14.51

(inc. VAT)

Stock information currently inaccessible - Please check back later

Units	Per unit
1 +	£12.09

*price indicative

RS Stock No.:: 493-6076
Distrelec Article No.:: 150-19-450
Mfr. Part No.:: 1591EBK
Brand:: Hammond

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Hammond
	Product Type	Enclosure
	Body Material	Flame Retardant ABS
	External Height	61mm
	External Length	191mm
	External Width	110mm
	IP Rating	IP54
	Colour	Black
	Lid Colour	Black
	Flanged	Yes
	Shielding	Unshielded
	Hazardous Area Certification	No
	Series	1591
	Standards/Approvals	RoHS
	Weight	245g
	Transparent Door	No
	Explosion Proof	No

	Select all
	Brand Hammond
	Product Type Enclosure
	Body Material Flame Retardant ABS
	External Height 61mm
	External Length 191mm
	External Width 110mm
	IP Rating IP54
	Colour Black
	Lid Colour Black
	Flanged Yes
	Shielding Unshielded
	Hazardous Area Certification No
	Series 1591
	Standards/Approvals RoHS
	Weight 245g
	Transparent Door No
	Explosion Proof No

COO (Country of Origin):: CA

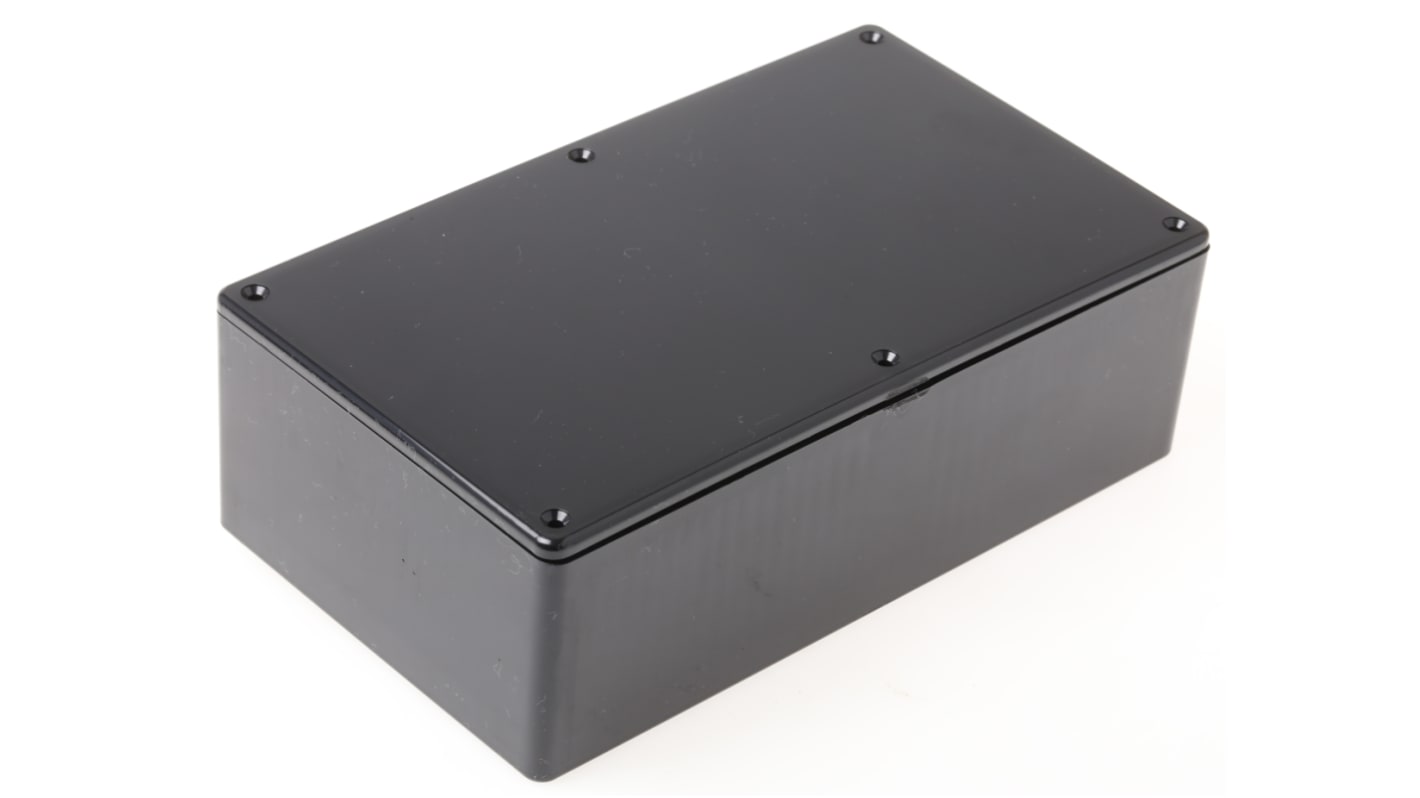

Hammond Enclosure, 191 (L) x 110 (W) x 61mm (H), ABS Construction, Black Colour - 1591 Series - 1591EBK

To stop contaminants from getting at your electronic equipment, cover things up with this enclosure from Hammond. It's an ideal option for use with PCBs as the interior is lined with card guides that fit 1.5mm cards like a glove. The two-piece lap-joint construction means it's rapid to assemble and easy to take apart again when you need access to your components. Six countersunk screws secure the lid to the body and are driven into plastic-tapped bushings to ensure internal components can't be damaged.

Features & Benefits

• Light 245g weight keeps load low and minimises strain

• Fire-retardant material self-extinguishes in under 10 seconds for fire safety

• Supplied with M3x10 mm machine screws for speedy installation

• Robust ABS material resists impacts, abrasion and corrosion, so you can be sure of a long service life

Applications

• Power utilities

• Industrial data networks

• Automated assembly lines

Does this enclosure have an IP rating?

Yes, it has an IP54 rating. This means it's dust-tight and withstands low-pressure water sprays from all directions, so it's an ideal choice for use in challenging industrial conditions.

Approvals

Material Flamability Rating: UL94-V0
