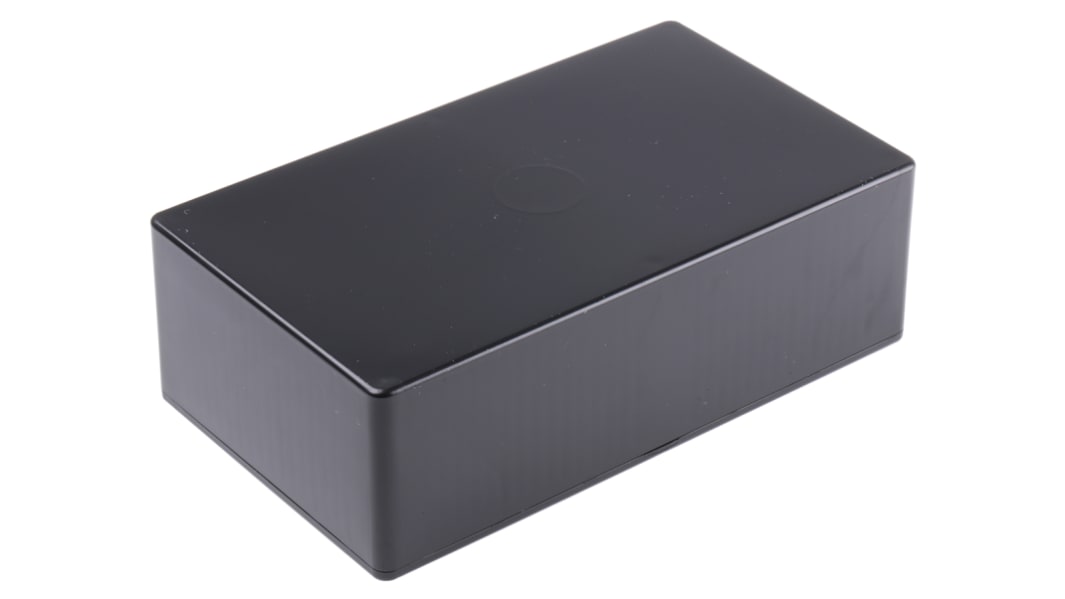

1591 Plastic Enclosure, IP54, 191 x 110 x 57mm

  • RS Stock No. 415-2846
  • Mfr. Part No. 1591ESBK
  • Brand Hammond
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CA
Product Details

General Purpose ABS Enclosure Hammond 1591 Series

The Hammond 1591 Series of multi-purpose electronic instrument enclosures are ideally suited for mounting printed circuit boards. Enclosures are made from flame retardant ABS plastic and designed to meet IP rating IP54.

Features and Benefits:

• Ideally suited for mounting printed circuit boards
• Integral card guides accept 1.5mm (0.062in.) PC cards
• Lap joint construction provides protection against ingress of dust and splashing water, IP54
• Lid is secured with 4x0.5in. Phillips screws, black to match enclosure

FAQ:

What does IP rating mean?

The IP rating is used to define levels of sealing effectiveness of electrical enclosures against intrusion from foreign bodies (tools, dirt etc) and moisture. For more information please, visit SELECTION section at the top of the page or click on Selection Guide of an Enclosures.

What is supplied?

• An enclosure with a lid • 4 x M3x10mm Phillips screws

Note

• Dimensions do not include the lid and exclude flanges (add 4mm to height for the lid)
• Black enclosures include black screws, all others - standard nickel finish screws.

Approvals

UL flammability rating of 94V-0

Specifications
Attribute Value
Body Material ABS
External Dimensions 191 x 110 x 57mm
External Length 191 mm
External Width 110 mm
External Height 57 mm
IP Rating IP54
Colour Black
Lid Colour Black
Series 1591
66 In stock for FREE next working day delivery
Price Each
£ 6.85
(exc. VAT)
£ 8.22
(inc. VAT)
Units
Per unit
1 - 14
£6.85
15 - 24
£6.52
25 +
£6.31
