Hammond 1591 Series ABS Enclosure, IP54, 191 x 110 x 61mm
- RS Stock No.:
- 229-1648
- Mfr. Part No.:
- 1591ESGY
- Brand:
- Hammond
3 In stock - FREE next working day delivery available
4 available from Europe for delivery within 1 working day(s).
Added
Price Each
£5.70
(exc. VAT)
£6.84
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £5.70 |
| 5 - 9 | £5.40 |
| 10 - 19 | £5.13 |
| 20 - 49 | £4.85 |
| 50 + | £4.55 |
- RS Stock No.:
- 229-1648
- Mfr. Part No.:
- 1591ESGY
- Brand:
- Hammond
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CA
Product Details

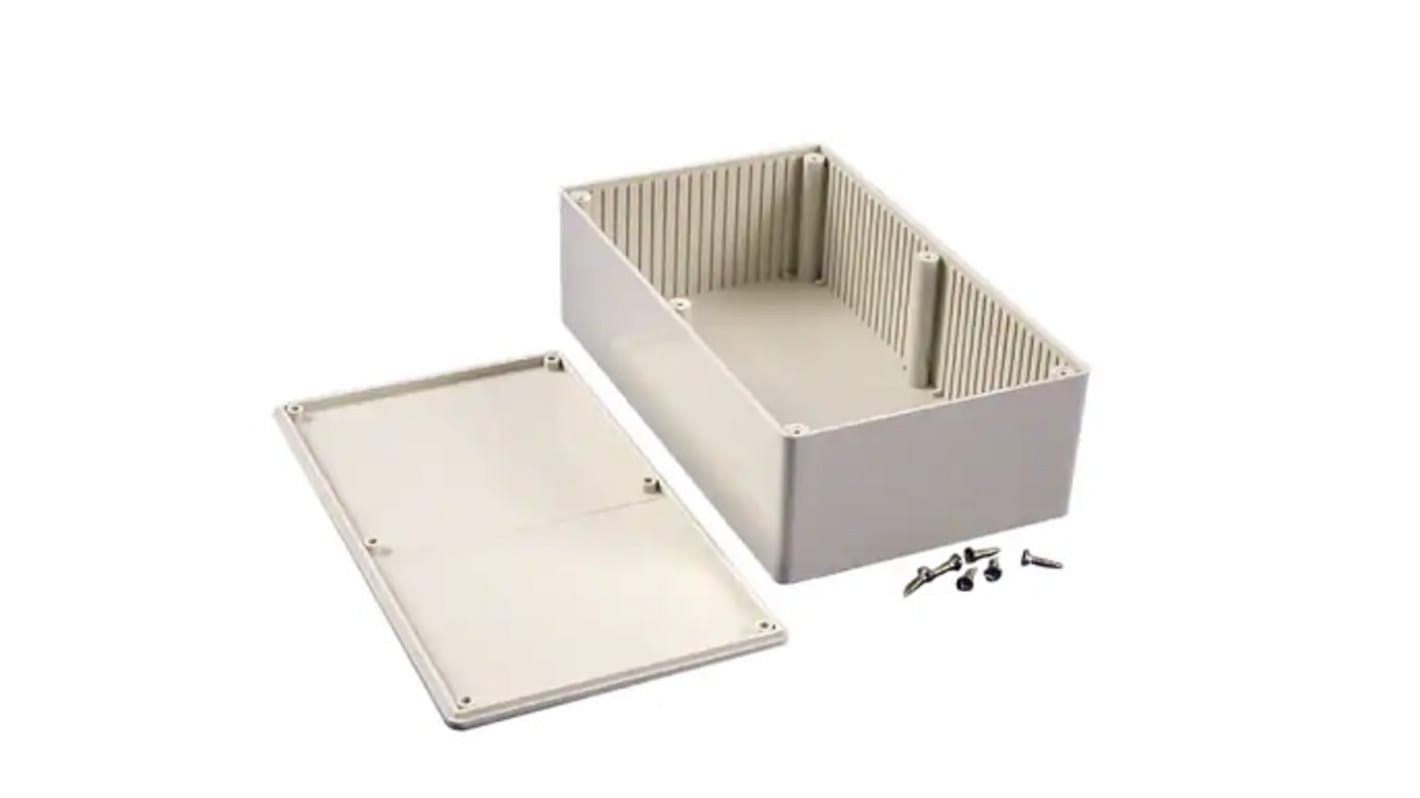

The Hammond multipurpose enclosure is Ideally suited for vertical mounting of printed circuit boards (internal side walls include moulded in card guides). Integral card guides accept 1.5 mm (0.062 in) P.C. cards. Lap joint construction provides protection against access of dust and splashing water. Its lid is secured with M3 x 10 mm Phillips machine screws, threaded into integral brass bushings. Perfect for applications when repetitive assembly and disassembly are required. It is light grey in colour and has 191 x 110 x 61 dimensions.
It has IP54 protection
It has UL94 HB flammability rating
It has UL94 HB flammability rating
Specifications
Attribute | Value |
|---|---|
| Body Material | ABS |
| External Length | 191 mm |
| External Height | 61 mm |
| External Width | 110 mm |
| External Dimensions | 191 x 110 x 61mm |
| IP Rating | IP54 |
| Range | 1591 |
| Flanged | No |
| Series | 1591 |
