Infineon IM818MCCXKMA1 MOSFET Gate Driver 24-Pin 18.5 V, DIP

View all Gate Drivers
Bulk discount available

Subtotal (1 unit)*

£23.40

(exc. VAT)

£28.08

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 14 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 1£23.40
2 - 4£21.06
5 - 9£19.65
10 - 24£18.49
25 +£17.09

*price indicative

Packaging Options:
Sponsored
Infineon MOSFET IPW60R170CFD7XKSA1
Infineon Logo
Unlock Peak Performance with Infineon Gate Drivers & MOSFETs – A Perfect Match
Looking to push your power design further? Pair your Infineon gate driver with Infineon MOSFETs for seamless compatibility, optimal switching efficiency, and reduced design complexity. Engineered to work together, this combination delivers robust thermal performance and reliable operation across demanding applications.
Shop Now
RS Stock No.:
226-6138
Mfr. Part No.:
IM818MCCXKMA1
Brand:
Infineon
Find similar products by selecting one or more attributes.
Select all

Brand

Infineon

Product Type

MOSFET

Pin Count

24

Package Type

DIP

Fall Time

100ns

Number of Outputs

4

Driver Type

MOSFET

Rise Time

45ns

Minimum Supply Voltage

18.5V

Maximum Supply Voltage

18.5V

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

150°C

Standards/Approvals

No

Width

22.7 mm

Height

8.1mm

Series

IM818-MCC

Length

36mm

Mount Type

Through Hole

Automotive Standard

No

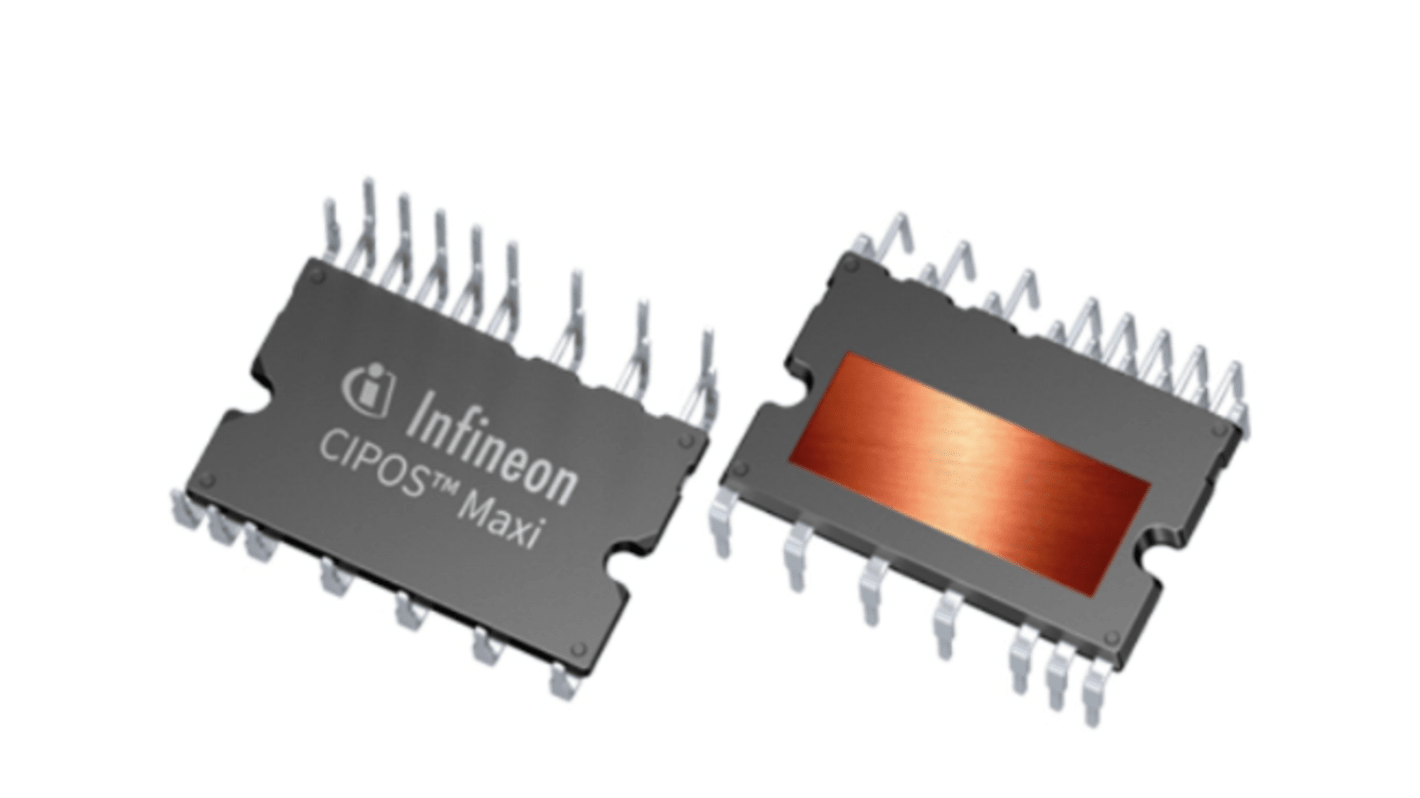

The Infineon CIPOS maxi IM818 product group offers the chance for integrating various power and control component to increase reliability, optimize PCB size and system costs. It is designed to control three phase AC motor and permanent magnet motor in variable speed drives application such as low power motor drives (GPI, Servo drives), pumps, fan drives and active filter for HVAC(heating, ventilation, and air conditioning).

Integrated bootstrap functionality

Over current shutdown

Built-in NTC thermistor for temperature monitor

Under-voltage lockout at all channels

Fully isolated Dual In-Line molded module
