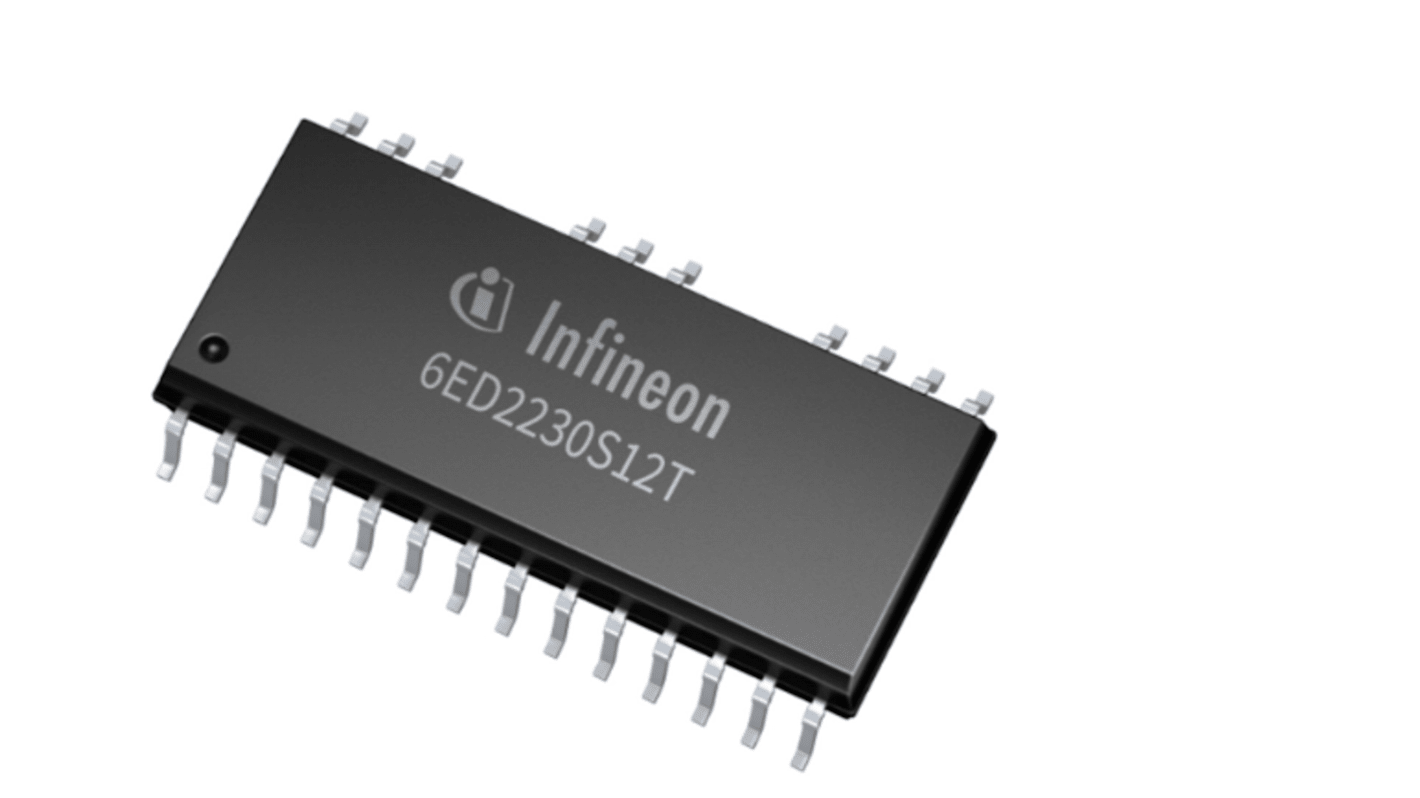

Infineon 6ED2230S12TXUMA1 MOSFET Gate Driver, 350 mA, 20V 24-Pin, PG-DSO

View all Gate Drivers

Subtotal (1 reel of 1000 units)*

£3,336.00

(exc. VAT)

£4,003.00

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 28 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Reel*
1000 +£3.336£3,336.00

*price indicative

RS Stock No.:
226-6039
Mfr. Part No.:
6ED2230S12TXUMA1
Brand:
Infineon
Find similar products by selecting one or more attributes.
Select all

Brand

Infineon

Output Current

350 mA

Supply Voltage

20V

Pin Count

24

Fall Time

20ns

Package Type

PG-DSO

Driver Type

MOSFET

The Infineon 6ED2230S12T is a high voltage, high speed IGBT with three independent high side and low side referenced output channels for three phase applications. Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction. The logic input is compatible with standard CMOS or TTL outputs, down to 3.3 V logic. An over‐current protection function which terminates all six outputs can also be derived from this resistor.

Fully operational to +1200 V
Integrated Ultra‐fast Bootstrap Diode
Floating channel designed for bootstrap operation
Output source/sink current capability +0.35 A/‐0.65 A
