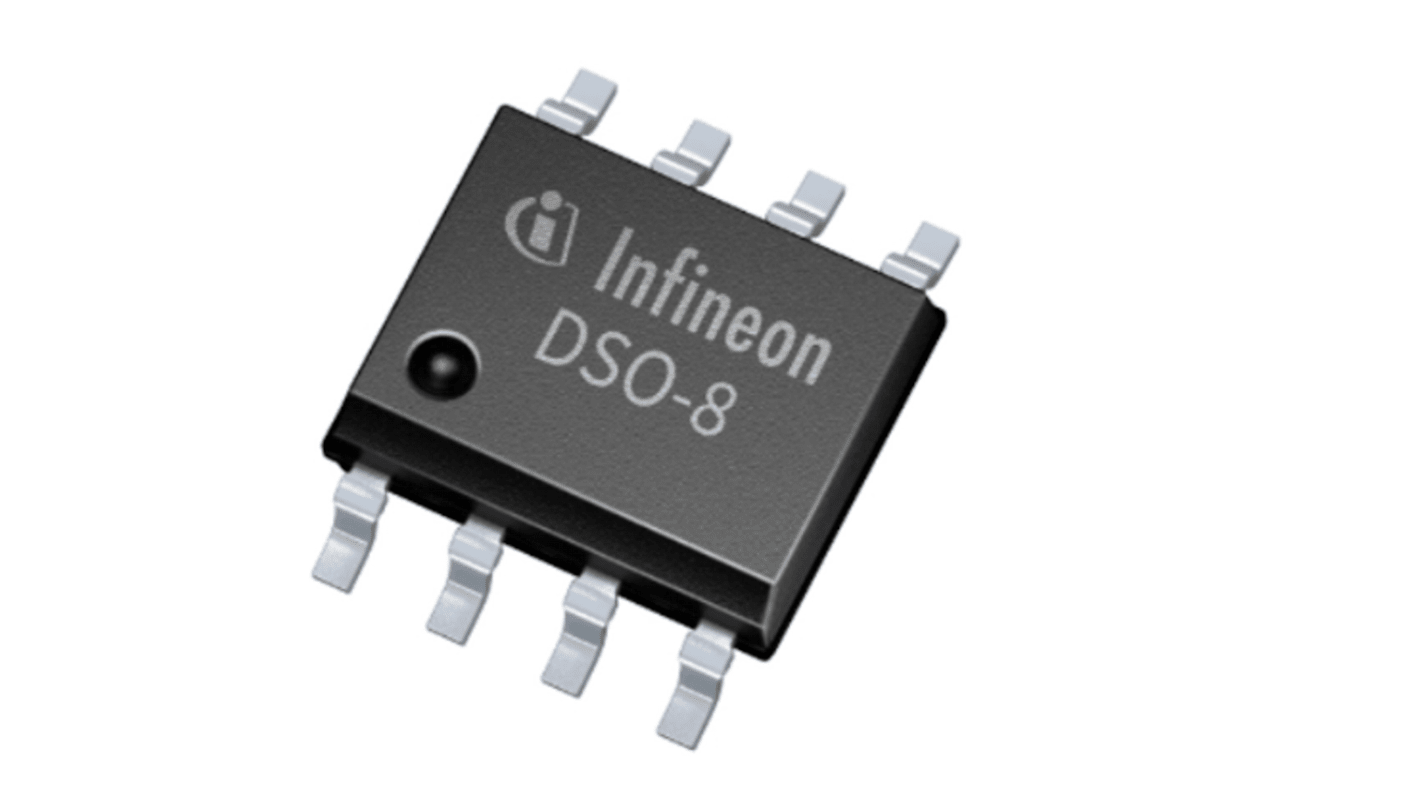

Infineon 2ED2106S06FXUMA1 MOSFET Gate Driver 2, 290 mA 8-Pin 20 V, DSO

View all Gate Drivers
Bulk discount available

Subtotal (1 pack of 10 units)*

£5.07

(exc. VAT)

£6.08

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 2,380 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
10 - 40£0.507£5.07
50 - 90£0.482£4.82
100 - 240£0.461£4.61
250 - 490£0.441£4.41
500 +£0.411£4.11

*price indicative

Packaging Options:
RS Stock No.:
226-6020
Mfr. Part No.:
2ED2106S06FXUMA1
Brand:
Infineon
Find similar products by selecting one or more attributes.
Select all

Brand

Infineon

Product Type

MOSFET

Output Current

290mA

Pin Count

8

Fall Time

80ns

Package Type

DSO

Driver Type

MOSFET

Number of Outputs

2

Rise Time

100ns

Minimum Supply Voltage

20V

Maximum Supply Voltage

20V

Number of Drivers

2

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

125°C

Series

2ED2106S06F

Length

4.9mm

Width

3.9 mm

Standards/Approvals

No

Height

1.72mm

Mount Type

Surface

Automotive Standard

No

The Infineon 2ED2106S06F is a high voltage, high speed power MOSFET and IGBT driver with independent high and low side referenced output channels. It is based on SOI-technology there is an excellent ruggedness and noise immunity with capability to maintain operational logic at negative voltages of up to - 11 Von VS pin on transient voltage. The output drivers feature a high pulse current buffer stage designed for minimum driver cross-conduction.

Floating channel designed for bootstrap operation

Operating voltages (VS node) upto + 650 V

Maximum bootstrap voltage (VB node) of + 675 V

Integrated ultra-fast, low resistance bootstrap diode
