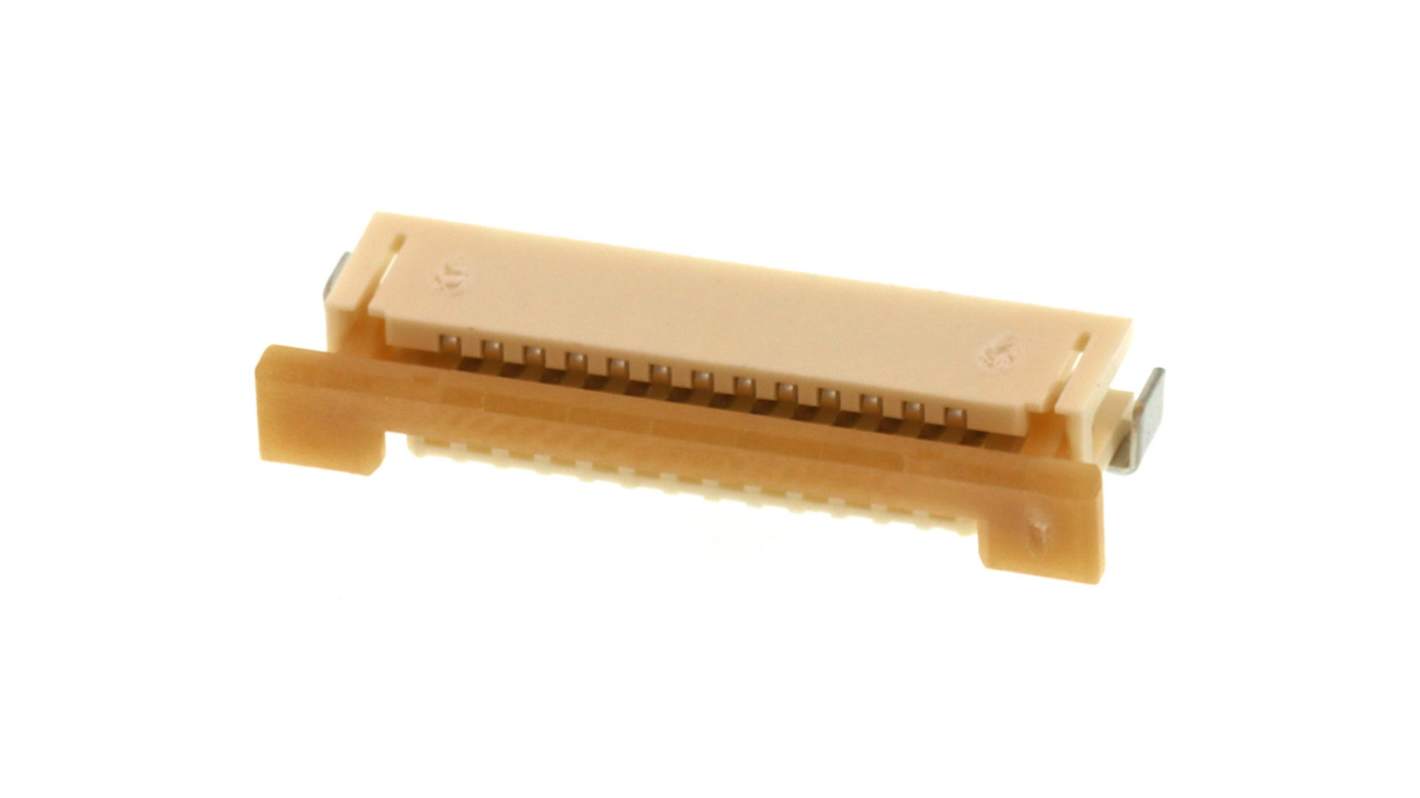

Molex, 52271-1379 1 mm Pitch 13 Way Right Angle FPC Connector, Bottom
- RS Stock No.:
- 480-856
- Distrelec Article No.:
- 304-56-647
- Mfr. Part No.:
- 52271-1379
- Brand:
- Molex
Subtotal (1 reel of 1000 units)*
£481.78
(exc. VAT)
£578.14
(inc. VAT)
Add 1 reel to get free delivery
Temporarily out of stock
- Shipping from 13 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per unit* |
|---|---|---|
| 1 + | £481.78 | £0.482 |
*price indicative
- RS Stock No.:
- 480-856
- Distrelec Article No.:
- 304-56-647
- Mfr. Part No.:
- 52271-1379
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Product Type | FPC Connector | |
| Number of Contacts | 13 | |
| Contact Material | Phosphor Bronze | |
| Pitch | 1mm | |
| Current | 0.5A | |
| Mount Type | Surface Mount | |
| Termination Type | Bottom | |
| Contact Position | Bottom | |
| Orientation | Right Angle | |
| Locking Mechanism | Yes | |
| Voltage | 5 V | |
| Series | 52271-1379 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | CSA LR19980, UL E29179 | |
| Contact Plating | Tin Bismuth | |
| Housing Material | Nylon | |
| Select all | ||
|---|---|---|
Brand Molex | ||
Product Type FPC Connector | ||
Number of Contacts 13 | ||
Contact Material Phosphor Bronze | ||
Pitch 1mm | ||
Current 0.5A | ||
Mount Type Surface Mount | ||
Termination Type Bottom | ||
Contact Position Bottom | ||
Orientation Right Angle | ||
Locking Mechanism Yes | ||
Voltage 5 V | ||
Series 52271-1379 | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals CSA LR19980, UL E29179 | ||
Contact Plating Tin Bismuth | ||
Housing Material Nylon | ||
- COO (Country of Origin):
- JP
The TE Connectivity Easy-on FFC/FPC connector represents a significant advancement in connectivity solutions. Designed with a 1.00mm pitch and featuring a slider mechanism, this right-angle connector ensures secure connections in compact spaces. Its innovative design allows for seamless integration into various applications, enhancing the performance of electronic devices. Built to meet stringent environmental compliance standards, including EU RoHS, this connector guarantees reliability and longevity. With a maximum operating temperature of 85°C, it is suitable for diverse operating conditions. The connector's robust construction, incorporating tin-bismuth plating for durability, makes it ideal for high-cycle applications, providing peace of mind for engineers and designers alike.
Maximum operating temperature of 85°C for versatile usage
Constructed with durable materials for long-lasting performance
Designed to accommodate up to 13 circuits efficiently
Offers an embossed tape on reel packaging for ease of handling
Supports surface mount PCB mounting for streamlined integration
Features polarized connections for enhanced reliability
