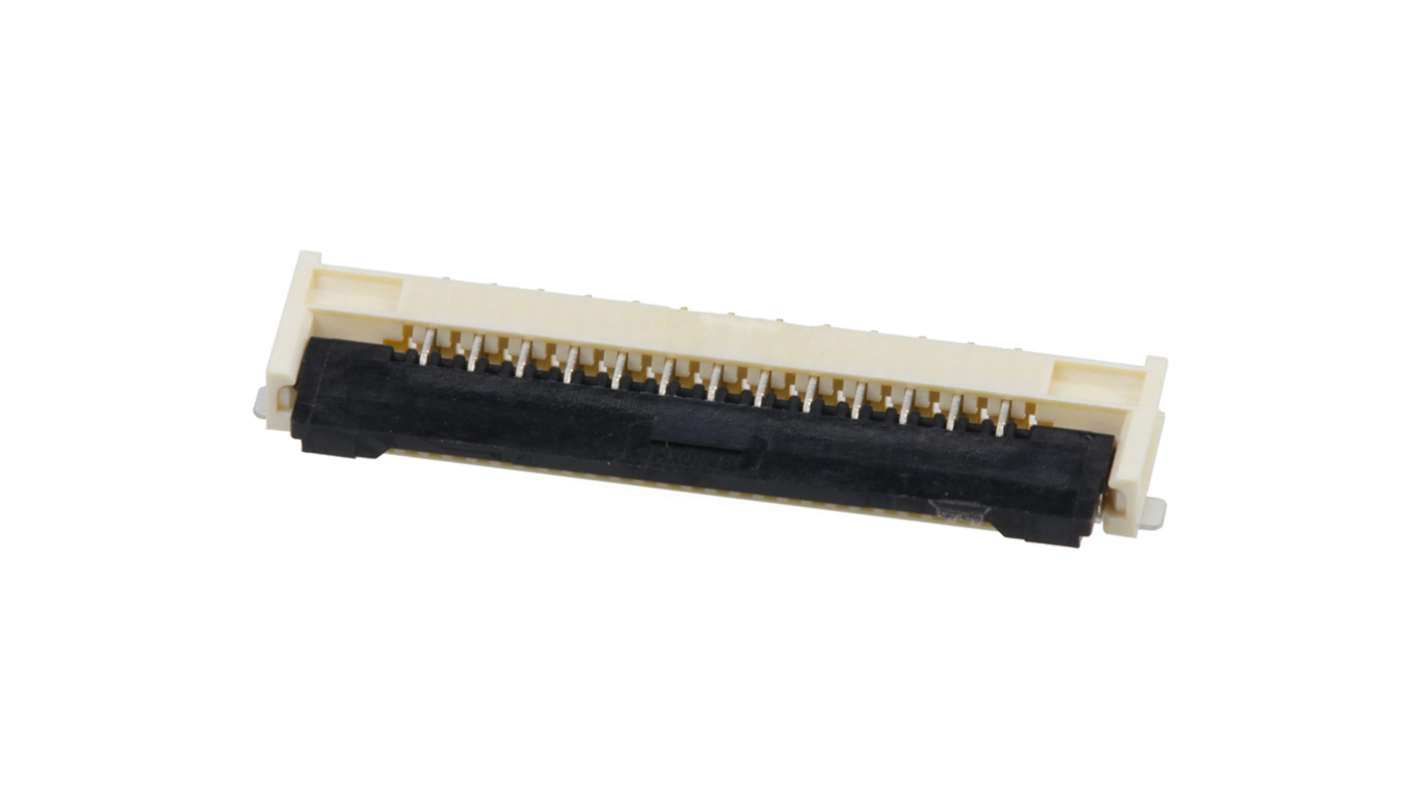

Molex, 2005, 200528-0131 1mm Pitch 13 Way Right Angle FPC Connector, Bottom Contact
- RS Stock No.:
- 684-949
- Mfr. Part No.:
- 200528-0131
- Brand:
- Molex
Subtotal (1 reel of 3000 units)*
£5,466.52
(exc. VAT)
£6,559.82
(inc. VAT)
Stock information currently inaccessible
Reel(s) | Per Reel | Per unit* |
---|---|---|
1 + | £5,466.52 | £1.822 |
*price indicative
- RS Stock No.:
- 684-949
- Mfr. Part No.:
- 200528-0131
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Molex | |
Number of Contacts | 13 | |
Contact Material | Copper Alloy | |
Pitch | 1mm | |
Mounting Type | Surface Mount | |
Termination Type | Bottom Contact | |
Body Orientation | Right Angle | |
Series | 2005 | |
Series Number | 200528-0131 | |
Select all | ||
---|---|---|
Brand Molex | ||
Number of Contacts 13 | ||
Contact Material Copper Alloy | ||
Pitch 1mm | ||
Mounting Type Surface Mount | ||
Termination Type Bottom Contact | ||
Body Orientation Right Angle | ||
Series 2005 | ||
Series Number 200528-0131 | ||
- COO (Country of Origin):
- VN
The Molex Easy-On FFC/FPC Connector is a top-tier interconnect solution designed for applications that demand reliable performance in tight spaces. Ideal for circuit applications, this connector offers a compact, right-angled design that enables efficient PCB integration. With a pitch of 1.00mm and a robust structure, the connector supports 13 circuits while maintaining a maximum operating temperature of 150°C. Its gold over nickel plating ensures excellent electrical conductivity and durability, making it a solid choice for high-performance devices.
Compact design enables space saving solutions for circuit applications
Right angle configuration facilitates easy PCB integration
Supports up to 13 circuits for versatile connectivity
Gold over nickel plating provides superior conductivity and corrosion resistance
Durable construction withstands up to 20 mating cycles for long term use
Front flip actuator type ensures ease of use and secure connections
Constructed from liquid crystal polymer for high thermal and chemical resilience
Surface mount packaging type optimises circuit layout efficiency
Low halogen compliance reflects commitment to environmentally friendly practices
Right angle configuration facilitates easy PCB integration
Supports up to 13 circuits for versatile connectivity
Gold over nickel plating provides superior conductivity and corrosion resistance
Durable construction withstands up to 20 mating cycles for long term use
Front flip actuator type ensures ease of use and secure connections
Constructed from liquid crystal polymer for high thermal and chemical resilience
Surface mount packaging type optimises circuit layout efficiency
Low halogen compliance reflects commitment to environmentally friendly practices
