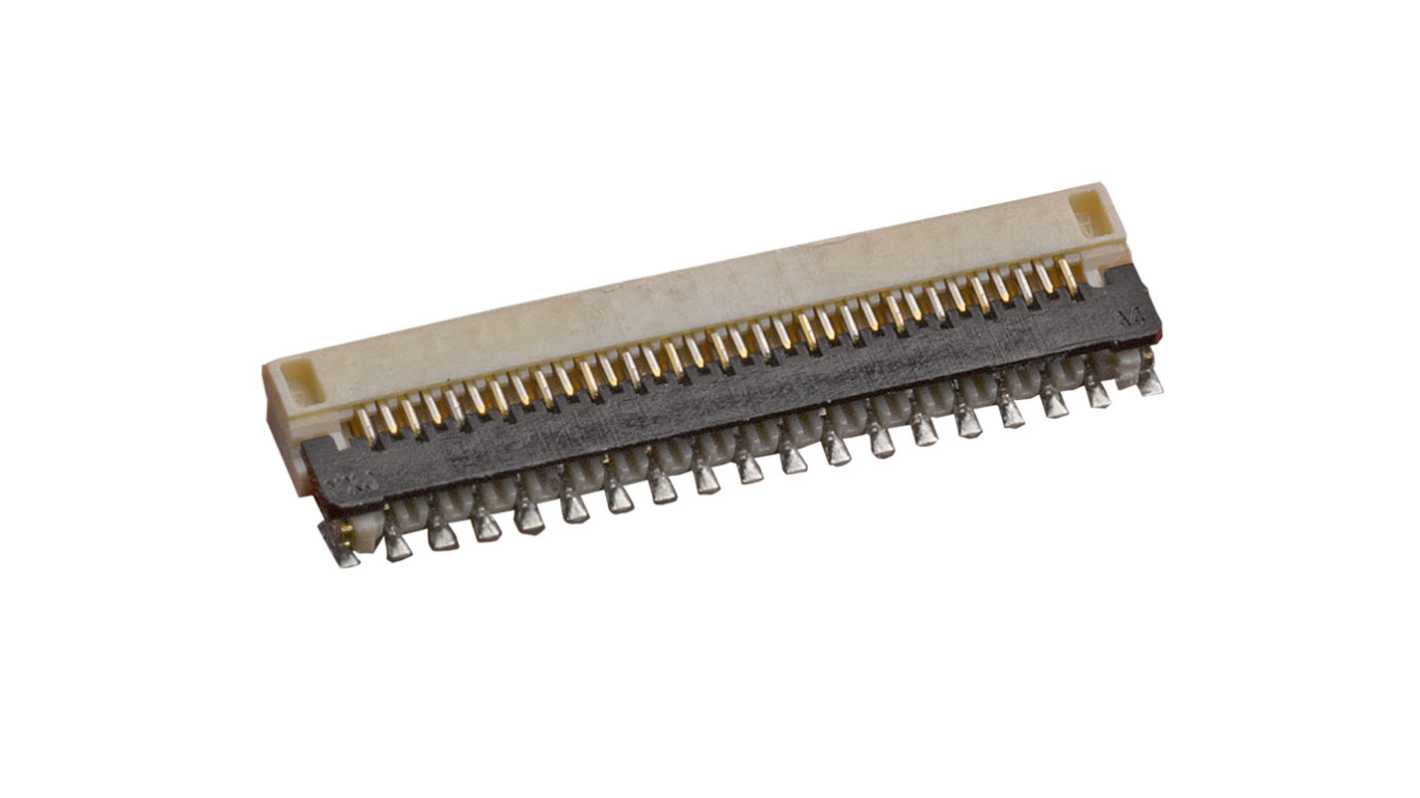

Molex, 503566, 503566-1302 0.3mm Pitch 13 Way Right Angle FPC Connector
- RS Stock No.:
- 478-201
- Mfr. Part No.:
- 503566-1302
- Brand:
- Molex
Subtotal (1 reel of 6000 units)*
£3,799.13
(exc. VAT)
£4,558.96
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 01 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per unit* |
---|---|---|
1 + | £3,799.13 | £0.633 |
*price indicative
- RS Stock No.:
- 478-201
- Mfr. Part No.:
- 503566-1302
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Molex | |
Number of Contacts | 13 | |
Contact Material | Phosphor Bronze | |
Pitch | 0.3mm | |
Mounting Type | Surface Mount | |
Body Orientation | Right Angle | |
Series | 503566 | |
Series Number | 503566-1302 | |
Select all | ||
---|---|---|
Brand Molex | ||
Number of Contacts 13 | ||
Contact Material Phosphor Bronze | ||
Pitch 0.3mm | ||
Mounting Type Surface Mount | ||
Body Orientation Right Angle | ||
Series 503566 | ||
Series Number 503566-1302 | ||
- COO (Country of Origin):
- JP
The TE Connectivity connector represents a pinnacle of design for precision and reliability in electronic assemblies. Meticulously crafted with a 0.30mm pitch, it seamlessly integrates into compact spaces while providing robust connectivity. Featuring a right-angle configuration and bottom contact design, this connector is optimised for FPC applications, ensuring ease of installation and superior performance. With a sturdy 0.95mm height and a gold over nickel plating, it delivers long-lasting durability and impeccable signal integrity. Designed to thrive in demanding environments, it withstands operating temperatures ranging from -40° to +105°C, making it an ideal choice for various applications. This connector embodies the perfect blend of functionality and innovation, catering to the needs of modern electronics.
Optimised for easy installation in tight spaces
Durability guaranteed with a maximum mating cycles of 10
Low-halogen materials enhance environmental compliance
Designed for superior electrical performance with a maximum voltage rating of 50V
Constructed from high-quality phosphor bronze for improved conductivity
Front flip actuator type for straightforward operation
Compatible with 0.30mm Pitch Premo-Flex FPC for versatile applications
Embossed tape on reel packaging simplifies handling and storage
Well-suited for a variety of innovative electronic designs
Durability guaranteed with a maximum mating cycles of 10
Low-halogen materials enhance environmental compliance
Designed for superior electrical performance with a maximum voltage rating of 50V
Constructed from high-quality phosphor bronze for improved conductivity
Front flip actuator type for straightforward operation
Compatible with 0.30mm Pitch Premo-Flex FPC for versatile applications
Embossed tape on reel packaging simplifies handling and storage
Well-suited for a variety of innovative electronic designs
