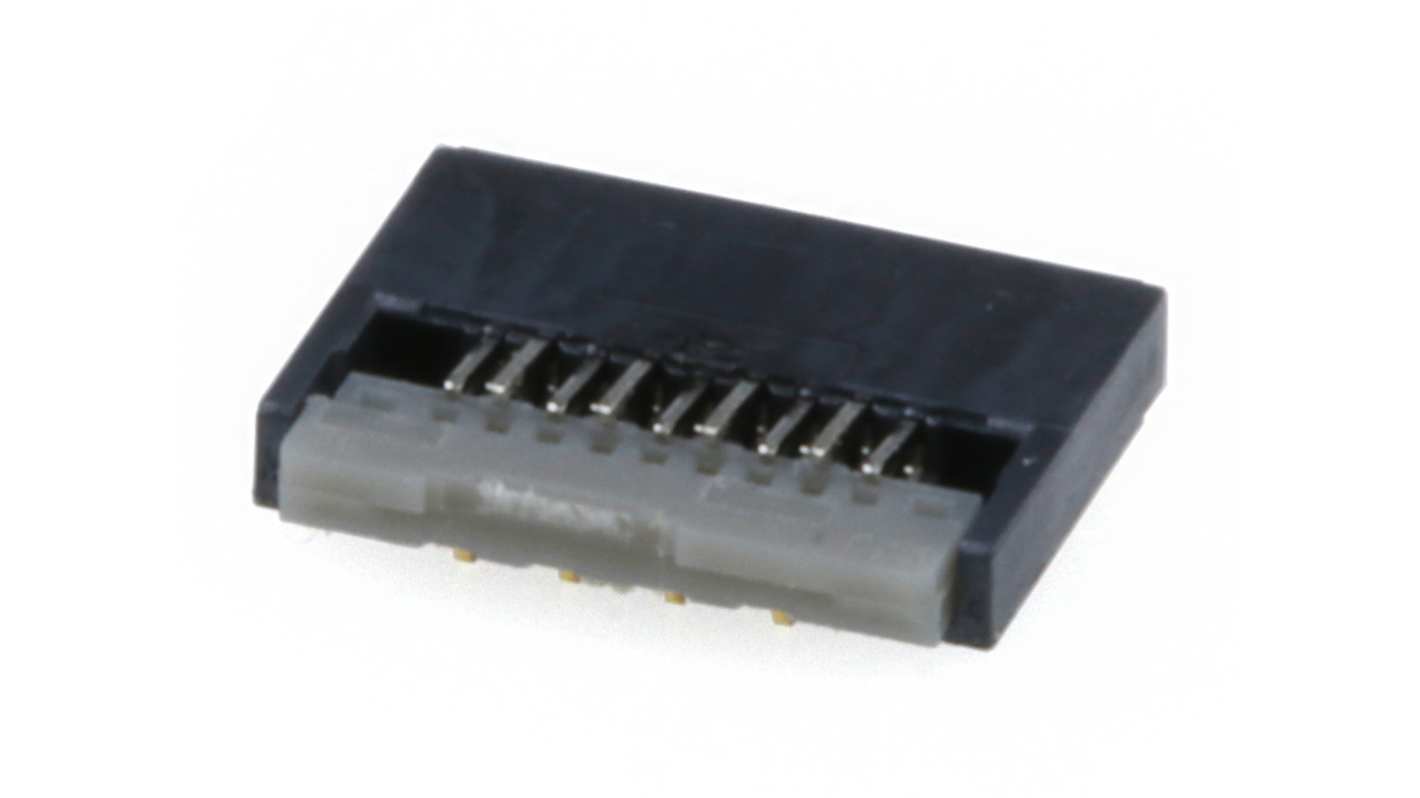

Molex, 504754-0920 0.3 mm Pitch 9 Way Right Angle FPC Connector
- RS Stock No.:
- 478-240
- Distrelec Article No.:
- 304-56-529
- Mfr. Part No.:
- 504754-0920
- Brand:
- Molex
Subtotal (1 reel of 5000 units)*
£1,782.57
(exc. VAT)
£2,139.08
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 16 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per unit* |
|---|---|---|
| 1 + | £1,782.57 | £0.357 |
*price indicative
- RS Stock No.:
- 478-240
- Distrelec Article No.:
- 304-56-529
- Mfr. Part No.:
- 504754-0920
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Product Type | FPC Connector | |
| Number of Contacts | 9 | |
| Contact Material | Phosphor Bronze | |
| Pitch | 0.3mm | |
| Current | 0.3A | |
| Mount Type | Surface Mount | |
| Contact Position | Dual | |
| Orientation | Right Angle | |
| Voltage | 5 V | |
| Minimum Operating Temperature | -40°C | |
| Series | 504754-0920 | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | EU RoHS, IEC 61249-2-21, IEC-62474, IPC 1752A, REACH SVHC | |
| Contact Plating | Gold | |
| Housing Material | Liquid Crystal Polymer | |
| Select all | ||
|---|---|---|
Brand Molex | ||
Product Type FPC Connector | ||
Number of Contacts 9 | ||
Contact Material Phosphor Bronze | ||
Pitch 0.3mm | ||
Current 0.3A | ||
Mount Type Surface Mount | ||
Contact Position Dual | ||
Orientation Right Angle | ||
Voltage 5 V | ||
Minimum Operating Temperature -40°C | ||
Series 504754-0920 | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals EU RoHS, IEC 61249-2-21, IEC-62474, IPC 1752A, REACH SVHC | ||
Contact Plating Gold | ||
Housing Material Liquid Crystal Polymer | ||
- COO (Country of Origin):
- JP
The TE Connectivity connector exemplifies innovation in design and functionality. Specifically crafted for seamless integration, it features a 0.30mm pitch that ensures space efficiency without compromising performance. The back flip design provides a reliable interface while maintaining a low profile, making it ideal for tight applications. Built for durability with a maximum mating cycle of 10, it offers both mechanical and electrical stability across a wide operating temperature range of -40° to +105°C. This product caters to diverse connectivity needs, ensuring compliance with industry standards and regulations, suitable for various applications including FPC-only environments. Designed as part of the LA75 series, it enhances user experience through its dual contact style and right-angle configuration, facilitating easier connections in compact spaces.
Optimised for FPC-only connections, ensuring specific application adherence
Dual contact style enhances electrical performance and reliability
Surface mount design simplifies assembly and integration on PCBs
Low-halogen materials ensure environmental compliance without sacrificing quality
Offers a compact right-angle profile to fit in space-restricted areas
Durable copper alloy contacts with gold plating increase longevity
Embossed tape on reel packaging streamlines the logistics and handling
Guaranteed compatibility with RoHS, REACH, and other environmental regulations
