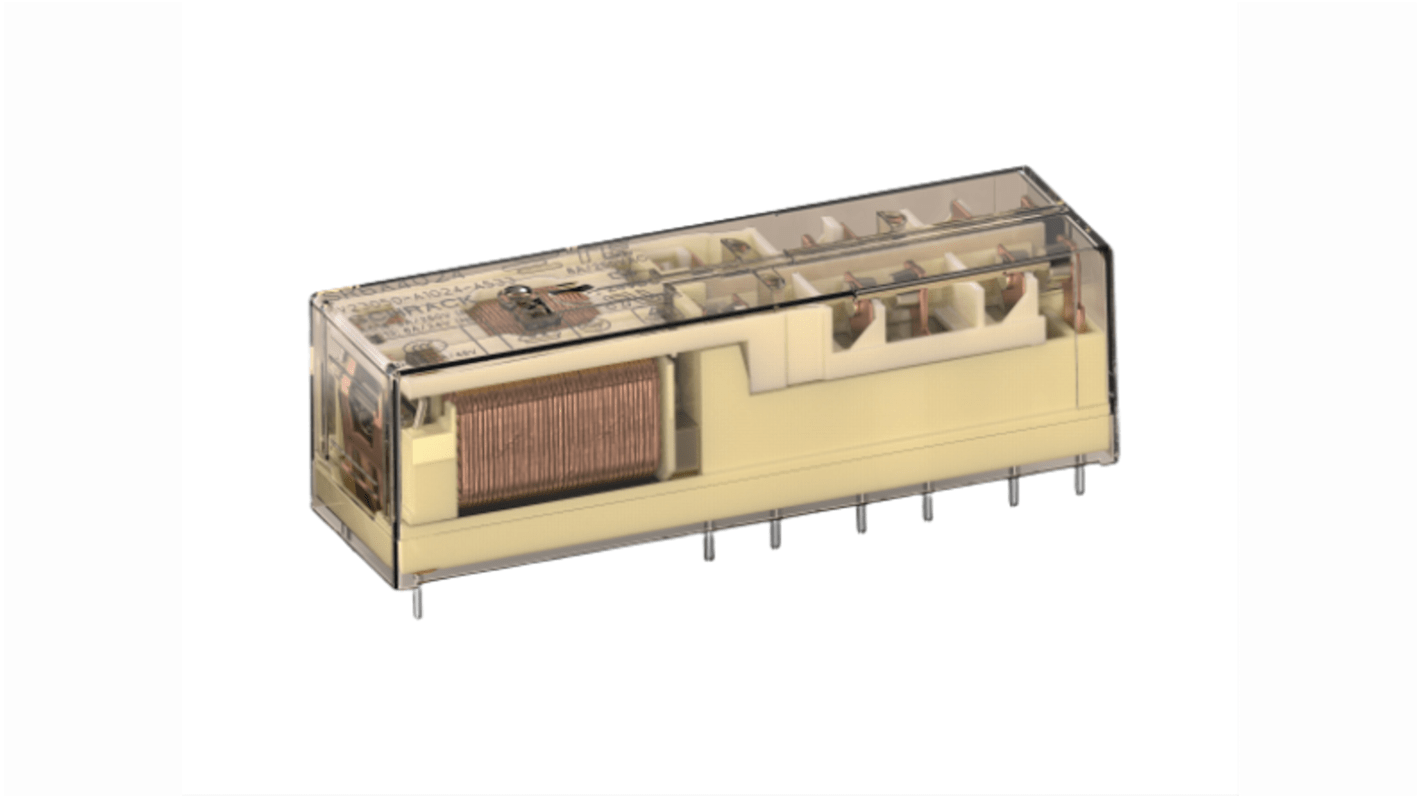

TE Connectivity PCB Mount Force Guided Relay, 24V dc Coil Voltage, 6 Pole, 3PDT
- RS Stock No.:
- 276-3878
- Mfr. Part No.:
- V23050A1012A533 1415015-1
- Brand:
- TE Connectivity
Bulk discount available
Subtotal (1 unit)*
£23.99
(exc. VAT)
£28.79
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 23 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £23.99 |
| 5 + | £22.99 |
*price indicative
- RS Stock No.:
- 276-3878
- Mfr. Part No.:
- V23050A1012A533 1415015-1
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Coil Voltage | 24V dc | |
| Mounting Type | PCB Mount | |
| Contact Configuration | 3PDT | |
| Number of Poles | 6 | |
| Coil Resistance | 480 Ω | |
| Switching Current | 8A | |
| Coil Power | 1.2W | |
| Maximum Switching Voltage AC | 400V ac | |
| Terminal Type | Through Hole | |
| Approvals | CCC 2020970303000302, TUV 968/EL 350, UL E214025, VDE Cert. No. 128935 | |
| Height | 16.5mm | |
| Minimum Operating Temperature | -25°C | |
| Length | 55mm | |
| Maximum Operating Temperature | +70°C | |
| Depth | 16.5mm | |
| Contact Material | Silver Alloy | |
| Series | SCHRACK SR6 | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Coil Voltage 24V dc | ||
Mounting Type PCB Mount | ||
Contact Configuration 3PDT | ||
Number of Poles 6 | ||
Coil Resistance 480 Ω | ||
Switching Current 8A | ||
Coil Power 1.2W | ||
Maximum Switching Voltage AC 400V ac | ||
Terminal Type Through Hole | ||
Approvals CCC 2020970303000302, TUV 968/EL 350, UL E214025, VDE Cert. No. 128935 | ||
Height 16.5mm | ||
Minimum Operating Temperature -25°C | ||
Length 55mm | ||
Maximum Operating Temperature +70°C | ||
Depth 16.5mm | ||
Contact Material Silver Alloy | ||
Series SCHRACK SR6 | ||
The TE Connectivity SCHRACK Force-Guided Power Relay of SR6 series are essentially electrically operated electromechanical switches that control the flow of current in a circuit.
Well suited for emergency shut off
Sensitive Performance
Sensitive Performance
