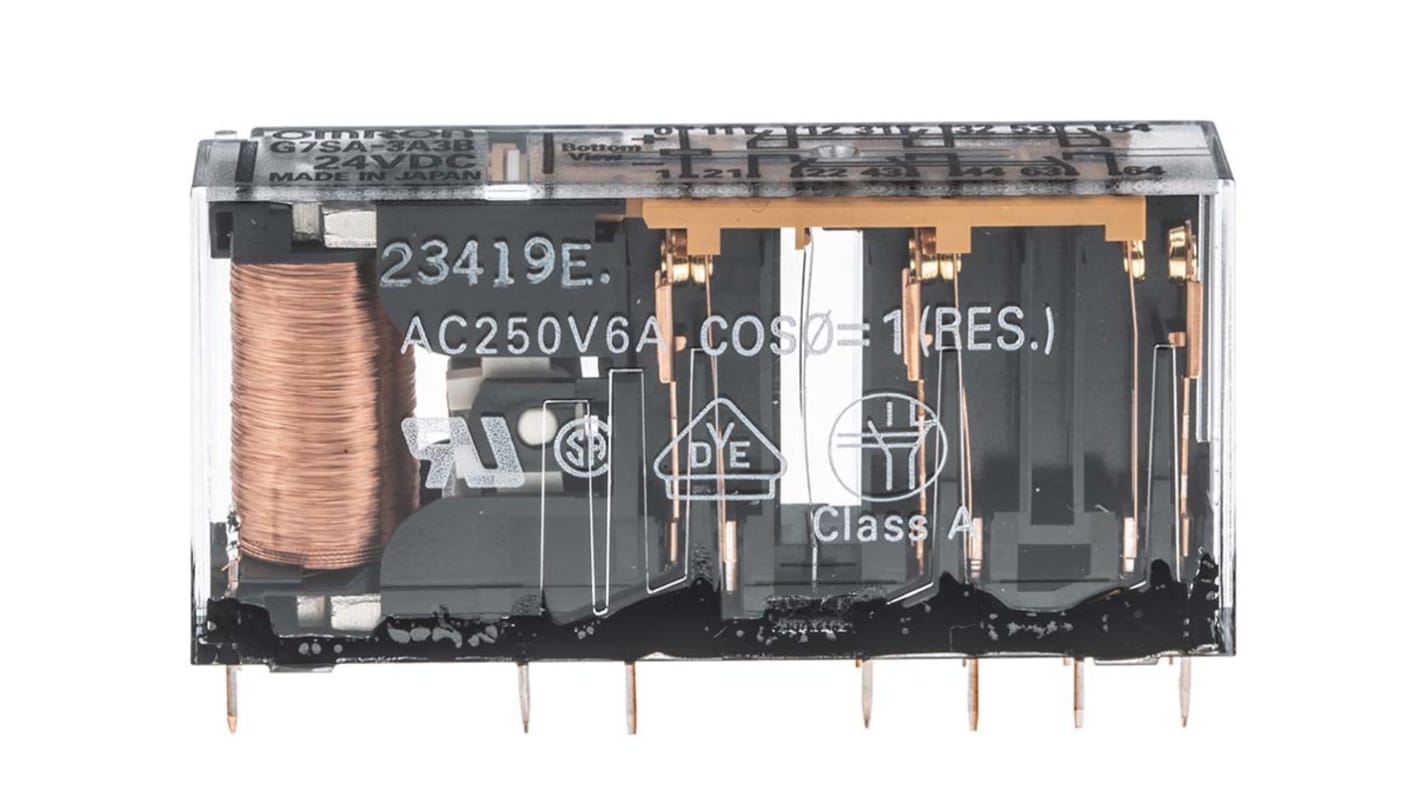

Omron PCB Mount Force Guided Relay, 24V dc Coil Voltage, 6 Pole, 3PDT
- RS Stock No.:
- 548-032
- Mfr. Part No.:
- G7SA-3A3B 24VDC
- Brand:
- Omron
Bulk discount available
Subtotal (1 unit)*
£36.55
(exc. VAT)
£43.86
(inc. VAT)
FREE delivery for orders over £50.00
Limited stock
- 59 left, ready to ship
- Plus 16 left, ready to ship from another location
- Plus 129 left, shipping from 28 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £36.55 |
5 - 9 | £35.46 |
10 + | £33.94 |
*price indicative
- RS Stock No.:
- 548-032
- Mfr. Part No.:
- G7SA-3A3B 24VDC
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Omron | |
Coil Voltage | 24V dc | |
Mounting Type | PCB Mount | |
Contact Configuration | 3PDT | |
Number of Poles | 6 | |
Coil Resistance | 1.152 kΩ | |
Switching Current | 6A | |
Maximum Switching Current AC | 6 A | |
Coil Power | 800mW | |
Maximum Switching Current DC | 6 A | |
Maximum Switching Voltage DC | 125V | |
Maximum Switching Voltage AC | 250V | |
Terminal Type | Through Hole | |
Approvals | CSA, UL | |
Standards Met | CQC, CSA, UL | |
Depth | 13mm | |
Maximum Operating Temperature | +85°C | |
Series | G7S | |
Minimum Operating Temperature | -40°C | |
Life | 1000000 Cycles; 100000Cycles | |
Length | 50mm | |
Height | 24mm | |
Contact Material | Ag Alloy | |
Select all | ||
---|---|---|
Brand Omron | ||
Coil Voltage 24V dc | ||
Mounting Type PCB Mount | ||
Contact Configuration 3PDT | ||
Number of Poles 6 | ||
Coil Resistance 1.152 kΩ | ||
Switching Current 6A | ||
Maximum Switching Current AC 6 A | ||
Coil Power 800mW | ||
Maximum Switching Current DC 6 A | ||
Maximum Switching Voltage DC 125V | ||
Maximum Switching Voltage AC 250V | ||
Terminal Type Through Hole | ||
Approvals CSA, UL | ||
Standards Met CQC, CSA, UL | ||
Depth 13mm | ||
Maximum Operating Temperature +85°C | ||
Series G7S | ||
Minimum Operating Temperature -40°C | ||
Life 1000000 Cycles; 100000Cycles | ||
Length 50mm | ||
Height 24mm | ||
Contact Material Ag Alloy | ||
- COO (Country of Origin):
- JP
OMRON Force-Guided Relay, Reinforced Insulation, 6A Rated Carry Current - G7S Series - G7SA-3A3B DC24
Sync the movement of your switching mechanism using this force-guided relay from OMRON. It has multiple sets of linked contacts, all of which change state simultaneously. This prevents hazards caused by a contact partially opening or closing, leaving a dangerous process active when it shouldn't be. You'll find it's handy as a fail-safe solution in your interlock switches, emergency shutdown systems and light curtains. An operating time of 20ms and response time of 10ms accommodate rapid switching to change the contact's state in a jiffy.
Features & Benefits
• Reinforced insulation between input and output poles for reduced risk of hazards
• Handles 36,000 operations per hour for reliable performance and speedy switching
• Withstands challenging conditions, thanks to its resistance to shock and vibration
• Mechanical durability rating of 10 million cycles for long-lasting use
• Handles 36,000 operations per hour for reliable performance and speedy switching
• Withstands challenging conditions, thanks to its resistance to shock and vibration
• Mechanical durability rating of 10 million cycles for long-lasting use
Applications
• Oil and gas industry
• Medical equipment
• Railway infrastructure
• Medical equipment
• Railway infrastructure
How quickly does this relay return to its original state?
A 20ms release time indicates that this relay quickly returns to its resting state after the control signal is removed, so it's highly responsive to the demands of your safety-critical applications.
