Sauter FH 10UK Force Gauge 2000 Hz RS232, Range: FH, Resolution: 0.01 N

View all Force Gauges
Currently unavailable
Sorry, we don't know when this will be back in stock.
RS Stock No.:
181-1972
Mfr. Part No.:
FH 10UK
Brand:
Sauter
Find similar products by selecting one or more attributes.
Select all

Brand

Sauter

Product Type

Force Gauge

Accuracy

±0.5 %

Units Measured

lb, N, kN, t, kg

Resolution

0.01 N

Sampling Rate

2000Hz

Digital Output

RS232

Battery Life

12h

Battery Type

Rechargeable

Visual Alarm

Yes

Plug Type

Type G - British 3-Pin

Power Source

Battery

Weight

640g

Standards/Approvals

ISO

Height

230mm

Width

36 mm

Length

66mm

Series

FH

Calibrated

RSCAL

COO (Country of Origin):
CN

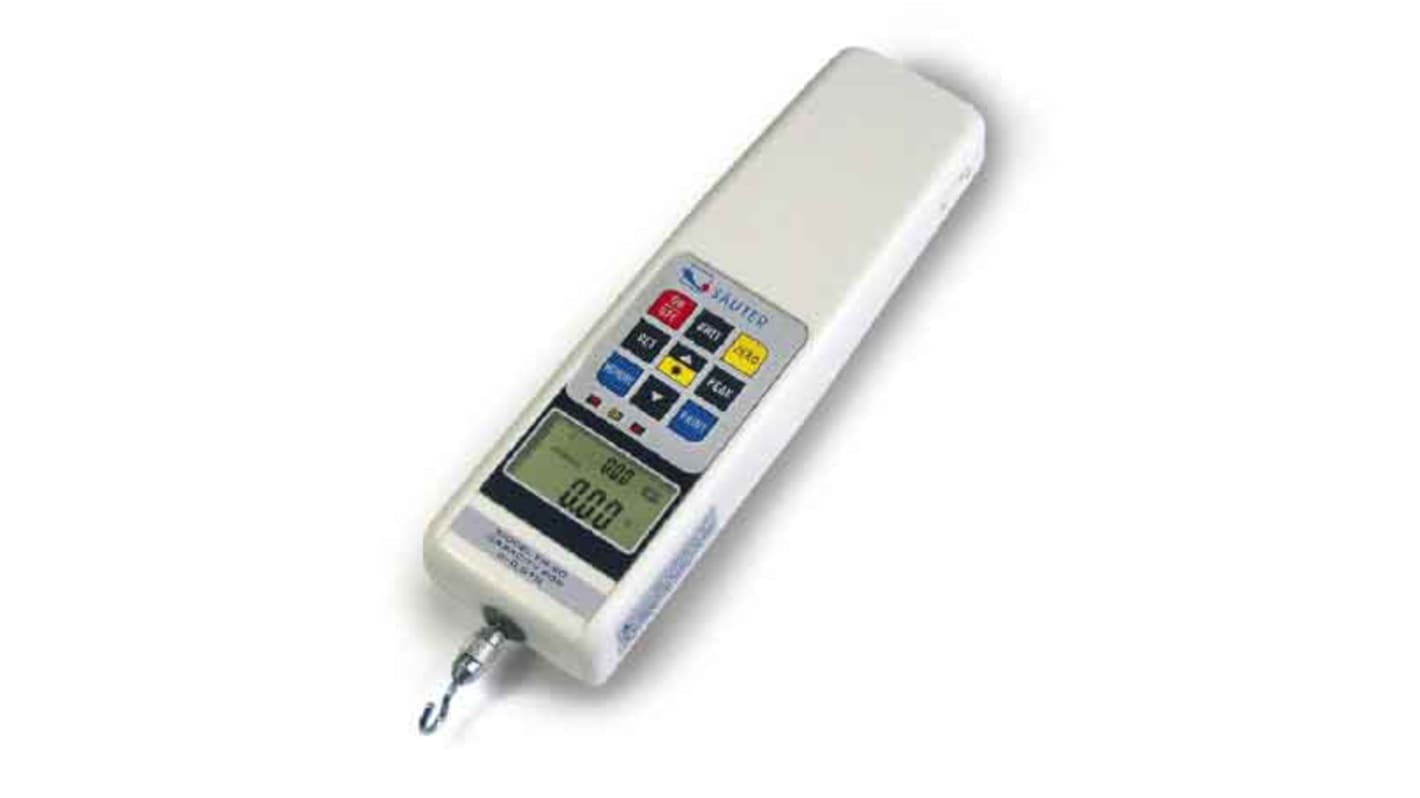

Sauter Force Gauge


The Sauter digital force gauge has a range of up to 10N. This gauge belongs to the Sauter FH series. It is a universal digital force gauge for tension and compression tests. This is lightweight and easy to carry. The gauge unit comes with rechargeable batteries and a charger with a hard carrying case.

Features and Benefits


• Turnable display with backlight

• Can be mounted on all the manual test stands

• Digital force gauge with an internal sensor

• Data interface RS-232 is included

• Standard attachments: as shown below, extension rod: 90mm

• Delivered in a hard carrying case

• Selectable measuring units: N, lb and kg

• Real-time or peak hold mode to observe transients or capture peaks

• Function to set limits, programming of maximum/minimum, in pull and push direction, with an output of audible and optical signal

• Ideal mode for efficient and accurate testing of standard parts

• Auto power OFF

• Mini statistics kit: Calculates the average result from up to 10 stored single results

Applications


• Material force testing

• Quality control and assurance

• Spring testing

• Opening force testing

• Switch force activation
