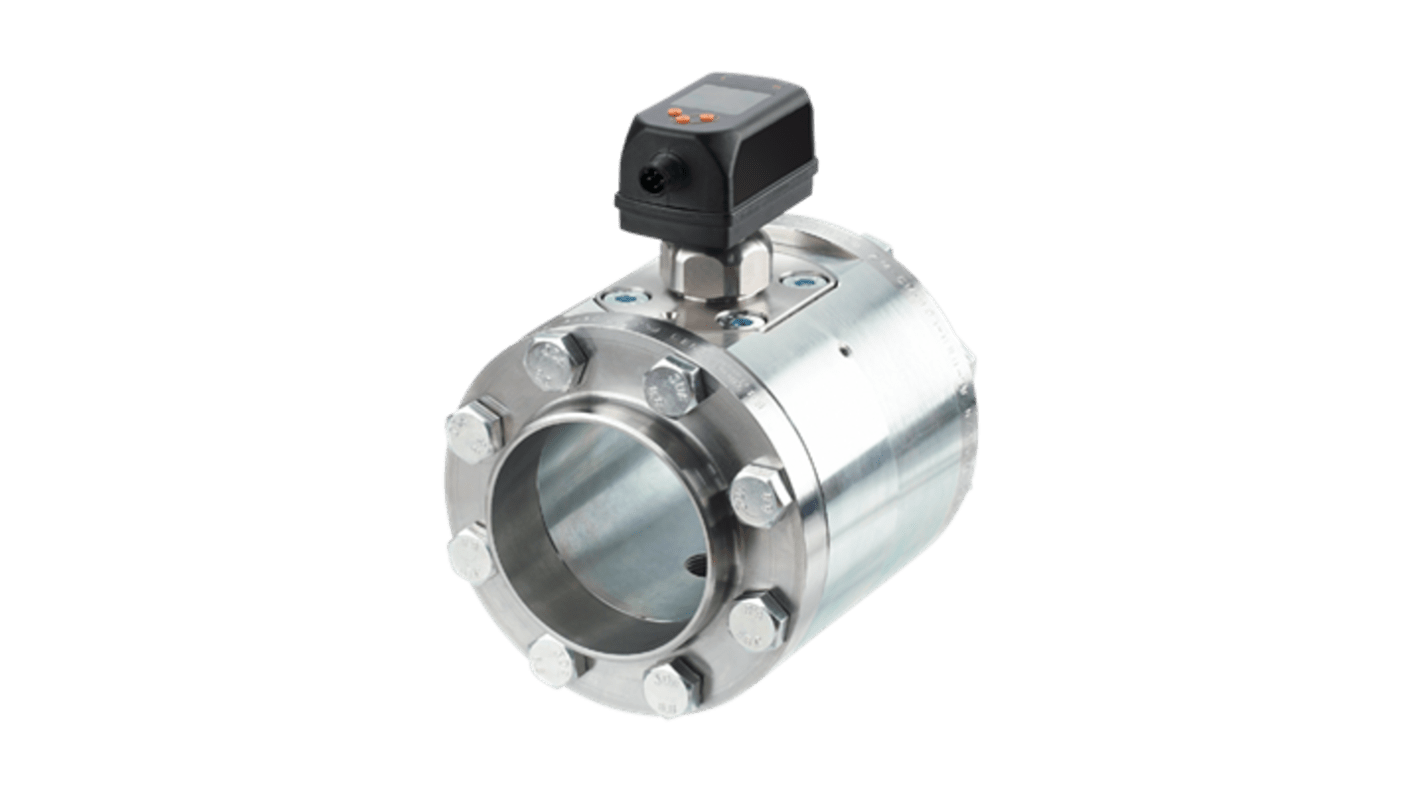

ifm electronic SDG750 Series Compressed Air Meter Flow Meter for Air, 0.6m/s Min, 143.9m/s Max

View all Flow Sensors

Subtotal (1 unit)*

£3,446.06

(exc. VAT)

£4,135.27

(inc. VAT)

Add to Basket
Select or type quantity
Stocked by manufacturer
  • Ready to ship from 27 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£3,446.06

*price indicative

RS Stock No.:
596-754
Mfr. Part No.:
SDG750
Brand:
ifm electronic
Find similar products by selecting one or more attributes.
Select all

Brand

ifm electronic

Product Type

Flow Meter

Media Monitored

Air

Device Type

Compressed Air Meter

Minimum Flow Rate

0.6m/s

Maximum Flow Rate

143.9m/s

Housing Material

40% Fibreglass, Polyphenylene Sulphide, 316L Stainless Steel, Fluorelastomer, 303 Stainless Steel, 304 Stainless Steel, Glass Filled Polybutylene Terephthalate

Connection Type

Flange DN150

Maximum Pressure

1.6MPa

IP Rating

IP67, IP65

Minimum Media Temperature

-20°C

Maximum Supply Voltage

30V dc

Minimum Operating Temperature

0°C

Maximum Media Temperature

100°C

Maximum Operating Temperature

60°C

Standards/Approvals

DIN EN 68000-2-6, DIN EN 60947-5-9

Series

SDG750

Current Rating

150mA

COO (Country of Origin):
DE
The ifm electronic compressed air meter is precisely engineered for industrial applications, designed to monitor compressed air with exceptional accuracy. It features a measuring range of 0.6 to 143.9 m/s and supports a variety of process connections, making it versatile for many setups. Its robust design, including stainless steel materials, ensures durable performance, while IP65 and IP67 protection ratings provide resilience against environmental factors. The meter is equipped with advanced electrical specifications, including reverse polarity protection and a maximum current consumption of less than 80 mA. With clear displays and a user-friendly interface, the device simplifies monitoring of compressed air parameters effectively.

Integrated display with a resolution of 128 x 128 pixels for clear readouts

Configurable output signals, including PNP/NPN and pulse signals for versatile applications

Measured and display ranges support detailed monitoring of various parameters

Pressure monitoring capabilities with adjustable set and reset points for enhanced accuracy
