ifm electronic SF3405 Series Flow Sensor Flow Sensor for Liquid, 3cm/s Min, 60cm/s Max
- RS Stock No.:
- 596-414
- Mfr. Part No.:
- SF3405
- Brand:
- ifm electronic
Subtotal (1 unit)*
£312.91
(exc. VAT)
£375.49
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 26 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £312.91 |
*price indicative
- RS Stock No.:
- 596-414
- Mfr. Part No.:
- SF3405
- Brand:
- ifm electronic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ifm electronic | |
| Product Type | Flow Sensor | |
| Media Monitored | Liquid | |
| Device Type | Flow Sensor | |
| Minimum Flow Rate | 3cm/s | |
| Maximum Flow Rate | 60cm/s | |
| Housing Material | Ceramics (99.7% Al2O3) | |
| Connection Type | G 1/2 External Thread | |
| Maximum Pressure | 3MPa | |
| IP Rating | IP67 | |
| Minimum Media Temperature | -20°C | |
| Maximum Media Temperature | 100°C | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 70°C | |
| Series | SF3405 | |
| Standards/Approvals | DIN IEC 68-2-6, DIN IEC 68-2-27 | |
| Select all | ||
|---|---|---|
Brand ifm electronic | ||
Product Type Flow Sensor | ||
Media Monitored Liquid | ||
Device Type Flow Sensor | ||
Minimum Flow Rate 3cm/s | ||
Maximum Flow Rate 60cm/s | ||
Housing Material Ceramics (99.7% Al2O3) | ||
Connection Type G 1/2 External Thread | ||
Maximum Pressure 3MPa | ||
IP Rating IP67 | ||
Minimum Media Temperature -20°C | ||
Maximum Media Temperature 100°C | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 70°C | ||
Series SF3405 | ||
Standards/Approvals DIN IEC 68-2-6, DIN IEC 68-2-27 | ||
- COO (Country of Origin):
- DE

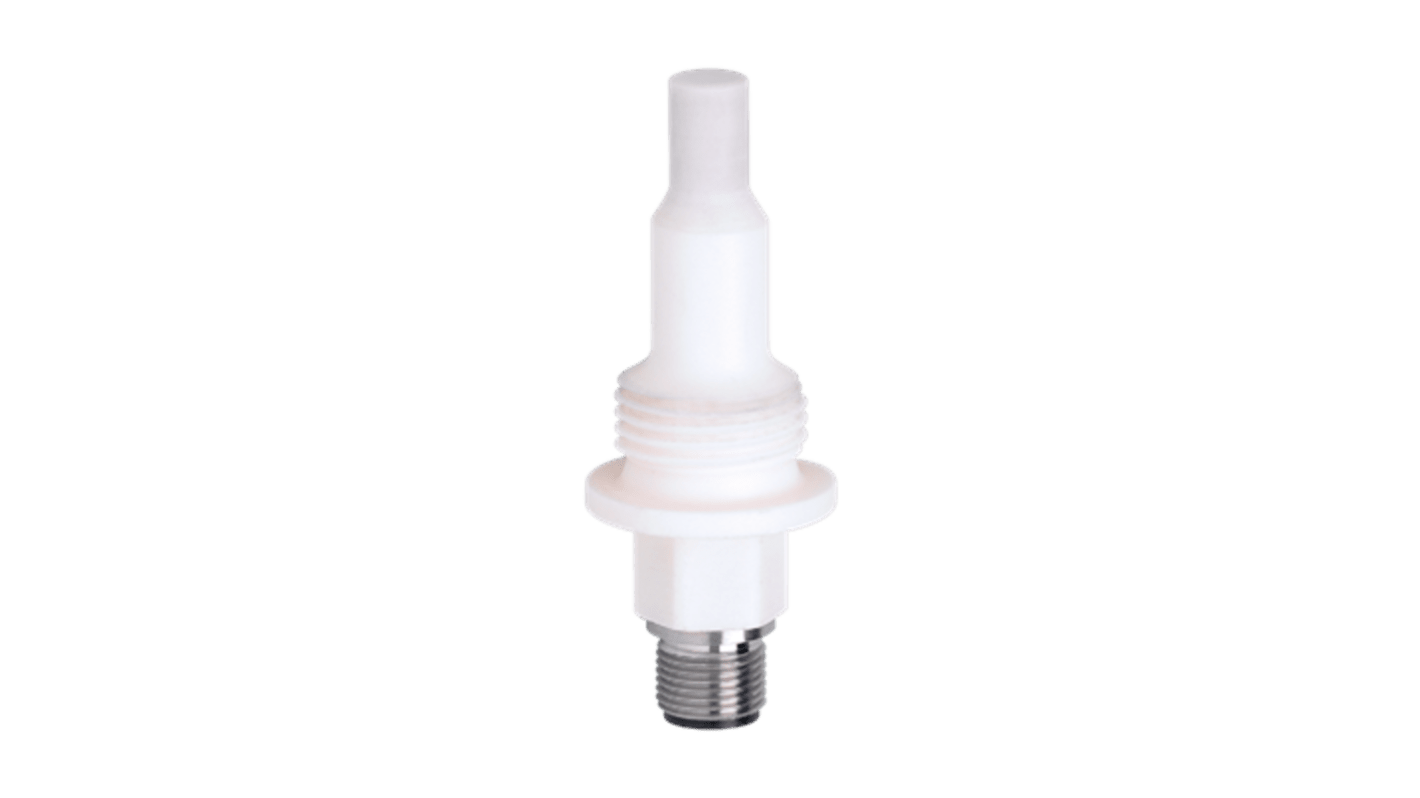

The ifm electronic flow sensor for connection to an evaluation unit is designed for precision measurement of liquid flow in a variety of applications. With a robust cylindrical housing and advanced ceramics construction, it ensures reliable operation across a temperature range of 5 to 70°C. This device not only features a maximum pressure rating of 30 bar but also boasts an exceptional accuracy, making it ideal for monitoring aggressive media. An integrated connection to control monitors enables seamless data transmission, facilitating effective performance monitoring and system integration.
Measuring range from 3 to 60 cm/s for versatile applications
Outstanding response time of 2 to 20 seconds enhances operational efficiency
IP67 protection ensures durability in challenging environments
Shock and vibration resistance standards guarantee reliability under robust conditions
