ifm electronic SI0521 Series Flow Monitor Flow Sensor for Liquid, 3cm/s Min, 300cm/s Max
- RS Stock No.:
- 596-272
- Mfr. Part No.:
- SI0521
- Brand:
- ifm electronic
Subtotal (1 unit)*
£403.86
(exc. VAT)
£484.63
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £403.86 |
*price indicative
- RS Stock No.:
- 596-272
- Mfr. Part No.:
- SI0521
- Brand:
- ifm electronic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ifm electronic | |
| Product Type | Flow Sensor | |
| Media Monitored | Liquid | |
| Device Type | Flow Monitor | |
| Minimum Flow Rate | 3cm/s | |
| Housing Material | 316L Stainless Steel | |
| Maximum Flow Rate | 300cm/s | |
| Connection Type | M18 x 1.5 Internal Thread | |
| Maximum Pressure | 30MPa | |
| Minimum Media Temperature | -20°C | |
| Maximum Supply Voltage | 24V | |
| IP Rating | IP67 | |
| Maximum Media Temperature | 100°C | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 80°C | |
| Standards/Approvals | DIN EN 61000-4-5 Surge, DIN EN 61000-4-4 Burst, DIN EN 61000-4-6 HF conducted, DIN EN 60068-2-27, DIN EN 61000-4-3 HF radiated, DIN EN 61000-4-2 ESD | |
| Series | SI0521 | |
| Current Rating | 250mA | |
| Select all | ||
|---|---|---|
Brand ifm electronic | ||
Product Type Flow Sensor | ||
Media Monitored Liquid | ||
Device Type Flow Monitor | ||
Minimum Flow Rate 3cm/s | ||
Housing Material 316L Stainless Steel | ||
Maximum Flow Rate 300cm/s | ||
Connection Type M18 x 1.5 Internal Thread | ||
Maximum Pressure 30MPa | ||
Minimum Media Temperature -20°C | ||
Maximum Supply Voltage 24V | ||
IP Rating IP67 | ||
Maximum Media Temperature 100°C | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 80°C | ||
Standards/Approvals DIN EN 61000-4-5 Surge, DIN EN 61000-4-4 Burst, DIN EN 61000-4-6 HF conducted, DIN EN 60068-2-27, DIN EN 61000-4-3 HF radiated, DIN EN 61000-4-2 ESD | ||
Series SI0521 | ||
Current Rating 250mA | ||

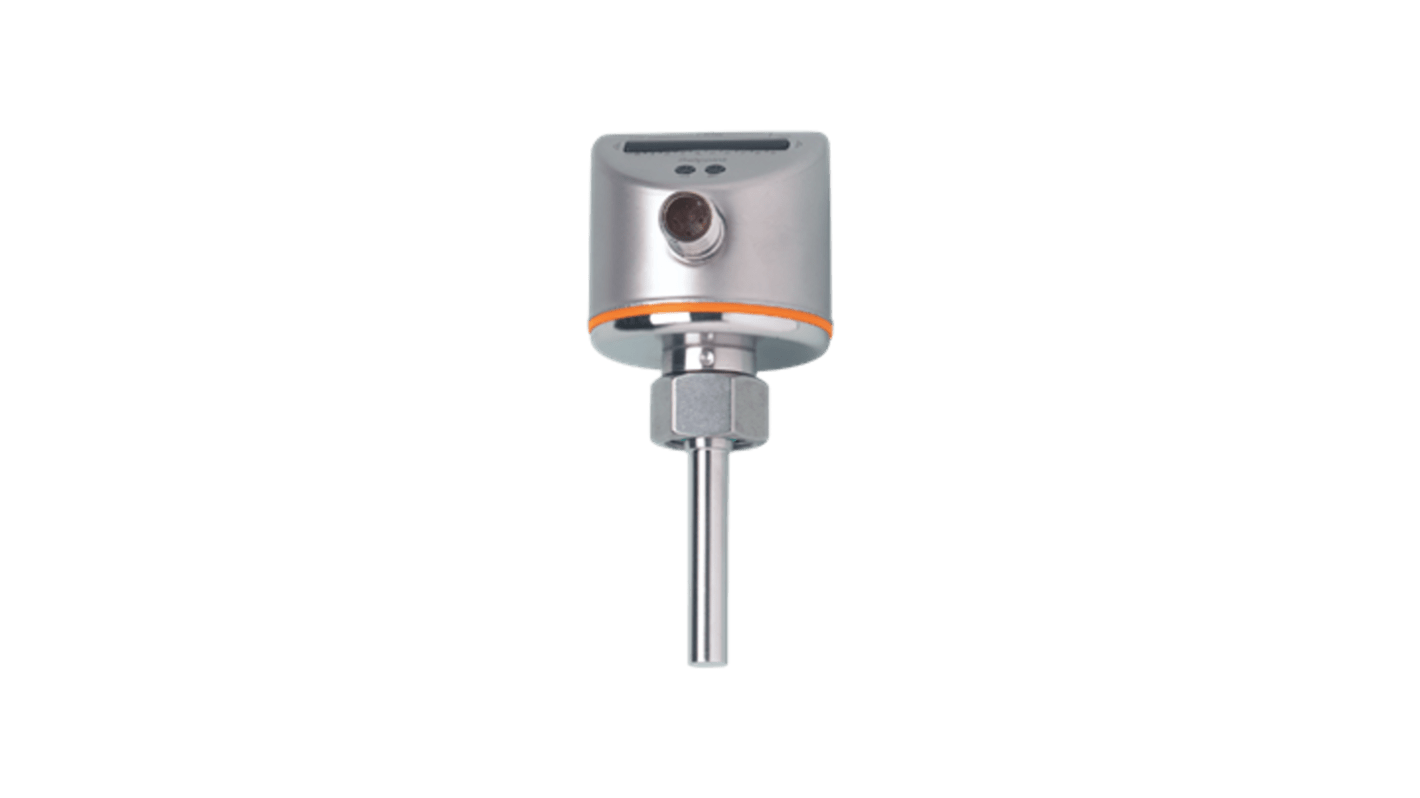

The ifm electronic flow monitor is a sophisticated solution designed for optimal monitoring of liquid media. Built with a robust cylindrical housing, it operates effectively within a temperature range of -15 to 70°C and withstands pressures up to 300 bar. This monitoring device utilizes a PNP electrical design and features two digital outputs, both of which can be parameterized for normally open or normally closed functionality. The device offers precision measurement capabilities with an impressive response time, ensuring reliable performance in various applications. Its durable materials include stainless steel and robust plastics, making it ideal for demanding environments while providing easy installation through a threaded connection.
Designed for monitoring liquid media effectively
Operating temperature range from -15°C to 70°C for versatile applications
Pressure rating of 300 bar ensures reliability under high-stress conditions
Two digital outputs offer flexible configuration options, enhancing adaptability
