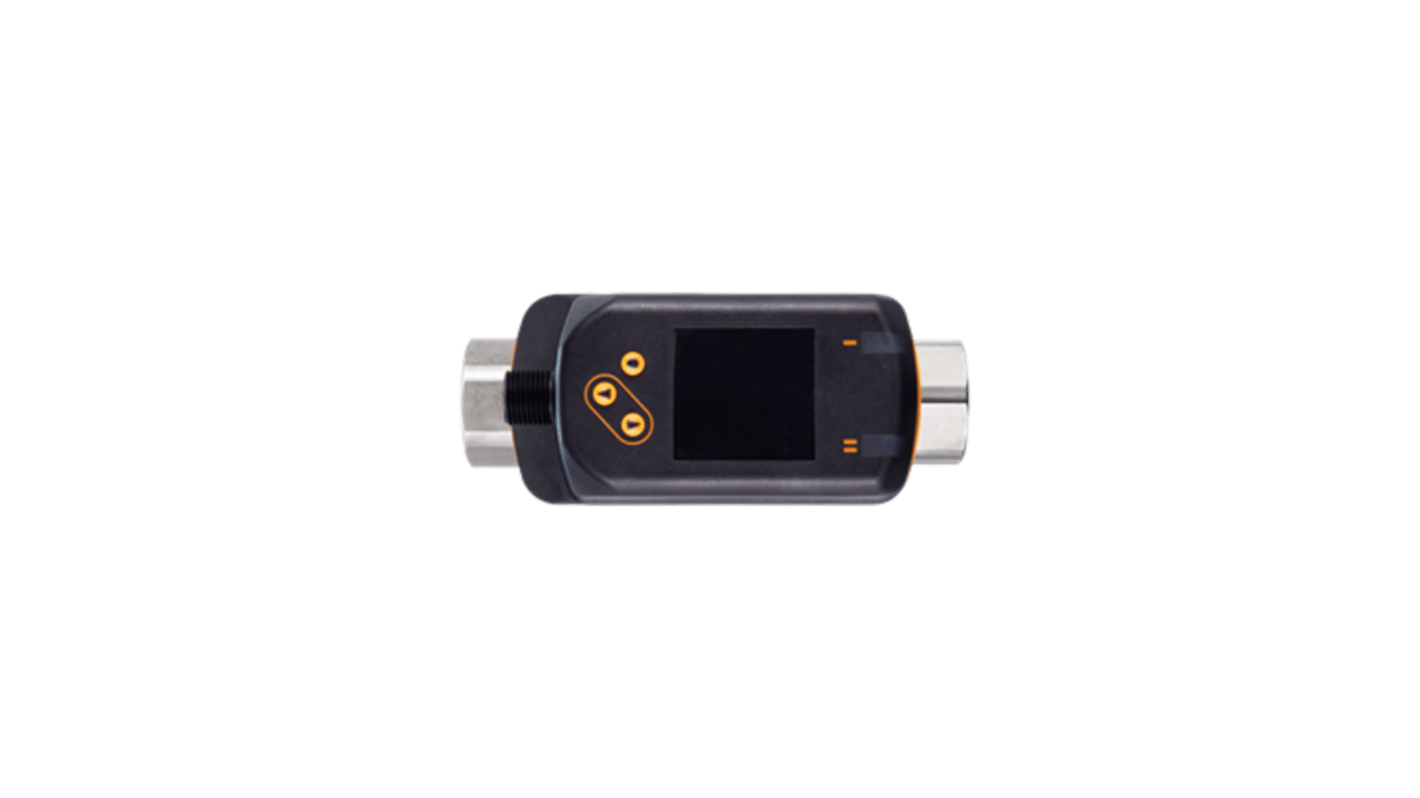

ifm electronic SV5610 Series Vortex Flow Meter Flow Meter for Coolants, 2L/min Min, 40L/min Max
- RS Stock No.:
- 596-322
- Mfr. Part No.:
- SV5610
- Brand:
- ifm electronic
Subtotal (1 unit)*
£390.29
(exc. VAT)
£468.35
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 29 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £390.29 |
*price indicative
- RS Stock No.:
- 596-322
- Mfr. Part No.:
- SV5610
- Brand:
- ifm electronic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ifm electronic | |
| Media Monitored | Coolants | |
| Product Type | Flow Meter | |
| Device Type | Vortex Flow Meter | |
| Minimum Flow Rate | 2L/min | |
| Housing Material | Glass Filled Polybutylene Terephthalate, Polycarbonate, Thermoplastic Elastomer, 316L Stainless Steel, Polyphenylene Sulfide | |
| Maximum Flow Rate | 40L/min | |
| Connection Type | 1/2 in NPT Internal Thread | |
| Maximum Pressure | 1.2MPa | |
| Maximum Supply Voltage | 30V | |
| IP Rating | IP67, IP65 | |
| Minimum Media Temperature | 14°F | |
| Maximum Media Temperature | 194°F | |
| Minimum Operating Temperature | 32°F | |
| Maximum Operating Temperature | 140°F | |
| Standards/Approvals | DIN EN 60068-2-6, DIN EN 60068-2-27, DIN EN 61000-6-2, DIN EN 61000-6-3 | |
| Series | SV5610 | |
| Current Rating | 100mA | |
| Select all | ||
|---|---|---|
Brand ifm electronic | ||
Media Monitored Coolants | ||
Product Type Flow Meter | ||
Device Type Vortex Flow Meter | ||
Minimum Flow Rate 2L/min | ||
Housing Material Glass Filled Polybutylene Terephthalate, Polycarbonate, Thermoplastic Elastomer, 316L Stainless Steel, Polyphenylene Sulfide | ||
Maximum Flow Rate 40L/min | ||
Connection Type 1/2 in NPT Internal Thread | ||
Maximum Pressure 1.2MPa | ||
Maximum Supply Voltage 30V | ||
IP Rating IP67, IP65 | ||
Minimum Media Temperature 14°F | ||
Maximum Media Temperature 194°F | ||
Minimum Operating Temperature 32°F | ||
Maximum Operating Temperature 140°F | ||
Standards/Approvals DIN EN 60068-2-6, DIN EN 60068-2-27, DIN EN 61000-6-2, DIN EN 61000-6-3 | ||
Series SV5610 | ||
Current Rating 100mA | ||
- COO (Country of Origin):
- US
The ifm electronic vortex flow meter with display is specifically designed for reliable flow measurement and monitoring in various industrial applications. Its robust construction features a half inch NPT threaded connection, making it ideal for integrating into existing systems. With advanced vortex measurement technology, this flow meter can accurately monitor water and glycol solutions over a wide measuring range, ensuring optimal performance even under demanding conditions. Its user-friendly display offers clear readings and configurations, allowing for seamless adaptation to operational needs. Furthermore, the device is equipped with a comprehensive range of digital outputs, enabling precise data transmission for real-time analysis and monitoring.
High accuracy flow monitoring with ± 2% measuring range deviation
Dual digital outputs facilitate flexible configuration options
Robust IP 65/IP 67 protection ensures durability in harsh environments
Gold-plated contacts enhance connection reliability
