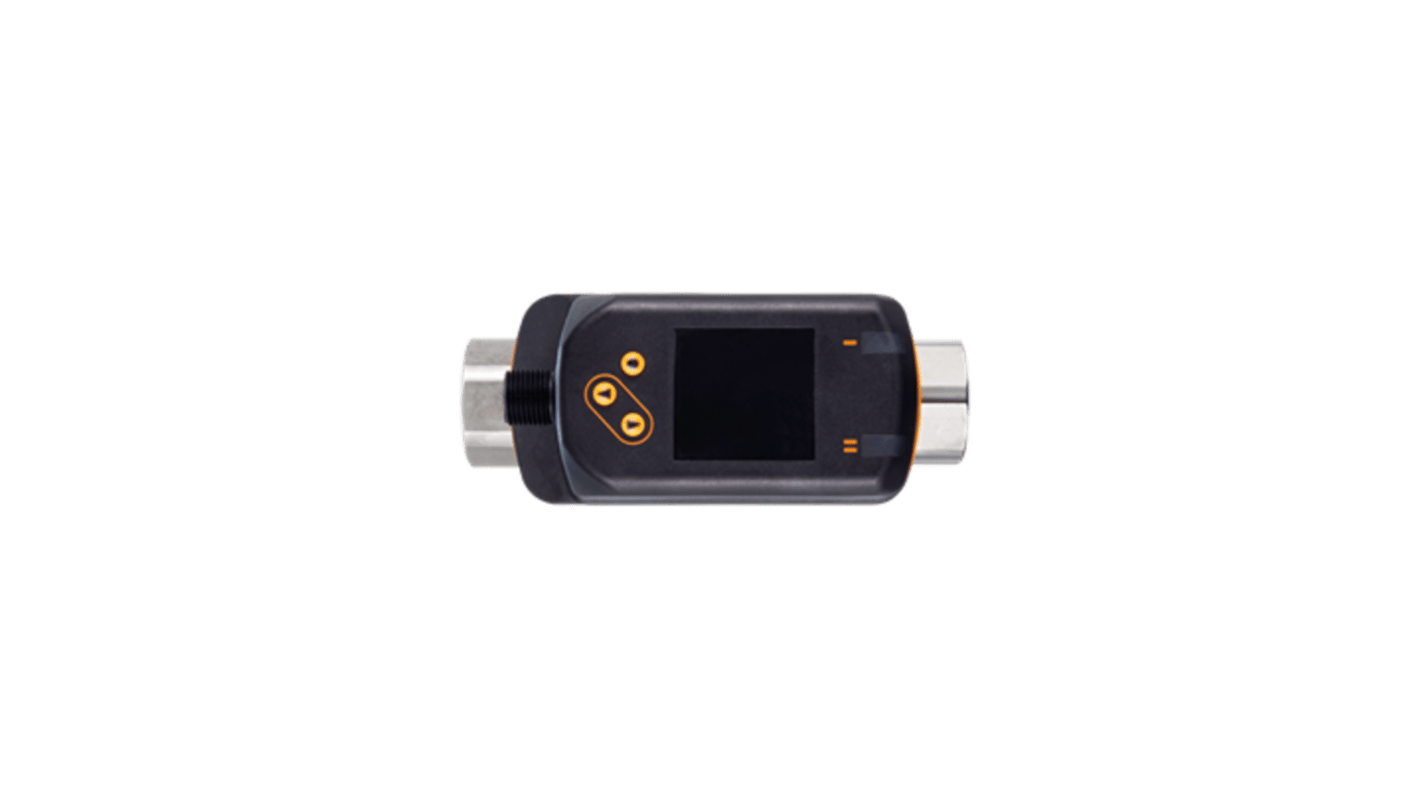

ifm electronic SV5500 Series Vortex Flow Meter Flow Meter for Coolants, 2L/min Min, 40L/min Max
- RS Stock No.:
- 596-105
- Mfr. Part No.:
- SV5500
- Brand:
- ifm electronic
Subtotal (1 unit)*
£383.51
(exc. VAT)
£460.21
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 03 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £383.51 |
*price indicative
- RS Stock No.:
- 596-105
- Mfr. Part No.:
- SV5500
- Brand:
- ifm electronic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ifm electronic | |
| Media Monitored | Coolants | |
| Product Type | Flow Meter | |
| Device Type | Vortex Flow Meter | |
| Minimum Flow Rate | 2L/min | |
| Maximum Flow Rate | 40L/min | |
| Housing Material | Polyphenylene Sulfide, Thermoplastic Elastomer, 316L Stainless Steel, Polycarbonate, Glass Filled Polybutylene Terephthalate | |
| Connection Type | G 1/2 Internal Thread | |
| Maximum Pressure | 1.2MPa | |
| Maximum Supply Voltage | 30V dc | |
| IP Rating | IP65, IP67 | |
| Minimum Media Temperature | -10°C | |
| Maximum Media Temperature | 90°C | |
| Minimum Operating Temperature | 0°C | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | DIN EN 60068-2-27, DIN EN 60068-2-6, DIN EN 61000-6-2, DIN EN 61000-6-3 | |
| Series | SV5500 | |
| Current Rating | 100mA | |
| Select all | ||
|---|---|---|
Brand ifm electronic | ||
Media Monitored Coolants | ||
Product Type Flow Meter | ||
Device Type Vortex Flow Meter | ||
Minimum Flow Rate 2L/min | ||
Maximum Flow Rate 40L/min | ||
Housing Material Polyphenylene Sulfide, Thermoplastic Elastomer, 316L Stainless Steel, Polycarbonate, Glass Filled Polybutylene Terephthalate | ||
Connection Type G 1/2 Internal Thread | ||
Maximum Pressure 1.2MPa | ||
Maximum Supply Voltage 30V dc | ||
IP Rating IP65, IP67 | ||
Minimum Media Temperature -10°C | ||
Maximum Media Temperature 90°C | ||
Minimum Operating Temperature 0°C | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals DIN EN 60068-2-27, DIN EN 60068-2-6, DIN EN 61000-6-2, DIN EN 61000-6-3 | ||
Series SV5500 | ||
Current Rating 100mA | ||
The ifm electronic vortex flow meter with display is designed for precise measurement and monitoring of water and other fluid media. Offering a range of applications from industrial to process environments, it delivers reliable performance with a construction that withstands challenging conditions. The meter features a built-in display for real-time monitoring of flow rates, ensuring operators have immediate access to crucial data. Additionally, its robust design includes gold-plated contacts and ensures efficient connectivity through IO-Link communication, making it an optimal choice for both flow and temperature monitoring across various industrial applications.
High measuring range of 2 to 40 l/min with excellent repeatability
Gold-plated contacts enhance reliability and longevity
Compact housing with dimensions of 110 x 45 x 72 mm
Protection class IP 65 and IP 67 ensures durability in harsh environments
