Ruland Beam, 28.6mm Outside Diameter, 7 mm, 9 mm Bore, 38.1mm Length Flexible Coupling

CPF precision resistors are constructed from an alumina substrate with a Nichrome (NiCr) resistor layer. They feature an electroplated tin finish that is 100% matte. Offered in a range of standard case sizes these chip resistors have uniform, accurate dimensions that enable easy placement.

CPF series thin film precision resistors from TE Connectivity provide high stability and close accuracy. These chip resistors have resistance tolerances down to 0.1% and Temperature Coefficient of Resistance (TCR) values as low as 15ppm/°C.

High precision
High stability
Accurate dimensions
Temperature range of -55°C to +155°C
Range of resistance values available to suit every application

Suitable applications for CPF precision resistors include communications, industrial controls, instrumentation and medical applications.

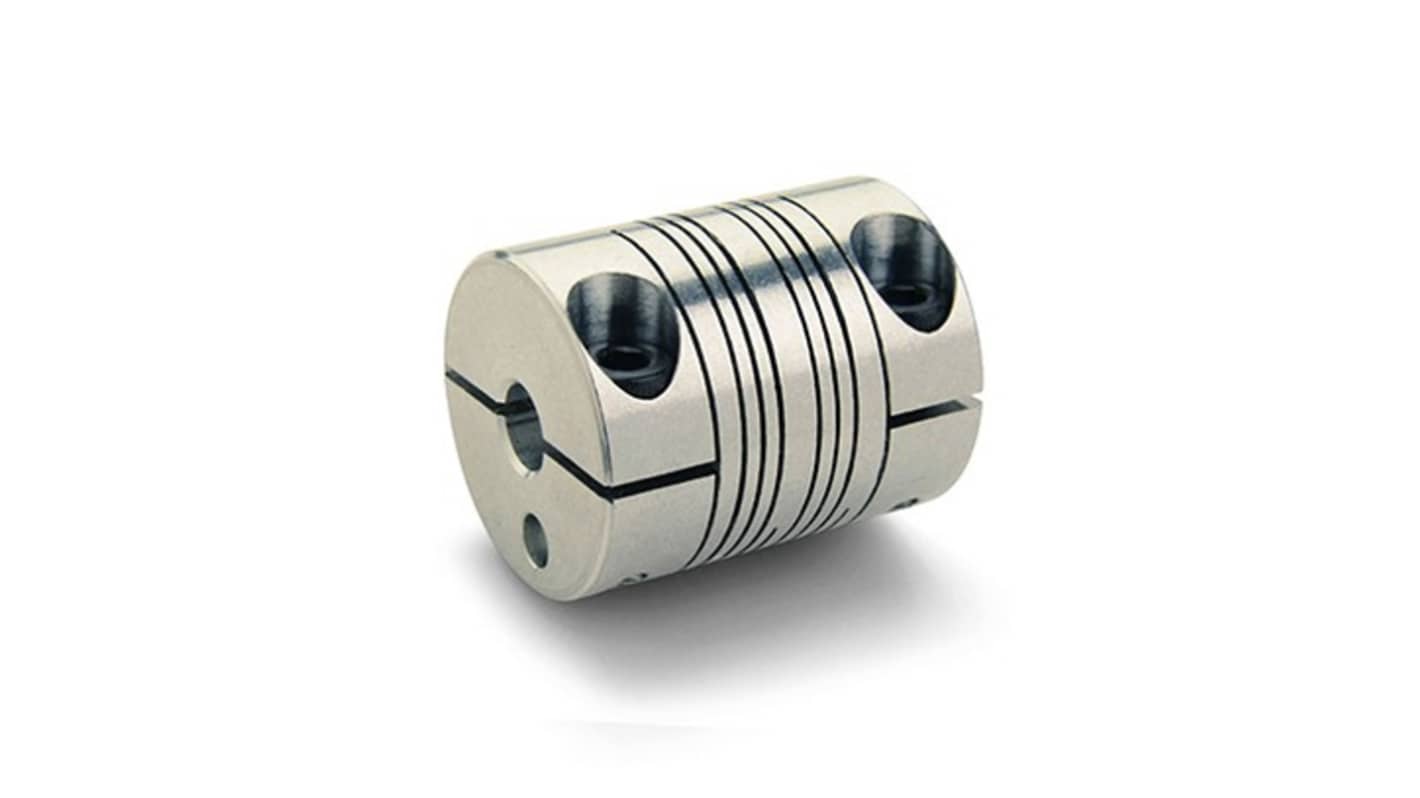

The Ruland Clamp style four beam coupling is designed for precision and performance in demanding applications. Constructed from a single piece of 7075 aluminum, it offers an impressive combination of high torque capacity and reduced vibration, making it ideal for use at speeds of up to 6,000 RPM. The innovative spiral cut design enhances the coupling’s reliability, ensuring zero backlash and superior response to dynamic torsional loads. Each unit undergoes strict quality control during manufacturing to guarantee optimal performance. With RoHS3 and REACH compliance, it stands as a testament to both efficiency and environmental responsibility. Whether in industrial automation or robotic applications, this coupling is engineered to meet the high standards expected by professionals.

Machined from high-grade aluminum for maximum durability
Zero backlash design ensures precision in motion control
Balanced construction minimizes vibration even at high speeds
Dynamic torque reversal capabilities enhance operational flexibility
Compatible with metric hardware for seamless integration

Surface Mount - 0402 - CPF Series
