Festo 1/2 in G FRL, Automatic Drain, 5 μm Filtration Size Integrated Pressure Gauge

RS Stock No.:: 202-2930
Mfr. Part No.:: FRC-1/2-D-5M-MIDI-A
Brand:: Festo

Festo 1/2 in G FRL, Automatic Drain, 5 μm Filtration Size Integrated Pressure Gauge

Subtotal (1 unit)*

£318.94

(exc. VAT)

£382.73

(inc. VAT)

FREE delivery for orders over £60.00

Stocked by manufacturer

Ready to ship from 04 June 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£318.94

*price indicative

RS Stock No.:: 202-2930
Mfr. Part No.:: FRC-1/2-D-5M-MIDI-A
Brand:: Festo

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Festo
	Port Size	1/2 in G
	Product Type	FRL
	Integrated Pressure Gauge	Yes
	Maximum Flow Rate	1800L/min
	Drain Type	Automatic
	Series	FRC
	Filtration Size	5μm
	Pressure Gauge Port Size	1/2 in G
	Minimum Operating Temperature	-10°C
	Maximum Operating Pressure	12 bar
	Maximum Operating Temperature	60°C
	Standards/Approvals	RoHS
	Pressure Gauge Port Thread Standard	G
	Pressure Setting Range	2 to 12 bar
	Bowl Material	Polycarbonate

	Select all
	Brand Festo
	Port Size 1/2 in G
	Product Type FRL
	Integrated Pressure Gauge Yes
	Maximum Flow Rate 1800L/min
	Drain Type Automatic
	Series FRC
	Filtration Size 5μm
	Pressure Gauge Port Size 1/2 in G
	Minimum Operating Temperature -10°C
	Maximum Operating Pressure 12 bar
	Maximum Operating Temperature 60°C
	Standards/Approvals RoHS
	Pressure Gauge Port Thread Standard G
	Pressure Setting Range 2 to 12 bar
	Bowl Material Polycarbonate

COO (Country of Origin):: HU

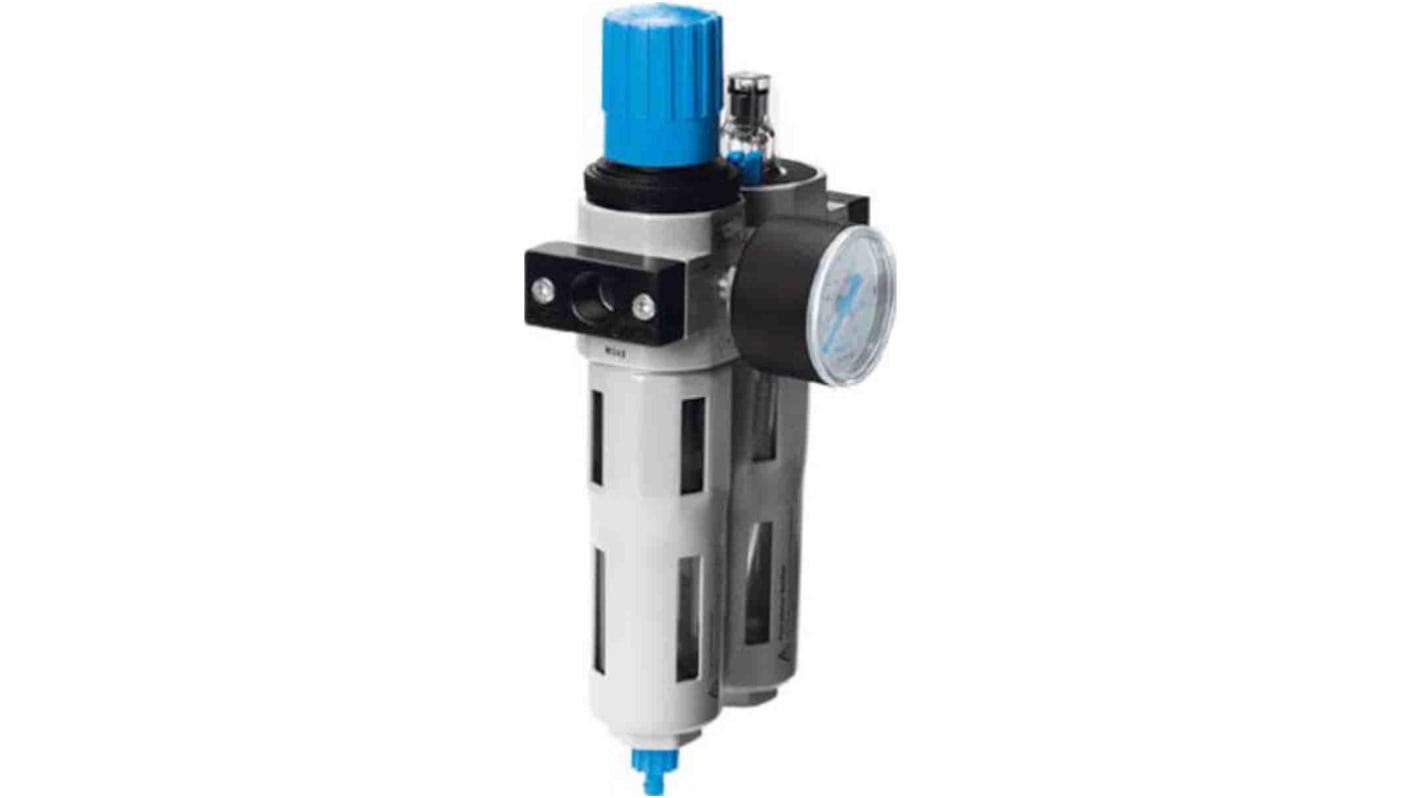

Festo FRL, G1/2 Port Connection, 1.44kg Weight - FRC-1/2-D-5M-MIDI-A

Simplify your air prep with this three-in-one FRL service unit from Festo. This clever bit of kit filters, regulates and lubricates the pneumatic supply to keep your system running well. There's an integrated gauge for monitoring air pressure and a lockable rotary knob for tweaking and setting levels. The filter has a 5μm grade to efficiently remove tiny particles and condensate. As this FRL has an automatic drain, the job of emptying the bowl is taken off your hands. A mist lubricator adds oil to the air so your components stay in tip-top condition.

Features & Benefits

• Strong and durable die-cast zinc and polycarbonate construction ensures a long service life

• Metal bowl guard for extra protection against bumps

• Wide operating temperature range between -10°C and +60°C, to handle harsh conditions

• 1,800L/min flow rate to support high-capacity systems

• Modular design makes it easy to add extra functions

Applications

• Industrial automation

• Process control

• HVAC equipment

• Medical instruments

What's the pressure range of this FRL unit?

This FRL unit has a wide operating pressure range between 2 and 12 bar and enables you to regulate pressures between 0.5 and 12 bar, so it's widely compatible with industrial systems.
