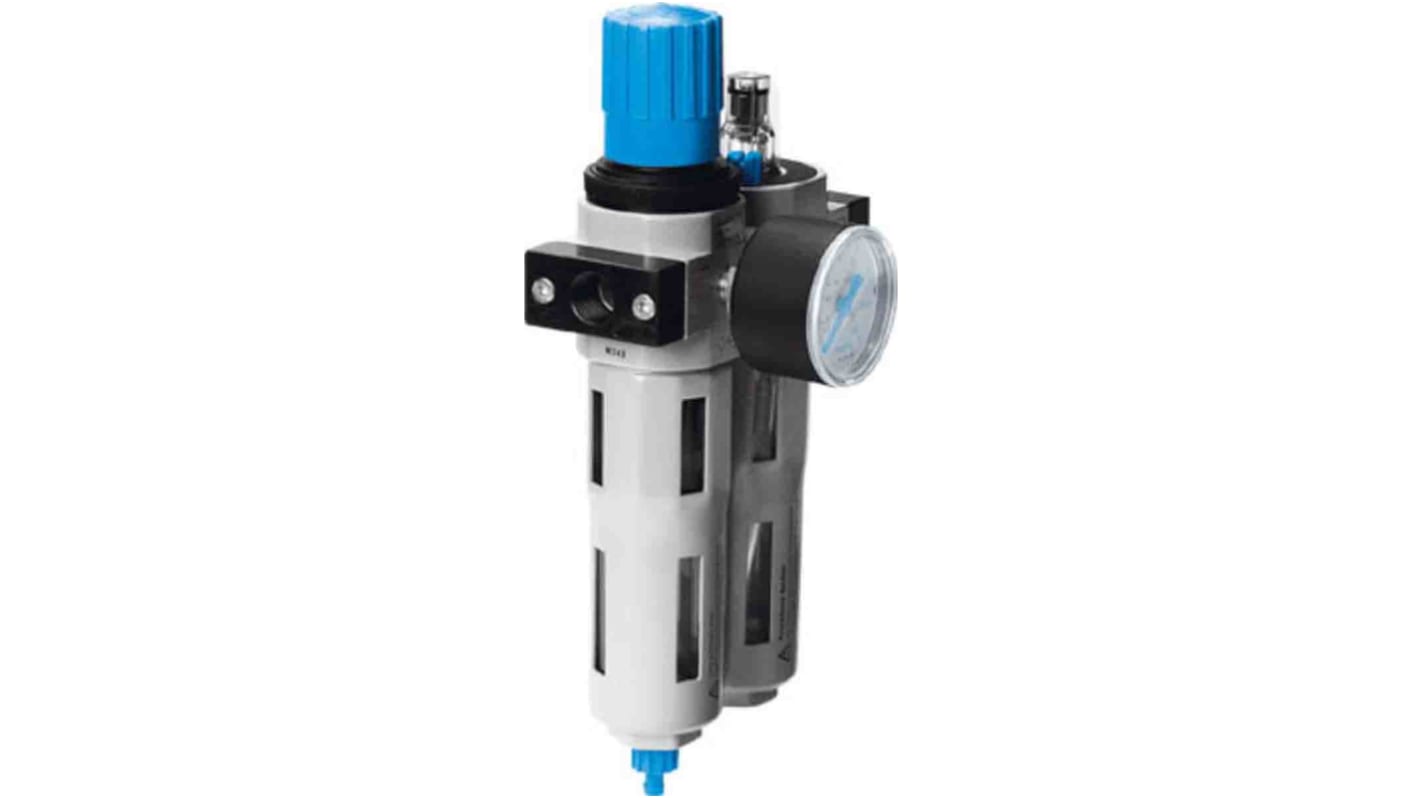

Festo 1/2 in FRL, Automatic Drain, 40 μm Filtration Size Integrated Pressure Gauge
- RS Stock No.:
- 203-1541
- Mfr. Part No.:
- FRC-1/2-D-7-MAXI-A
- Brand:
- Festo
Subtotal (1 unit)*
£615.70
(exc. VAT)
£738.84
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £615.70 |
*price indicative
- RS Stock No.:
- 203-1541
- Mfr. Part No.:
- FRC-1/2-D-7-MAXI-A
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Product Type | FRL | |
| Port Size | 1/2 in | |
| Integrated Pressure Gauge | Yes | |
| Drain Type | Automatic | |
| Series | FRC | |
| Filtration Size | 40μm | |
| Pressure Gauge Port Size | 1/2 in G | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | 60°C | |
| Maximum Operating Pressure | 12 bar | |
| Standards/Approvals | RoHS | |
| Pressure Setting Range | 0.5 to 7 bar | |
| Pressure Gauge Port Thread Standard | G | |
| Bowl Material | Polycarbonate | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Product Type FRL | ||
Port Size 1/2 in | ||
Integrated Pressure Gauge Yes | ||
Drain Type Automatic | ||
Series FRC | ||
Filtration Size 40μm | ||
Pressure Gauge Port Size 1/2 in G | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature 60°C | ||
Maximum Operating Pressure 12 bar | ||
Standards/Approvals RoHS | ||
Pressure Setting Range 0.5 to 7 bar | ||
Pressure Gauge Port Thread Standard G | ||
Bowl Material Polycarbonate | ||
- COO (Country of Origin):
- HU
The Festo service unit FRC-1/2-D-7-MAXI-A Filter/regulator/lubricator combination, maximum outlet pressure 7 bar, 40 μm filter, with metal bowl guard. With automatic condensate drain.
Size Maxi
Series D
Actuator lock Rotary knob with lock
Assembly position Vertical +/- 5°
Condensate drain fully automatic
