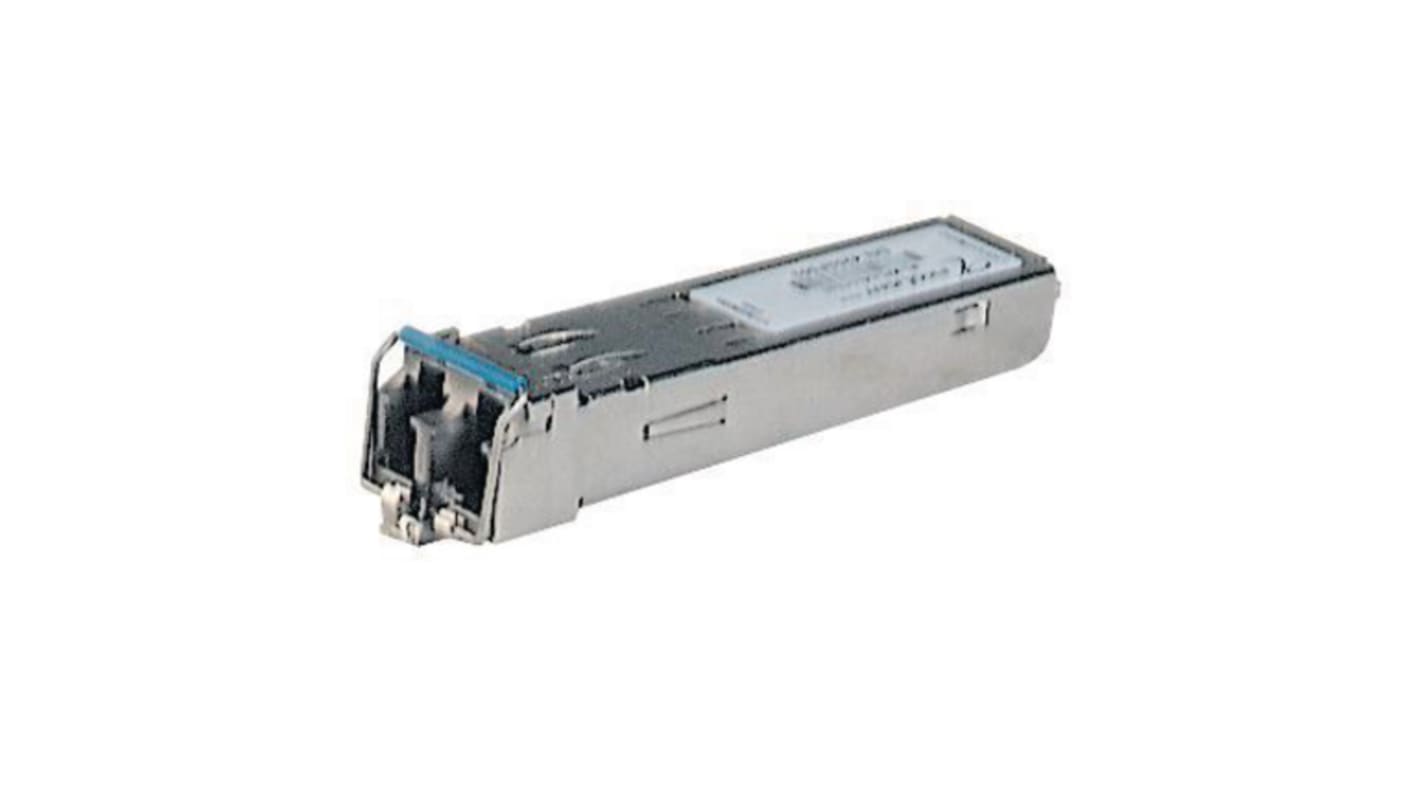

Hirschmann M-SFP-SX/LC Fibre Optic Transceiver, LC Connector, 1000 Mbps 850 nm

RS Stock No.:: 245-6923
Mfr. Part No.:: M-SFP-SX/LC
Brand:: Hirschmann

Hirschmann M-SFP-SX/LC Fibre Optic Transceiver, LC Connector, 1000 Mbps 850 nm

Subtotal (1 unit)*

£190.39

(exc. VAT)

£228.47

(inc. VAT)

FREE delivery for orders over £50.00

Temporarily out of stock

3 unit(s) shipping from 06 April 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£190.39

*price indicative

RS Stock No.:: 245-6923
Mfr. Part No.:: M-SFP-SX/LC
Brand:: Hirschmann

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Hirschmann
	Maximum Data Rate	1000Mbps
	Product Type	Fibre Optic Transceiver
	Connector Shape	Rectangular
	Connector Type	LC
	Maximum Data Transmission Distance	550m
	Wavelength of Peak Sensitivity	850nm
	Height	18mm
	Width	20 mm
	Length	50mm
	Standards/Approvals	EN 60950
	Series	M-SFP-SX/LC

	Select all
	Brand Hirschmann
	Maximum Data Rate 1000Mbps
	Product Type Fibre Optic Transceiver
	Connector Shape Rectangular
	Connector Type LC
	Maximum Data Transmission Distance 550m
	Wavelength of Peak Sensitivity 850nm
	Height 18mm
	Width 20 mm
	Length 50mm
	Standards/Approvals EN 60950
	Series M-SFP-SX/LC

Datasheet - M-SFP-SX/LC

COO (Country of Origin):: MY

Belden Hirschmann Fibre Optic Transceiver, SFP Slot Mounting, IP20 Rating - M-SFP-SX/LC

Dispatch and receive signals with this efficient fibre optic transceiver from Belden's Hirschmann range. It does the jobs of two devices, thanks to its dual conversion of optical and electric signals, so you benefit from a compact communication network. With a data transfer rate of 1000Mbit/s, the device keeps up with the pace of demanding Ethernets. An IP20-rated housing makes it durable by offering protection against touch, dust and anything bigger than 12mm.

Features & Benefits

• Wide operating temperature between -40°C and +85°C, making it compatible with challenging locations

• Power consumption of 1W, for energy efficiency

• Compact dimensions of 18 (H) x 20 (W) x 50mm (D), so slots neatly into your system

• Easy to install into an SFP port on a computer, saving time and effort

Applications

• Military equipment

• Robotics systems

• Industrial automation

• Telecommunication centres

How much does this transceiver weigh?

This miniature transceiver weighs only 30g, so it's easy to handle.
