Hirschmann M-SFP-LX/LC Fibre Optic Transceiver, LC Connector, 1000 Mbps 1310 nm

RS Stock No.:: 245-6920
Mfr. Part No.:: M-SFP-LX/LC
Brand:: Hirschmann

Hirschmann M-SFP-LX/LC Fibre Optic Transceiver, LC Connector, 1000 Mbps 1310 nm

Subtotal (1 unit)*

£345.20

(exc. VAT)

£414.24

(inc. VAT)

FREE delivery for orders over £60.00

Temporarily out of stock

Shipping from 01 June 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£345.20

*price indicative

RS Stock No.:: 245-6920
Mfr. Part No.:: M-SFP-LX/LC
Brand:: Hirschmann

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Hirschmann
	Product Type	Fibre Optic Transceiver
	Maximum Data Rate	1000Mbps
	Connector Shape	Rectangular
	Receiver Jitter at Maximum Data Rate	3.5ps
	Connector Type	LC
	Wavelength of Peak Sensitivity	1310nm
	Length	50mm
	Standards/Approvals	EN 61000-4-5, EN60950, EN 61000-4-6, EN 55022, EN 61000-4-3, EN 61000-4-2, FCC 47CFR Part 15, IEEE 802.3-2000, EN 61000-4-4
	Width	20 mm
	Height	18mm
	Maximum Fibre Size	125μm
	Series	M-SFP-LX/LC

	Select all
	Brand Hirschmann
	Product Type Fibre Optic Transceiver
	Maximum Data Rate 1000Mbps
	Connector Shape Rectangular
	Receiver Jitter at Maximum Data Rate 3.5ps
	Connector Type LC
	Wavelength of Peak Sensitivity 1310nm
	Length 50mm
	Standards/Approvals EN 61000-4-5, EN60950, EN 61000-4-6, EN 55022, EN 61000-4-3, EN 61000-4-2, FCC 47CFR Part 15, IEEE 802.3-2000, EN 61000-4-4
	Width 20 mm
	Height 18mm
	Maximum Fibre Size 125μm
	Series M-SFP-LX/LC

Datasheet - M-SFP-LX/LC

COO (Country of Origin):: MY

Belden Hirschmann Fibre Optic Transceiver, Rectangular Connector, 30g Weight - M-SFP-LX/LC

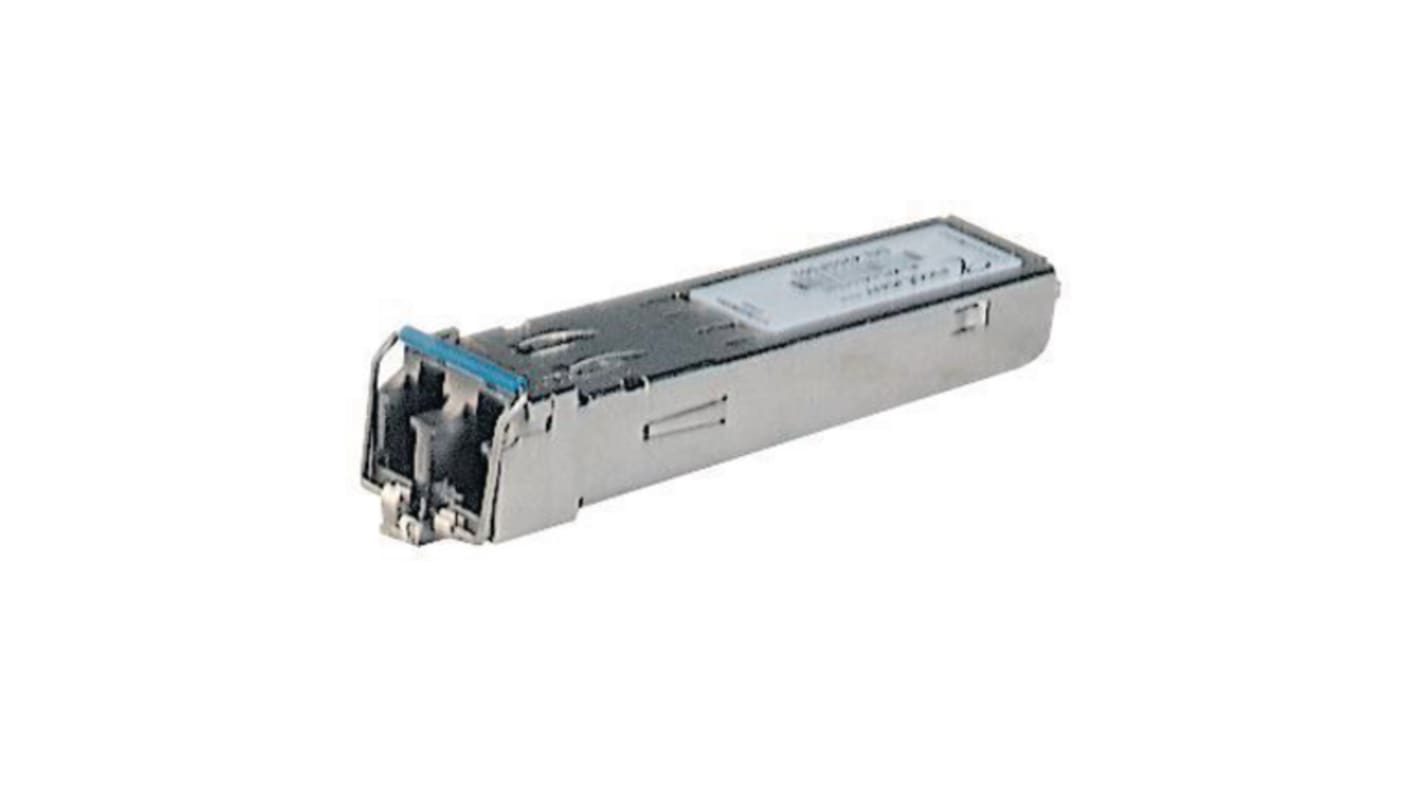

Use this fibre optic transceiver from Belden's Hirschmann range to reliably send and receive data in your industrial control room. It helps to keep the lines of communication open between components by converting electrical signals into optical signals and vice versa. The sturdy unit resists vibration and shock, making it compatible with demanding environments. To ensure your signals stay crystal clear, it's protected from interference that could be caused by nearby electronic devices.

Features & Benefits

• Hot-pluggable, to keep your network up and running during installation

• Compact dimensions of 18 (H) x 20 (W) x 50mm (D), for neat mounting on a SFP port

• Touchproof IP20-rated housing is protected against anything bigger than 12mm

Applications

• Military and defence technology

• Telecommunication centres

• Industrial robotics

What's the operating temperature range of this transceiver?

This device has a broad operating temperature range between -40°C and +85°C, so it's suitable for use in challenging locations.
