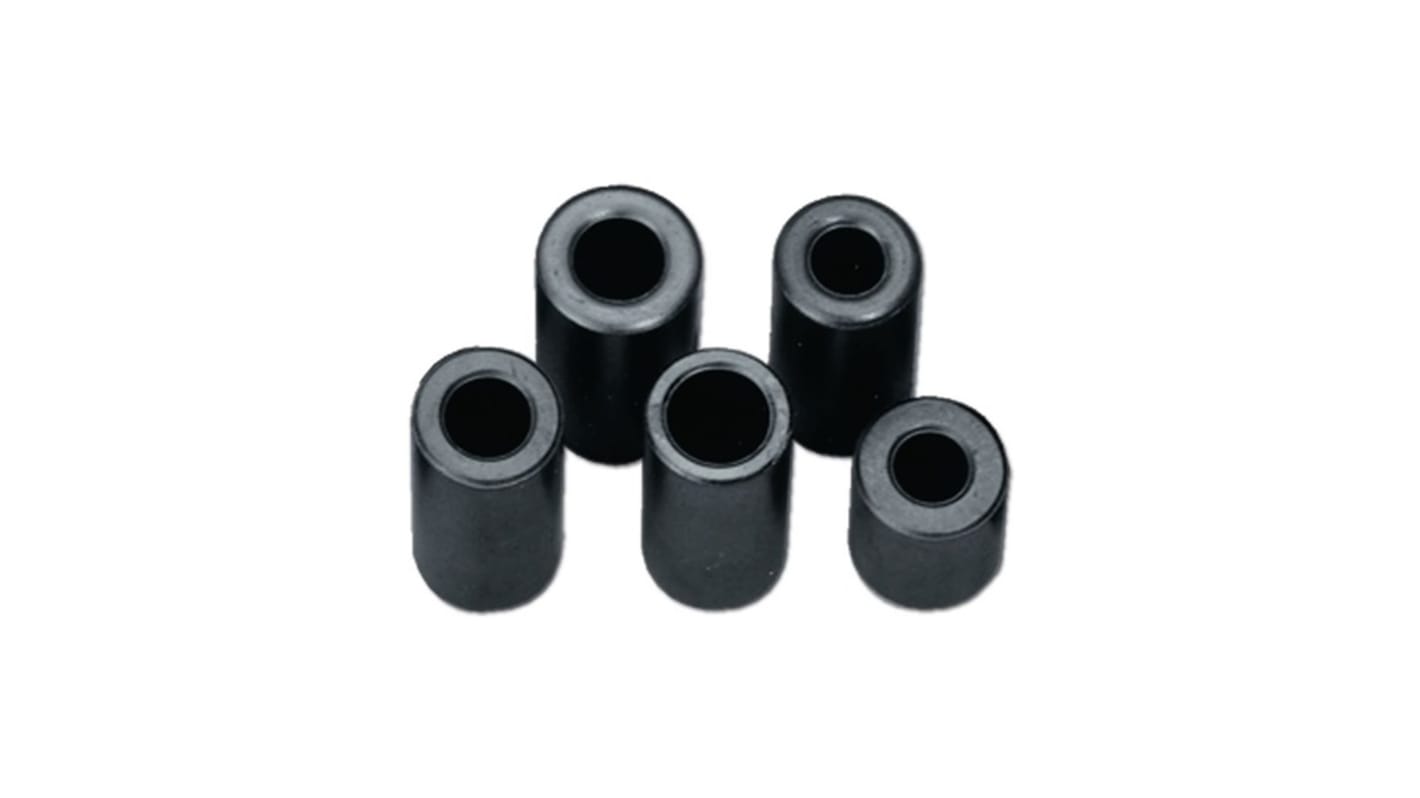

Wurth Elektronik, Diameter 8.2 mm Ferrite Sleeve, Apertures: 1 28.5 mm 14.2 mm 14.2 mm
- RS Stock No.:
- 287-6680
- Distrelec Article No.:
- 301-81-774
- Mfr. Part No.:
- 742700781
- Brand:
- Wurth Elektronik
Subtotal (1 unit)*
£1.07
(exc. VAT)
£1.28
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 315 unit(s) shipping from 09 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £1.07 |
*price indicative
- RS Stock No.:
- 287-6680
- Distrelec Article No.:
- 301-81-774
- Mfr. Part No.:
- 742700781
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Series | WE-AFB | |
| Product Type | Ferrite Sleeve | |
| Sub Type | EMI Suppression Axial Ferrite Bead | |
| Material | 4W620 | |
| Impedance at 25 MHz | 120Ω | |
| Key | No | |
| Impedance at 100 MHz | 220Ω | |
| Aperture Diameter | 8.2mm | |
| Number of Apertures | 1 | |
| External Depth | 28.5mm | |
| Gapped | No | |
| External Height | 14.2mm | |
| External Width | 14.2mm | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Series WE-AFB | ||
Product Type Ferrite Sleeve | ||
Sub Type EMI Suppression Axial Ferrite Bead | ||
Material 4W620 | ||
Impedance at 25 MHz 120Ω | ||
Key No | ||
Impedance at 100 MHz 220Ω | ||
Aperture Diameter 8.2mm | ||
Number of Apertures 1 | ||
External Depth 28.5mm | ||
Gapped No | ||
External Height 14.2mm | ||
External Width 14.2mm | ||
Standards/Approvals No | ||
- COO (Country of Origin):
- CN
The Ferrite Core is a reliable electronic component designed for usage in general electronic equipment. With a high impedance value at various frequencies and excellent electrical properties, it ensures optimal performance in electronic circuits. The product is specifically developed to provide effective EMI suppression and noise reduction in electronic applications.
High impedance value of 120Ω @ 25 MHz and 220Ω @ 100 MHz for improved signal integrity
Applicable cable diameter of up to 8 mm for versatile use in different applications
Effective EMI suppression properties to reduce unwanted noise interference
Wide operating temperature range from -25°C up to +125°C for reliable performance in various environments
Designed for general electronic equipment to meet standard requirements
