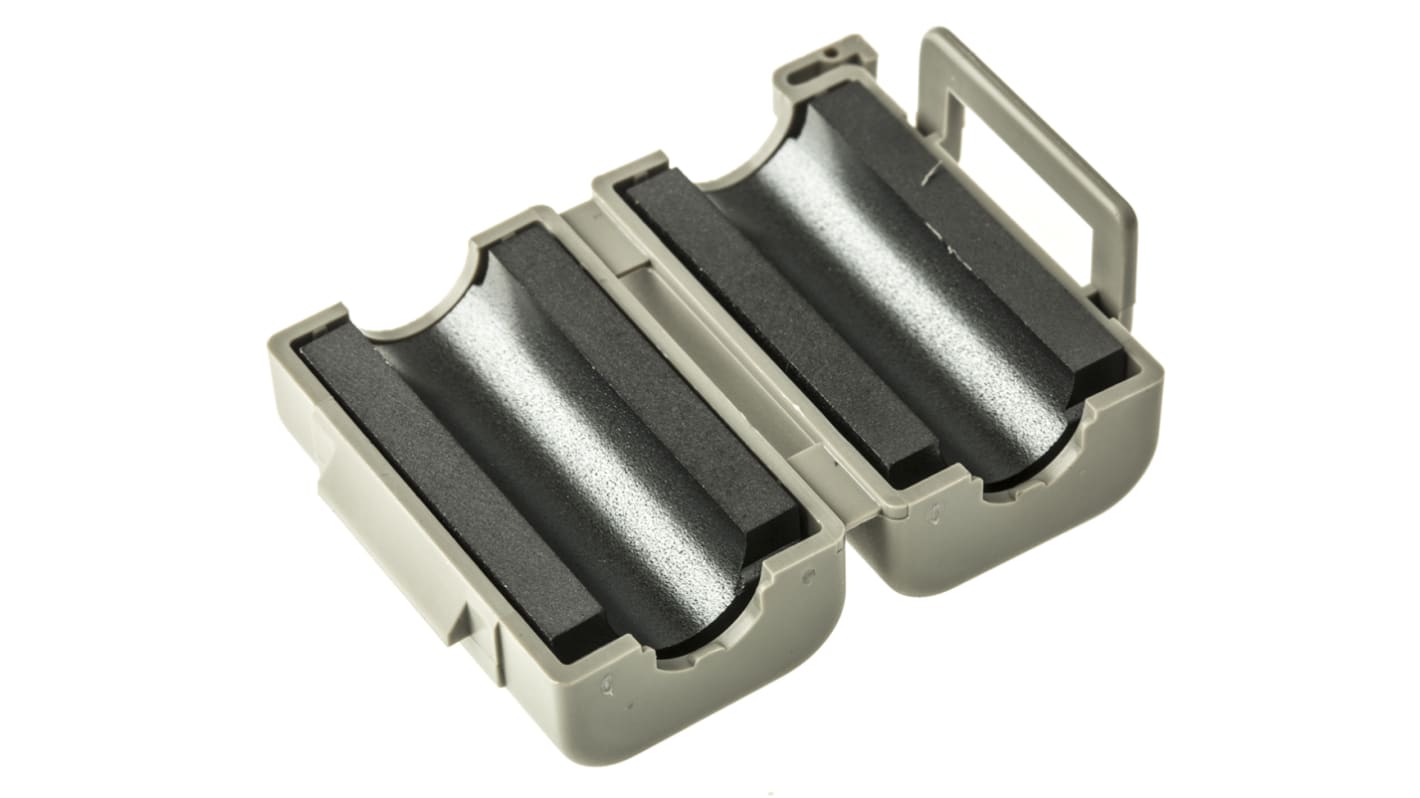

Essentra Openable Ferrite Sleeve, 19 x 20.8mm, For EMI Suppression, Apertures: 1, Diameter 8.5mm
- RS Stock No.:
- 222-4365
- Mfr. Part No.:
- MSFC8-T
- Brand:
- Essentra
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£4.66
(exc. VAT)
£5.59
(inc. VAT)
- RS Stock No.:
- 222-4365
- Mfr. Part No.:
- MSFC8-T
- Brand:
- Essentra
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Essentra | |
Type | Cable Core | |
Series | MSFC | |
Application | EMI Suppression | |
Material | A5 | |
Key | No | |
Impedance at 25 MHz | 49Ω | |
Openable | Yes | |
Impedance at 100 MHz | 97Ω | |
Outer Dimensions | 19 x 20.8mm | |
Aperture Diameter | 8.5mm | |
Number of Apertures | 1 | |
Outer Height | 20.8mm | |
Outer Width | 19mm | |
Select all | ||
---|---|---|
Brand Essentra | ||
Type Cable Core | ||
Series MSFC | ||
Application EMI Suppression | ||
Material A5 | ||
Key No | ||
Impedance at 25 MHz 49Ω | ||
Openable Yes | ||
Impedance at 100 MHz 97Ω | ||
Outer Dimensions 19 x 20.8mm | ||
Aperture Diameter 8.5mm | ||
Number of Apertures 1 | ||
Outer Height 20.8mm | ||
Outer Width 19mm | ||
- COO (Country of Origin):
- JP
Rectangular Snap Fixing Cable Ferrites
From Richco, these snap-fixing ferrite cores are designed to attach to cables in order to reduce electromagnetic interference from being induced or radiated. The ferrite is housed in a hinged nylon 66 carrier, which is simply snapped around cable and is supplied with a cable tie which can be used to prevent the ferrite sliding along cable when attached to the integral retaining lug.
Applications for Snap-Fixing Cable Ferrites:
Rectangular ferrites are suitable for data cables e.g. telephone or signal lines.
Circular ferrites are suitable for mains cables e.g. on photocopying machines, printers and other office equipment.
Circular ferrites are suitable for mains cables e.g. on photocopying machines, printers and other office equipment.
Split Ferrite Rings
These split ferrite cores reduce the electromagnetic interference from being induced in or radiated from data and power cables. High attenuation ratings are achieved with the housing design and the special process steps during the ferrite manufacture. The special snap lock makes the ferrite sleeve suitable for use with a variety of cable diameters and once the split ferrite is locked it cannot be opened accidentally.The outer housing is designed to protect the halves of the core from breakage and ensures simple assembly on to cables that are already installed or which have been fitted with connectors. Fixing to the cable with glue or cable tie is optional. Typical applications for these split ferrite cores include data or power lines used in computer technology, terminals, industrial controllers, medical engineering and office machines.
