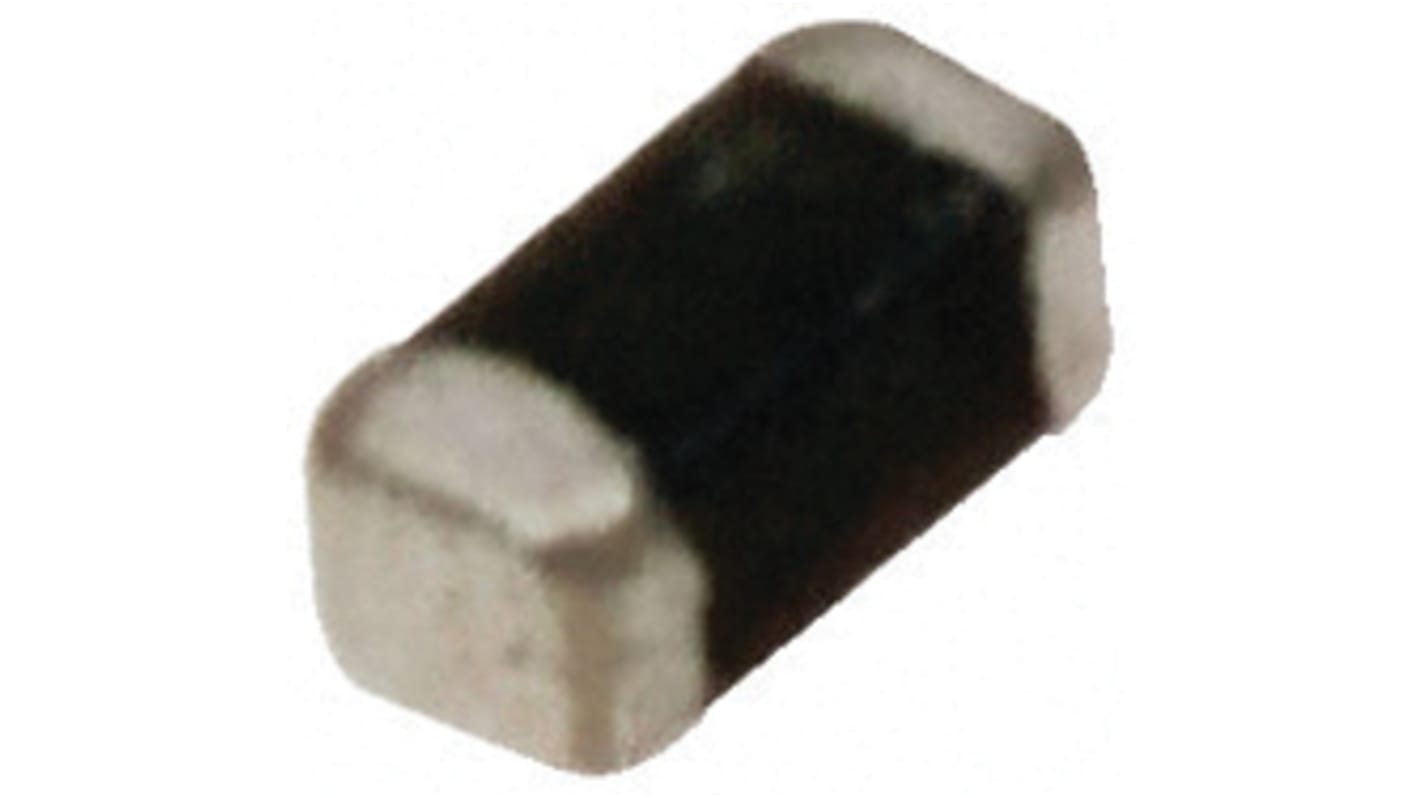

Murata Ferrite Bead (Chip Ferrite Bead), 1 x 0.5 x 0.5mm (0402 (1005M)), 470Ω impedance at 100 MHz, 1200Ω impedance at
- RS Stock No.:
- 839-0792
- Mfr. Part No.:
- BLM15GG471SN1D
- Brand:
- Murata
Bulk discount available
Subtotal (1 bag of 10 units)*
£2.26
(exc. VAT)
£2.71
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 2,940 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
---|---|---|
10 - 40 | £0.226 | £2.26 |
50 - 90 | £0.191 | £1.91 |
100 - 490 | £0.169 | £1.69 |
500 - 1990 | £0.148 | £1.48 |
2000 + | £0.138 | £1.38 |
*price indicative
- RS Stock No.:
- 839-0792
- Mfr. Part No.:
- BLM15GG471SN1D
- Brand:
- Murata
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Murata | |
Package Type | 0402 (1005M) | |
Impedance at 100 MHz | 470Ω | |
Impedance at 1 GHz | 1200Ω | |
Current Rating | 200mA | |
Type | Chip Ferrite Bead | |
Dimensions | 1 x 0.5 x 0.5mm | |
Length | 1mm | |
Depth | 0.5mm | |
Maximum DC Resistance | 1.3Ω | |
Height | 0.5mm | |
Material | Ferrite | |
Series | BLM15G | |
Application | EMI Suppression Filter, High-GHz Band General Use | |
Select all | ||
---|---|---|
Brand Murata | ||
Package Type 0402 (1005M) | ||
Impedance at 100 MHz 470Ω | ||
Impedance at 1 GHz 1200Ω | ||
Current Rating 200mA | ||
Type Chip Ferrite Bead | ||
Dimensions 1 x 0.5 x 0.5mm | ||
Length 1mm | ||
Depth 0.5mm | ||
Maximum DC Resistance 1.3Ω | ||
Height 0.5mm | ||
Material Ferrite | ||
Series BLM15G | ||
Application EMI Suppression Filter, High-GHz Band General Use | ||
- COO (Country of Origin):
- JP
SMD 0402 Ferrite Filters - BLM15G Series
BLM15G Series Chip ferrite beads for high frequency noise suppression over a wide frequency range.
Key Characteristic
High impedance characteristic in 1GHz or higher Frequency
High impedance characteristic over a wide frequency band range of 100MHz to 6GHz
Small decrease in impedance during current loading, resulting in small impedance fluctuation during equipment operation
High impedance characteristic over a wide frequency band range of 100MHz to 6GHz
Small decrease in impedance during current loading, resulting in small impedance fluctuation during equipment operation
Applications include: Noise suppression for PCs with high-speed CPU and high-speed bus, and for interface lines of peripheral equipment; High harmonic noise suppression for digital equipment with several hundred MHz or higher clock speeds; Prevention of erroneous operation caused by local oscillation signals in mobile phone and W-LAN modules (ensuring self-immunity); Bias Tee modules in optical transceivers
Note
For reflow soldering only
