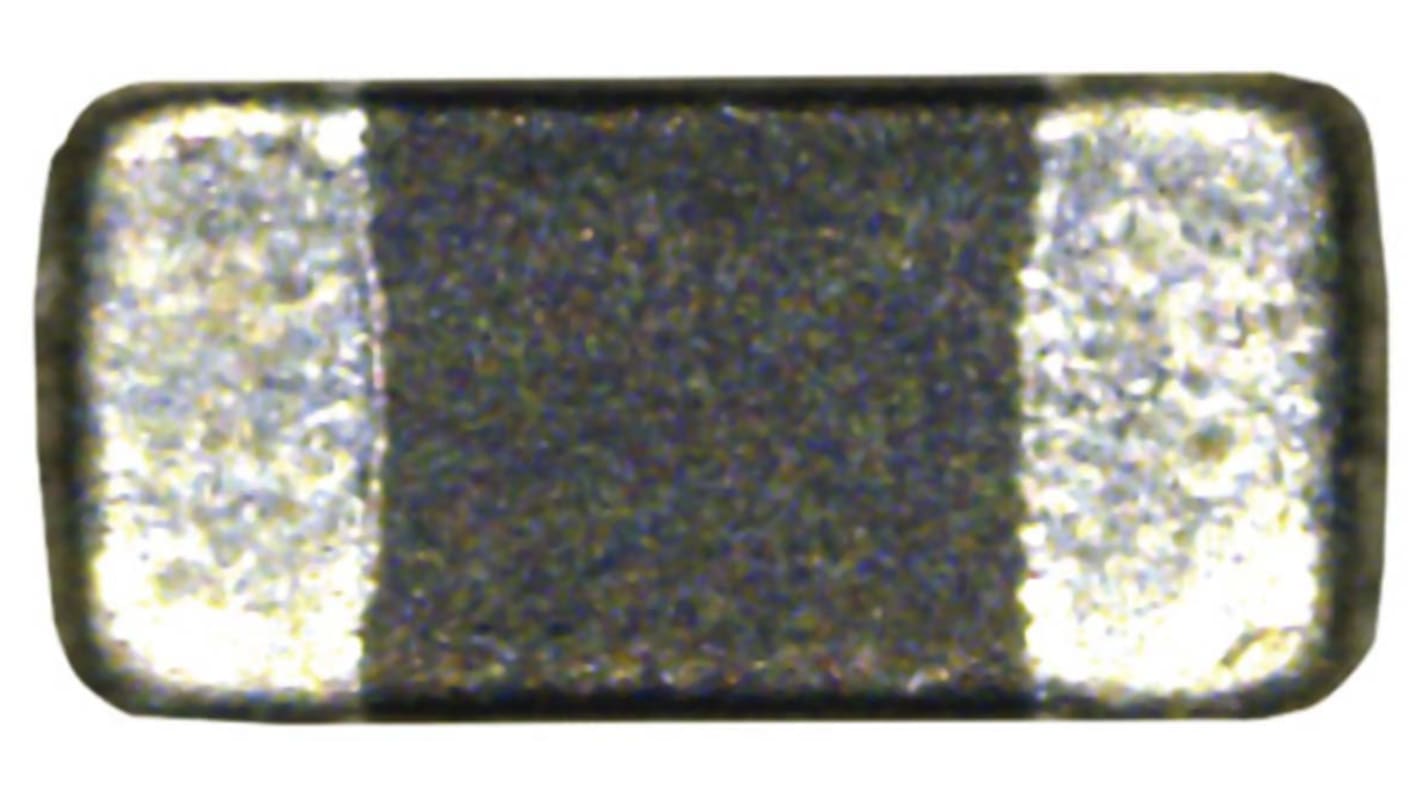

Murata Ferrite Bead (Chip Ferrite Bead), 1 x 0.5 x 0.5mm (0402 (1005M)), 1000Ω impedance at 100 MHz, 1400Ω impedance at
- RS Stock No.:
- 724-1286
- Mfr. Part No.:
- BLM15HG102SN1D
- Brand:
- Murata
575 In stock - FREE next working day delivery available
1775 available from Europe for delivery within 1 working day(s).
Added
Price Each (In a Pack of 25)
£0.057
(exc. VAT)
£0.068
(inc. VAT)
| Units | Per unit | Per Pack* |
| 25 - 475 | £0.057 | £1.425 |
| 500 - 975 | £0.048 | £1.20 |
| 1000 - 2475 | £0.043 | £1.075 |
| 2500 - 4975 | £0.037 | £0.925 |
| 5000 + | £0.034 | £0.85 |
| *price indicative | ||
- RS Stock No.:
- 724-1286
- Mfr. Part No.:
- BLM15HG102SN1D
- Brand:
- Murata
Technical Reference
Legislation and Compliance
Product Details
SMD 0402 Ferrite Filters- BLM15EG/HB/HD/HG/PD/PG/PX Series
BLM ferrite beads from Murata are ideal for use in circuits with unstable ground lines as they do not require a ground connection. These ferrite beads are designed to function nearly as resistors at noise frequencies, leaving signal wave forms undistorted and reducing the possibility of resonance. Excellent solder heat resistance is provided by the nickel barrier construction of the external electrodes.
BLM_P ferrite beads can match power lines to a maximum of 6A dc. With low DC resistance, BLM_P variants are ideal for high current circuits. BLM15EG models also provide low DC resistance.
This series of ferrite beads are suitable for general use applications.
BLM_P ferrite beads can match power lines to a maximum of 6A dc. With low DC resistance, BLM_P variants are ideal for high current circuits. BLM15EG models also provide low DC resistance.
This series of ferrite beads are suitable for general use applications.
Specifications
Attribute | Value |
|---|---|
| Package Type | 0402 (1005M) |
| Impedance at 100 MHz | 1000Ω |
| Impedance at 1 GHz | 1400Ω |
| Current Rating | 250mA |
| Type | Chip Ferrite Bead |
| Dimensions | 1 x 0.5 x 0.5mm |
| Length | 1mm |
| Depth | 0.5mm |
| Height | 0.5mm |
| Maximum DC Resistance | 1.1Ω |
| Application | EMI Suppression Filter, GHz Band General Use |
| Material | Ferrite |
| Series | BLM15HG |
- RS Stock No.:
- 724-1286
- Mfr. Part No.:
- BLM15HG102SN1D
- Brand:
- Murata
