Wurth Elektronik Ferrite Bead, 1 x 0.5 x 0.5mm (0402 (1005M)), 70Ω impedance at 100 MHz
- RS Stock No.:
- 146-0693
- Mfr. Part No.:
- 74279277
- Brand:
- Wurth Elektronik
Bulk discount available
Subtotal (1 pack of 50 units)*
£7.45
(exc. VAT)
£8.95
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 999,999,950 unit(s) shipping from 08 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
| Units | Per unit | Per Pack* |
|---|---|---|
| 50 - 100 | £0.149 | £7.45 |
| 150 - 250 | £0.138 | £6.90 |
| 300 - 450 | £0.131 | £6.55 |
| 500 - 700 | £0.124 | £6.20 |
| 750 + | £0.118 | £5.90 |
*price indicative
- RS Stock No.:
- 146-0693
- Mfr. Part No.:
- 74279277
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
| Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Package Type | 0402 (1005M) | |
| Impedance at 100 MHz | 70Ω | |
| Impedance at 500 MHz | 91Ω | |
| Current Rating | 500mA | |
| Type | Ferrite Bead | |
| Dimensions | 1 x 0.5 x 0.5mm | |
| Length | 1mm | |
| Depth | 0.5mm | |
| Height | 0.5mm | |
| Maximum DC Resistance | 150mΩ | |
| Material | Ferrite | |
| Application | Data Line Filter, Uncoupling of Distribution Voltage | |
| Series | WE-CBF | |
| Select all | ||
|---|---|---|
| Brand Wurth Elektronik | ||
| Package Type 0402 (1005M) | ||
| Impedance at 100 MHz 70Ω | ||
| Impedance at 500 MHz 91Ω | ||
| Current Rating 500mA | ||
| Type Ferrite Bead | ||
| Dimensions 1 x 0.5 x 0.5mm | ||
| Length 1mm | ||
| Depth 0.5mm | ||
| Height 0.5mm | ||
| Maximum DC Resistance 150mΩ | ||
| Material Ferrite | ||
| Application Data Line Filter, Uncoupling of Distribution Voltage | ||
| Series WE-CBF | ||
- COO (Country of Origin):
- TW

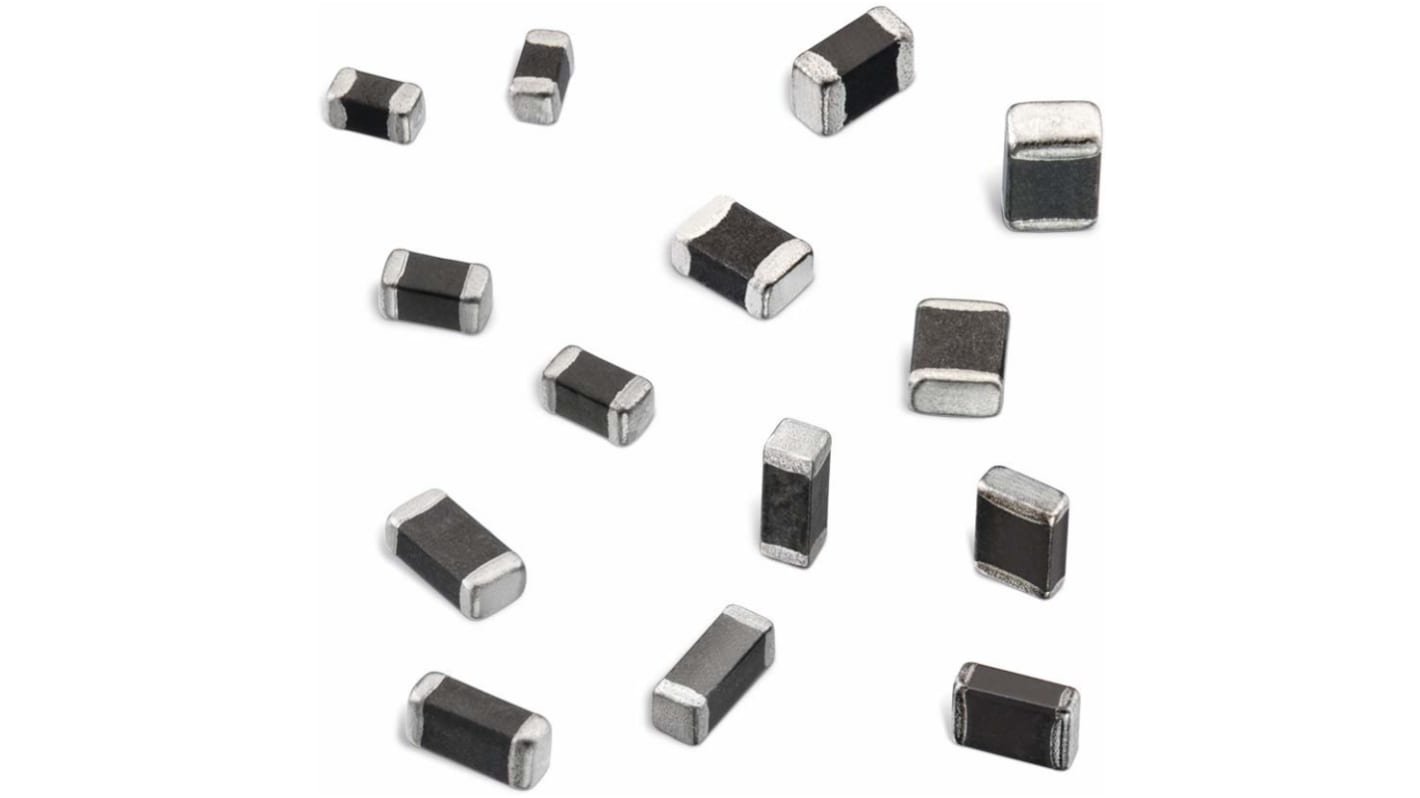

High-Speed Multilayer Ferrite SMD - WE-CBF Series
Excellent anti-EMI properties and low DC resistance
Placed very close next to the interference source even with smallest size 0402, maximum impedance 1000Ω
Reliable Ni-Sn electrodes
Ideal for data line filtering and voltage de-coupling
High rated current up to 6A
Recommended for reflow soldering
Placed very close next to the interference source even with smallest size 0402, maximum impedance 1000Ω
Reliable Ni-Sn electrodes
Ideal for data line filtering and voltage de-coupling
High rated current up to 6A
Recommended for reflow soldering
Applications:
High Speed:    USB 2.0, IEEE 1394, LVDS
Wide Band: Control signals, RS232, RS422, DC/DC converter, etc.
High Current: Current supply, DC/DC converter etc.
Wide Band: Control signals, RS232, RS422, DC/DC converter, etc.
High Current: Current supply, DC/DC converter etc.
The Wurth Elektronik WE-CBF is a SMT mount, EMI suppression ferrite bead with 91Ω maximum impedance. It is ideal for data line filter and uncoupling of distribution voltage.
Reliable Ni-Sn electrodes
High rated current up to 10 A
AEC-Q200 qualified
Operating temperature: –55°C to +125°C
High rated current up to 10 A
AEC-Q200 qualified
Operating temperature: –55°C to +125°C
