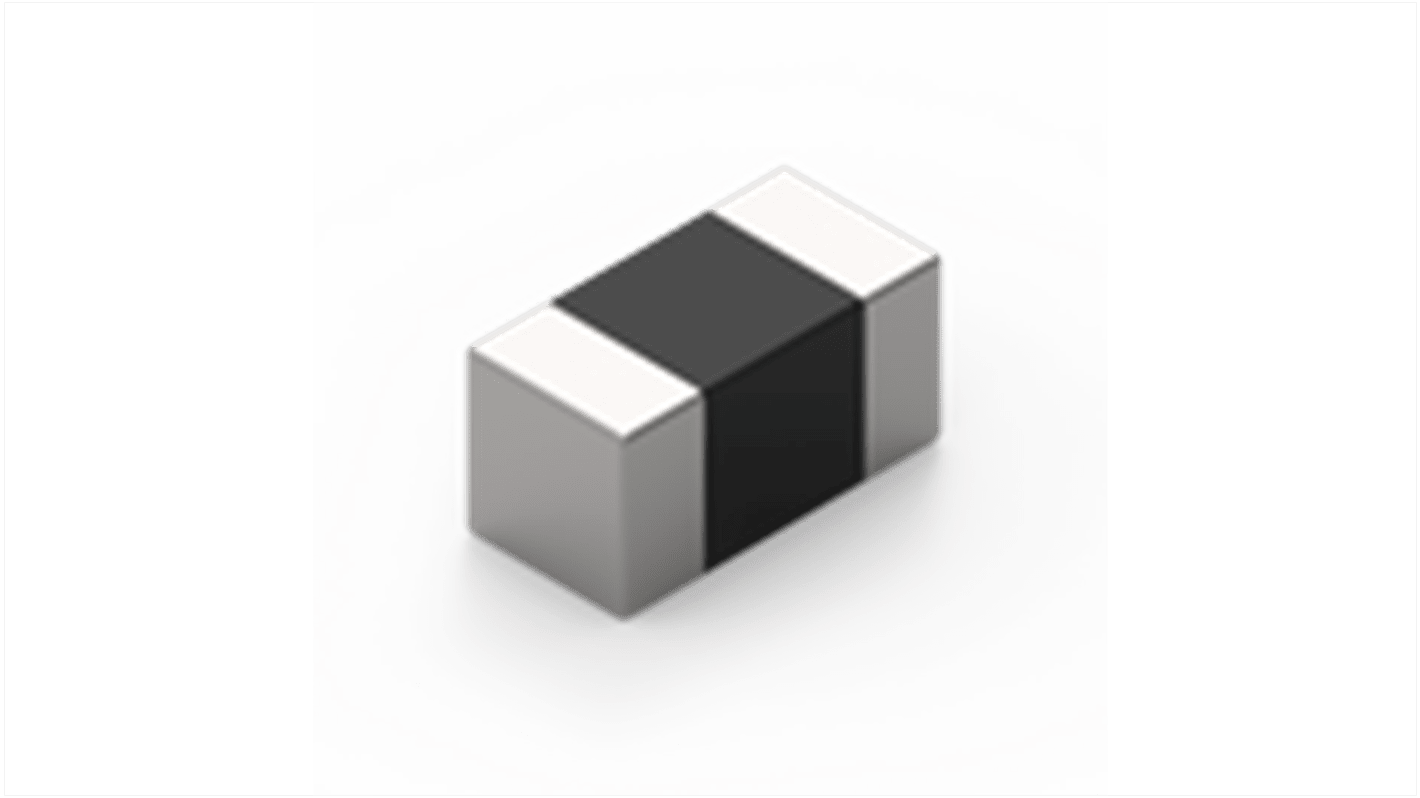

Wurth Elektronik Ferrite Bead 500 μm (0402) (Ferrite Bead), 460 Ω impedance at 100 MHz
- RS Stock No.:
- 219-681
- Mfr. Part No.:
- 782429461
- Brand:
- Wurth Elektronik
Get a bulk buy discount
Add 500 more to save £3.50
View bulk pricing optionsSubtotal (1 tape of 100 units)*
£14.70
(exc. VAT)
£17.60
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 10,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tape* | Saving |
|---|---|---|---|
| 100 - 400 | £0.147 | £14.70 | - |
| 500 - 900 | £0.14 | £14.00 | £3.50 |
| 1000 - 2400 | £0.134 | £13.40 | £13.00 |
| 2500 + | £0.129 | £12.90 | £45.00 |
*price indicative
- RS Stock No.:
- 219-681
- Mfr. Part No.:
- 782429461
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Package Type | 0402 | |
| Product Type | Ferrite Bead | |
| Impedance at 100 MHz | 460Ω | |
| Packaging | Tape & Reel | |
| Current Rating | 500mA | |
| Sub Type | Ferrite Bead | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 125°C | |
| Standards/Approvals | Halogen Free (JEDEC JS709B & IEC 61249-2-21), REACH Approval or declared (EC)1907/2006), RoHS Approval:(2011/65/EU&2015/863) | |
| Depth | 500μm | |
| Maximum DC Resistance | 0.55Ω | |
| Height | 500μm | |
| Length | 1mm | |
| Material | Potting Material | |
| Automotive Standard | AEC-Q200 Grade 1 | |
| Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Package Type 0402 | ||
Product Type Ferrite Bead | ||
Impedance at 100 MHz 460Ω | ||
Packaging Tape & Reel | ||
Current Rating 500mA | ||
Sub Type Ferrite Bead | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 125°C | ||
Standards/Approvals Halogen Free (JEDEC JS709B & IEC 61249-2-21), REACH Approval or declared (EC)1907/2006), RoHS Approval:(2011/65/EU&2015/863) | ||
Depth 500μm | ||
Maximum DC Resistance 0.55Ω | ||
Height 500μm | ||
Length 1mm | ||
Material Potting Material | ||
Automotive Standard AEC-Q200 Grade 1 | ||
- COO (Country of Origin):
- TW
The Wurth Elektronik Suppression Ferrite Bead is a high-performance component designed to suppress electromagnetic interference (EMI) in high-speed circuits. This component is suitable for automotive and industrial applications, offering high current capability, low DC resistance and compliance with global standards.
EMI suppression and noise reduction
High rated current up to 7.5 A
Available in 7 different sizes
Reliable Ni Sn electrodes
Operating temperature -55 degree C up to 125 degree C
AEC Q 200
