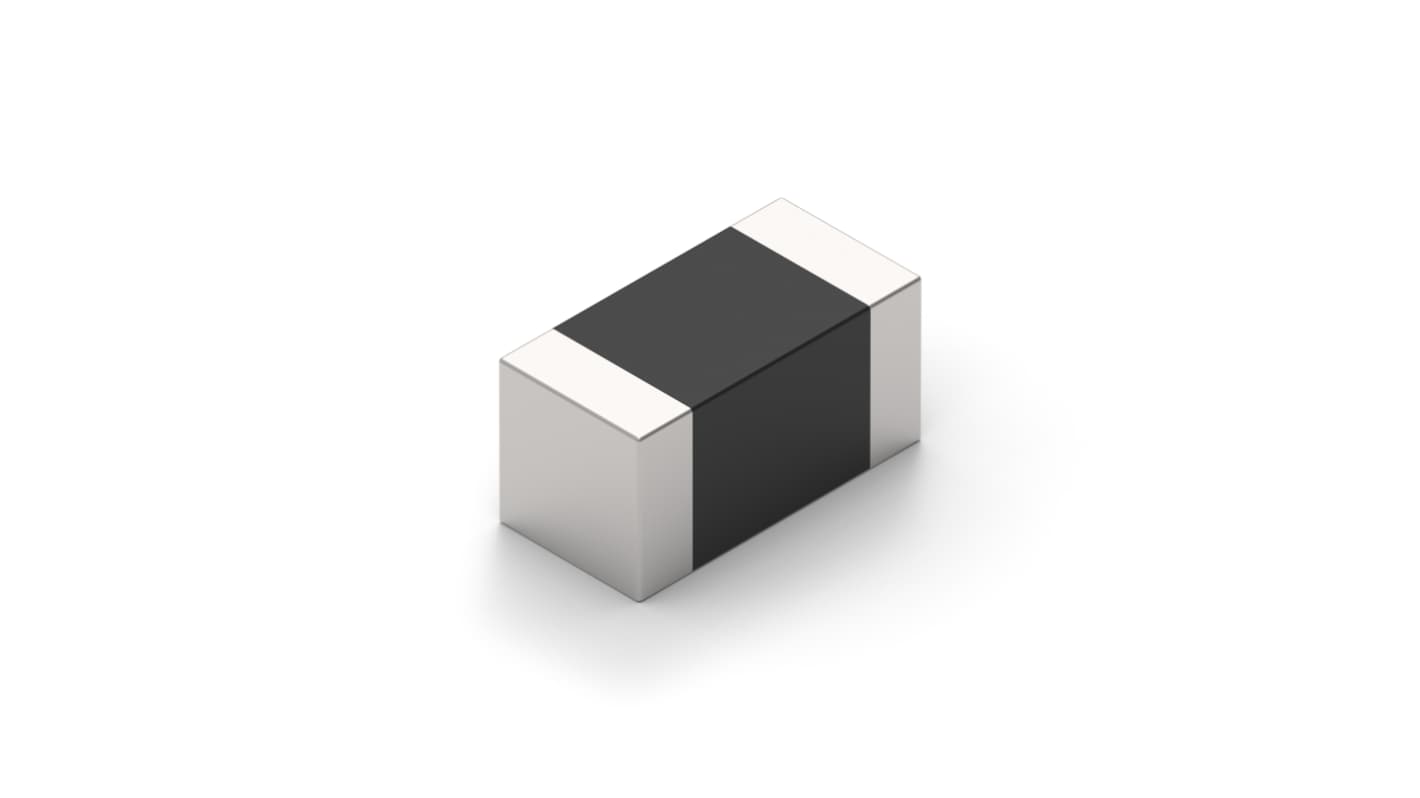

Wurth Elektronik Ferrite Bead 0.5 mm (0402), 220 Ω impedance at 100 MHz
- RS Stock No.:
- 332-498
- Mfr. Part No.:
- 782422221
- Brand:
- Wurth Elektronik
Subtotal (1 tape of 10 units)*
£0.28
(exc. VAT)
£0.34
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 50 unit(s) shipping from 26 February 2026
- Plus 50 unit(s) shipping from 02 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tape* |
|---|---|---|
| 10 + | £0.028 | £0.28 |
*price indicative
- RS Stock No.:
- 332-498
- Mfr. Part No.:
- 782422221
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Package Type | 0402 | |
| Product Type | Ferrite Bead | |
| Packaging | Tape & Reel | |
| Impedance at 100 MHz | 220Ω | |
| Impedance at 500 MHz | 330Ω | |
| Current Rating | 400 mA | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | 863, REACH, Halogen Free JEDEC JS709B and others, RoHS 2011, EU&2015 | |
| Height | 0.5mm | |
| Length | 1mm | |
| Maximum DC Resistance | 0.3Ω | |
| Depth | 0.5mm | |
| Automotive Standard | AEC-Q200 Grade 1 | |
| Material | Polystyrene | |
| Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Package Type 0402 | ||
Product Type Ferrite Bead | ||
Packaging Tape & Reel | ||
Impedance at 100 MHz 220Ω | ||
Impedance at 500 MHz 330Ω | ||
Current Rating 400 mA | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals 863, REACH, Halogen Free JEDEC JS709B and others, RoHS 2011, EU&2015 | ||
Height 0.5mm | ||
Length 1mm | ||
Maximum DC Resistance 0.3Ω | ||
Depth 0.5mm | ||
Automotive Standard AEC-Q200 Grade 1 | ||
Material Polystyrene | ||
- COO (Country of Origin):
- TW
The Wurth Elektronik SMT EMI Suppression Ferrite Bead is a high performance component. It offers exceptional noise suppression with high impedance and supports high current handling.
Optimized for wideband and high speed performance
RoHS compliant
Halogen Free and REACH approved
Operating temperature is -55 degree Celsius to 125 degree Celsius
