Wurth Elektronik Ferrite Bead, 3.2 x 1.6 x 1.1mm (1206), 500Ω impedance at 100 MHz

View all Ferrite Beads

Subtotal (1 reel of 3000 units)*

£432.00

(exc. VAT)

£519.00

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 3,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Reel*
3000 +£0.144£432.00

*price indicative

RS Stock No.:
144-9804
Mfr. Part No.:
742792116
Brand:
Wurth Elektronik
Find similar products by selecting one or more attributes.
Select all

Brand

Wurth Elektronik

Package Type

1206

Impedance at 100 MHz

500Ω

Current Rating

2.5A

Type

Ferrite Bead

Dimensions

3.2 x 1.6 x 1.1mm

Length

3.2mm

Depth

1.6mm

Maximum DC Resistance

0.06Ω

Height

1.1mm

Material

Ferrite

Series

WE-CBF

Application

Anti EMI, Control Signals, DC/DC Converter, Fast Bus Signals, HDD, High Current, High Frequency, High Speed, Line Filter, LVDS, Power Supply, RS232, RS422, USB 2.0

COO (Country of Origin):
TW

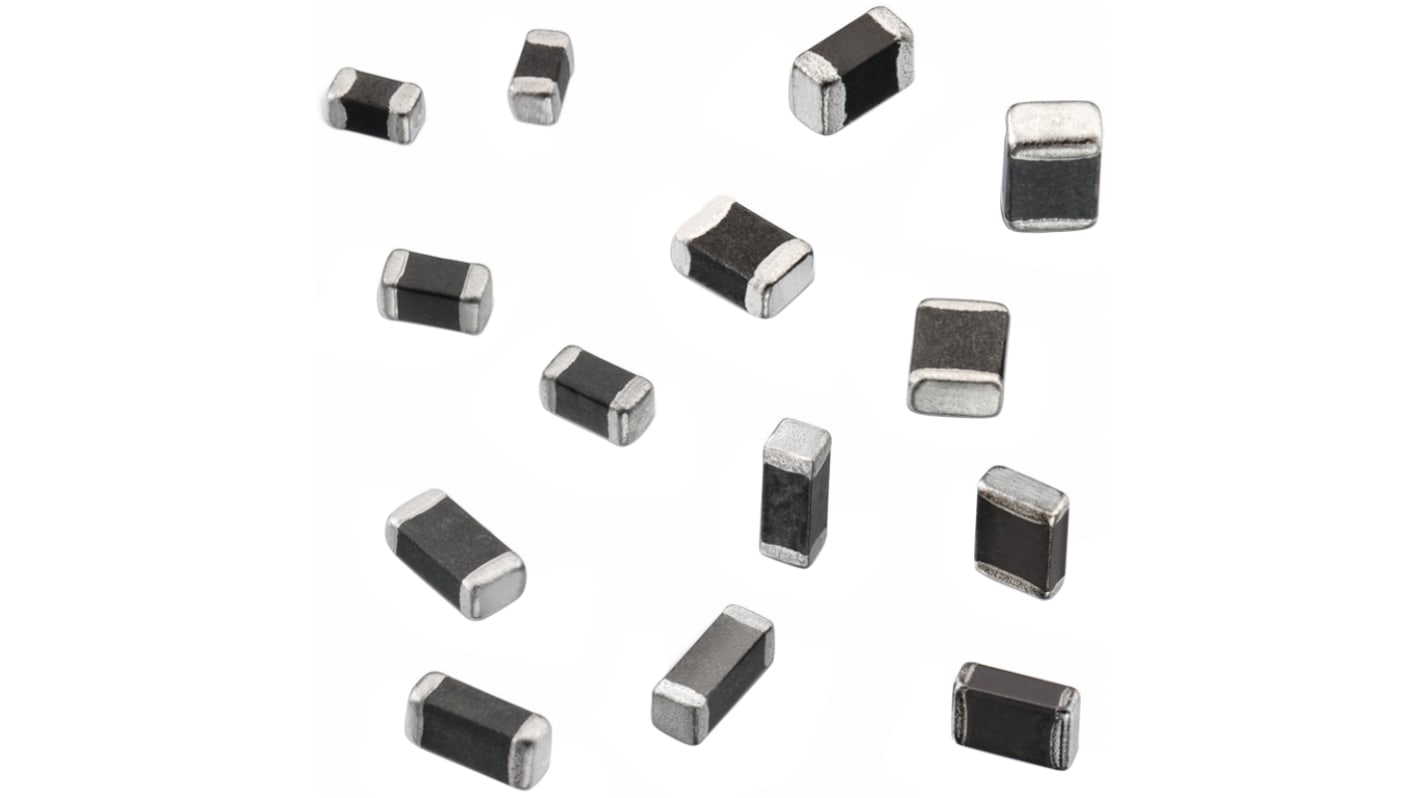

High-Speed Multilayer Ferrite SMD - WE-CBF Series


Excellent anti-EMI properties and low DC resistance
Placed very close next to the interference source even with smallest size 0402, maximum impedance 1000Ω
Reliable Ni-Sn electrodes
Ideal for data line filtering and voltage de-coupling
High rated current up to 6A
Recommended for reflow soldering

Applications:


High Speed: USB 2.0, IEEE 1394, LVDS
Wide Band: Control signals, RS232, RS422, DC/DC converter, etc.
High Current: Current supply, DC/DC converter etc.
