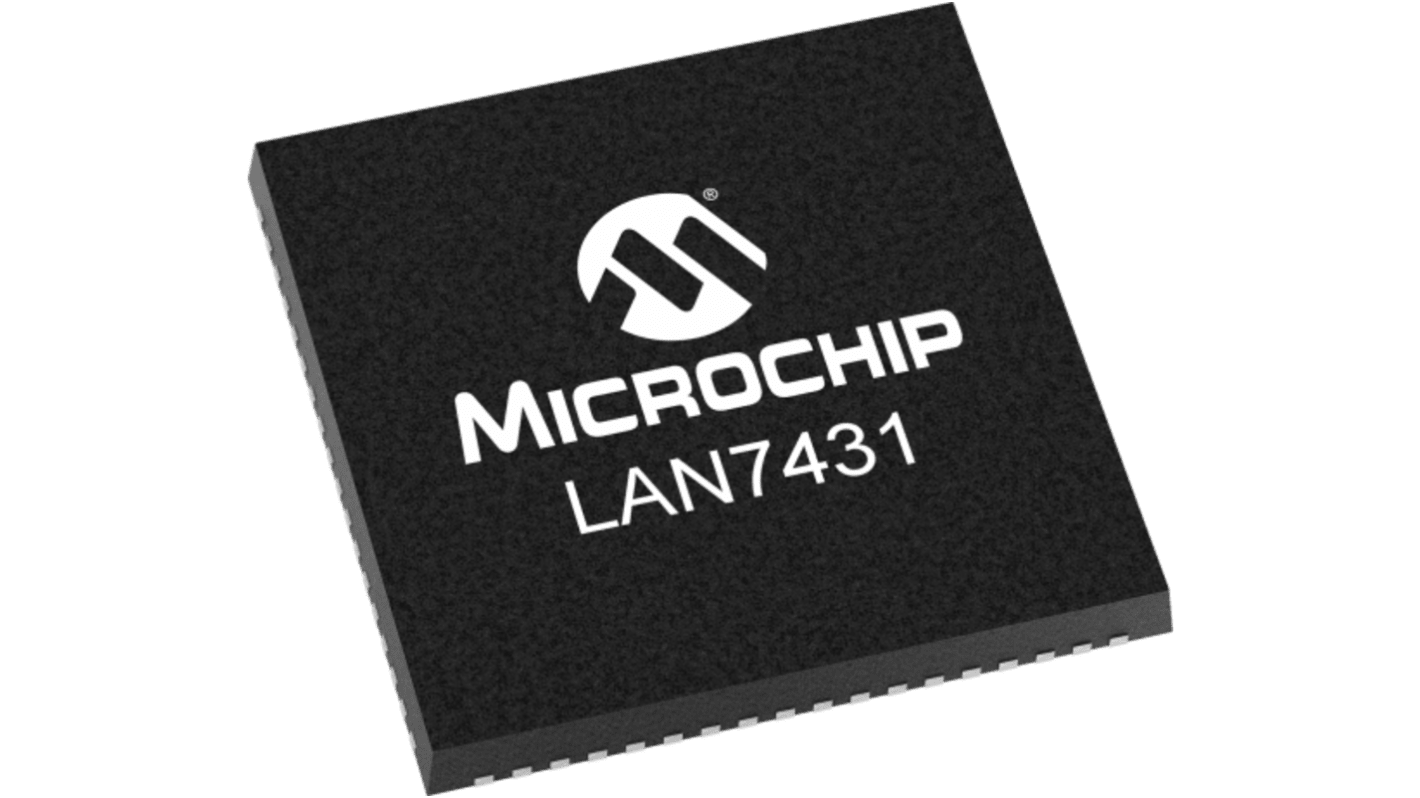

Microchip LAN7431/YXX, Ethernet Controller, 3.3 V 1000 Mbps PCI, 72-Pin 3.3 V VQFN

View all Ethernet Interface Ics
Bulk discount available

Subtotal (1 unit)*

£7.67

(exc. VAT)

£9.20

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 168 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 9£7.67
10 +£6.90

*price indicative

RS Stock No.:
352-098
Mfr. Part No.:
LAN7431/YXX
Brand:
Microchip
Find similar products by selecting one or more attributes.
Select all

Brand

Microchip

Maximum Data Rate

1000Mbps

Product Type

Ethernet Controller

Interface Type

PCI

Package Type

VQFN

Pin Count

72

Maximum Supply Voltage

3.3V

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

85°C

Standards/Approvals

ISO/IEC 8802-3 (ANSI/IEEE standard) and ANSI/IEEE 802.3 standards, RoHS

Minimum Supply Voltage

3.3V

Length

10mm

Width

10 mm

Automotive Standard

AEC-Q100 Grade 3

The Microchip Reduced Gigabit Media Independent Interface (RGMII) Gigabit Networking bridge providing an ultra-high-performance and cost-effective PCIe to Ethernet connectivity solution. LAN7431 contains an integrated RGMII interface, PCIe PHY, PCIe endpoint controller, 10/100/1000 Gigabit Ethernet MAC, Integrated OTP, JTAG TAP and EEPROM controller. PCIe-based networking provides flexibility for the routing and placement of network connections anywhere in the system. Specific enhancements for PCIe LPSS (Low Power Sub-States) L1.1 and LPSS L1.2 have been integrated to lower system power consumption. LAN7431 is available with a wide range of drivers including.

PCIe Low Power Sub State LPSS L1.1 snooze & L1.2 off

Requires only a single 25MHz crystal or single ended clock

9K jumbo frames are supported

Internal OTP memory to remove the need for external EEPROM

Windows OneCore with WHQL Certification

Linux driver in mainline kernel

QNX Support Package
