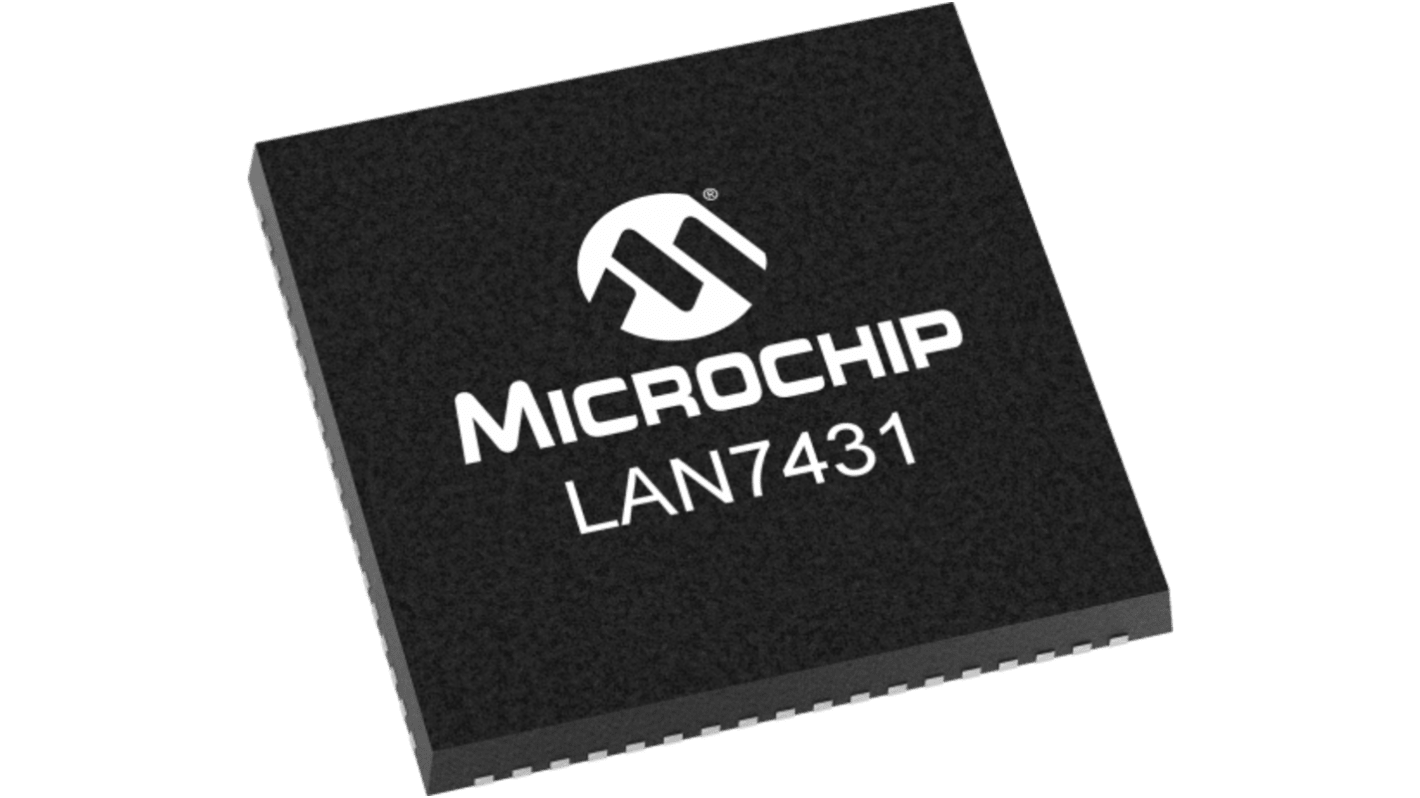

Microchip LAN7431-V/YXX, Ethernet Controller, 1000Mbps RGMII, PCI, 3.3 V, 72-Pin VQFN

View all Ethernet Interface Ics
Bulk discount available

Subtotal (1 unit)*

£7.41

(exc. VAT)

£8.89

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 168 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 9£7.41
10 +£6.67

*price indicative

RS Stock No.:
352-097
Mfr. Part No.:
LAN7431-V/YXX
Brand:
Microchip
Find similar products by selecting one or more attributes.
Select all

Brand

Microchip

Physical Network Type

IEEE 1588v2

Host Interface

PCI

IC Type

Controller IC

Network Interface

RGMII

Data Rate

1000Mbps

Package Type

VQFN

Pin Count

72

Typical Operating Supply Voltage

3.3 V

The Microchip Reduced Gigabit Media Independent Interface (RGMII) Gigabit Networking bridge providing an ultra-high-performance and cost-effective PCIe to Ethernet connectivity solution. LAN7431 contains an integrated RGMII interface, PCIe PHY, PCIe endpoint controller, 10/100/1000 Gigabit Ethernet MAC, Integrated OTP, JTAG TAP and EEPROM controller. PCIe-based networking provides flexibility for the routing and placement of network connections anywhere in the system. Specific enhancements for PCIe LPSS (Low Power Sub-States) L1.1 and LPSS L1.2 have been integrated to lower system power consumption. LAN7431 is available with a wide range of drivers including.

PCIe Low Power Sub State LPSS L1.1 snooze & L1.2 off
Requires only a single 25MHz crystal or single ended clock
9K jumbo frames are supported
Internal OTP memory to remove the need for external EEPROM
Windows OneCore with WHQL Certification
Linux driver in mainline kernel
QNX Support Package
