Molex Premise Networks RSMMS-00017-02 Series RJ45 Connector Female, Surface STP Shield Angled 1 Port

View all Ethernet Connectors
Bulk discount available

Subtotal (1 unit)*

£10.30

(exc. VAT)

£12.36

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 5 unit(s) shipping from 27 April 2026
  • Plus 28 unit(s) shipping from 10 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units
Per unit
1 - 14£10.30
15 - 49£9.74
50 +£9.35

*price indicative

RS Stock No.:
768-5273
Mfr. Part No.:
MMS-00017-02
Brand:
Molex Premise Networks
Find similar products by selecting one or more attributes.
Select all

Brand

Molex Premise Networks

Ethernet Connector Type

RJ45

Product Type

RJ45 Connector

Number of Ports

1

Mount Type

Surface

Connector Gender

Female

Connector Type

RJ45

Shield Type

STP

Orientation

Angled

Magnetic

No

LED

No

Termination Type

Crimp

Light Pipes

No

Standards/Approvals

No

Width

22mm

Series

RSMMS-00017-02

Hazardous Area Certification

NO

Depth

44mm

Length

37.5mm

Contact Material

Copper Alloy

Contact Plating

Gold over Nickel

COO (Country of Origin):
TW

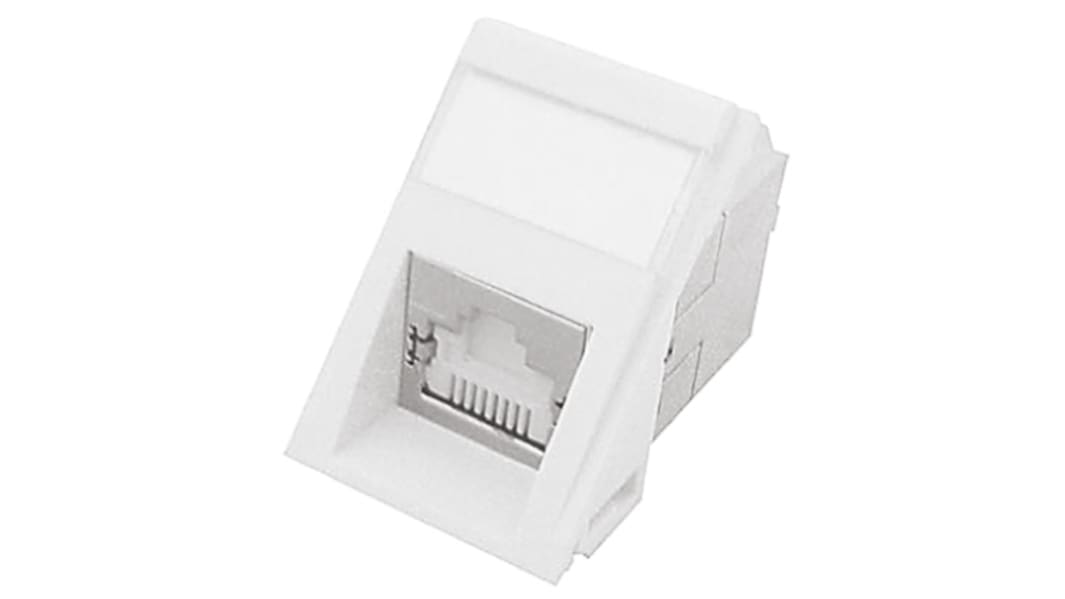

PowerCat™ Cat6a Angled MOD-SNAP III 568B Shielded RJ45 Module


PowerCat™ cat6a Angled MOD-SNAP III 568B shielded RJ45 module for use in shielded cable systems. This PowerCat™ cat6a MOD-SNAP III RJ45 module is floor box and wall plate compatible and features a shuttered 360° die-cast shielded DataGate™ cat6a RJ45 connector in an angled white plastic 37.5 x 22mm fascia. The DataGate™ cat6e RJ45 connector offers alien crosstalk suppression, insertion loss and provides enhanced (EMI) protection. The spring loaded shutter of the DataGate™ RJ45 connector protects against contamination and also serves to eject improperly seated patch cords. The DataGate™ connector is dual colour coded for either 568A or 568B wiring schedules and is backwards compatible with shielded cat6 and cat5e systems. ThePowerCat™ cat6a MOD-SNAP III RJ45 module has an angled fascia that reduces the bend radius of patch cords when used in shallow floor box installations. This PowerCat™ MOD-SNAP III cat6a RJ45 module can also be used in the MOD-SNAP™ range of wall plates (see stock number 482-288 typically). The minimum back box depth requirement for this RJ45 module is 44mm.

Note

Category 6A performance when installed as a complete PowerCat™ cat6a shielded system.

Standards

TIA/EIA-568-B.2-10
ISO/IEC 11801 A1.1
FCC Subpart F 68.5
IEC-603-7
