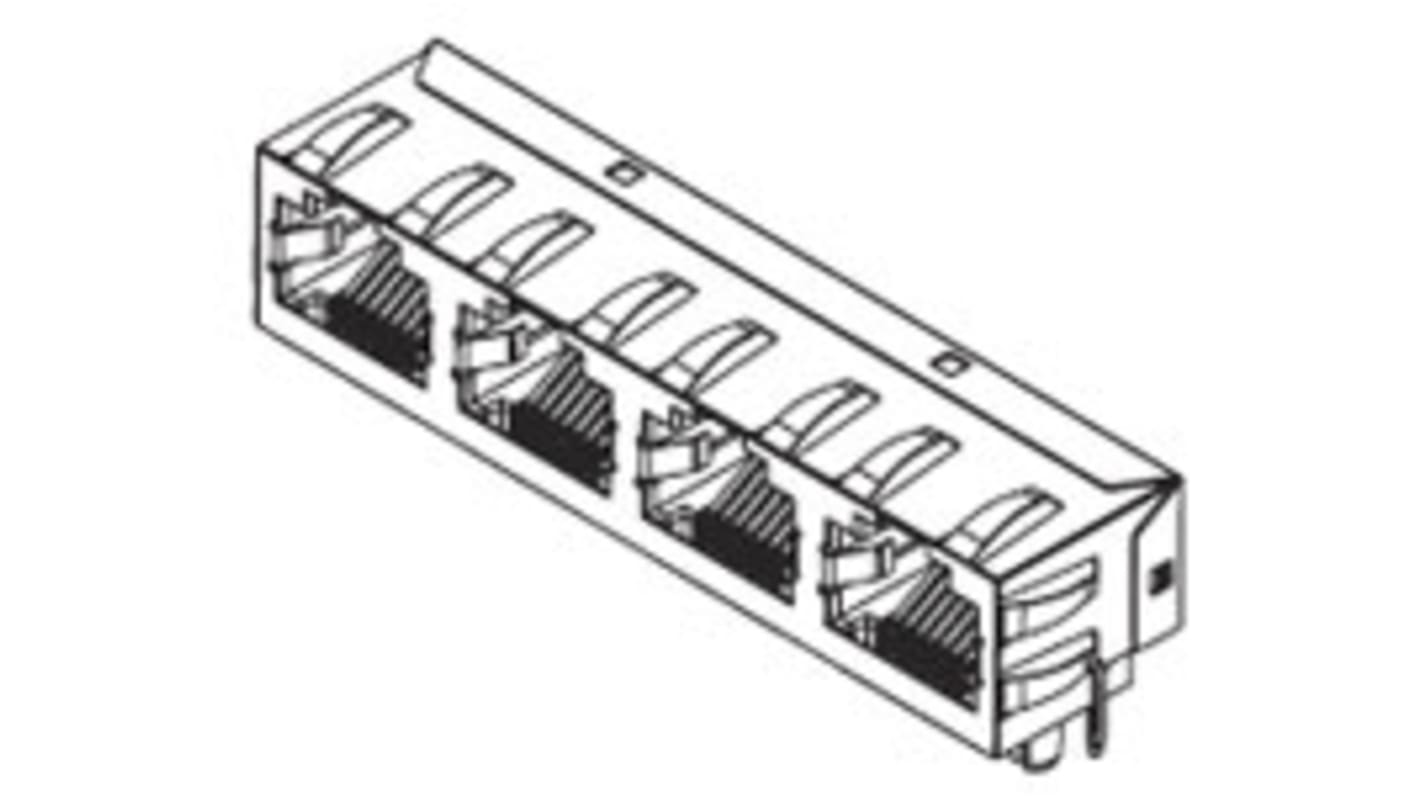

Molex 44248 Series RJ45 Connector Female, Through Hole, Cat3 Shielded Right Angle 4 Port 8 Way
- RS Stock No.:
- 178-9306
- Distrelec Article No.:
- 304-62-239
- Mfr. Part No.:
- 44248-0030
- Brand:
- Molex
Subtotal (1 box of 160 units)*
£2,877.76
(exc. VAT)
£3,453.28
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 19 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
|---|---|---|
| 160 + | £17.986 | £2,877.76 |
*price indicative
- RS Stock No.:
- 178-9306
- Distrelec Article No.:
- 304-62-239
- Mfr. Part No.:
- 44248-0030
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Product Type | RJ45 Connector | |
| Ethernet Connector Type | RJ45 | |
| LAN Category | Cat3 | |
| Mount Type | Through Hole | |
| Number of Ports | 4 | |
| Number of Ways | 8 | |
| Connector Type | Modular Jack | |
| Connector Gender | Female | |
| Shield Type | Shielded | |
| Orientation | Right Angle | |
| Magnetic | No | |
| LED | No | |
| Light Pipes | Yes | |
| Termination Type | Solder | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | No | |
| Hazardous Area Certification | No | |
| Length | 63.86mm | |
| Depth | 15.47mm | |
| Series | 44248 | |
| Width | 13.45mm | |
| Contact Material | Phosphor Bronze | |
| Contact Plating | Gold, Tin | |
| Select all | ||
|---|---|---|
Brand Molex | ||
Product Type RJ45 Connector | ||
Ethernet Connector Type RJ45 | ||
LAN Category Cat3 | ||
Mount Type Through Hole | ||
Number of Ports 4 | ||
Number of Ways 8 | ||
Connector Type Modular Jack | ||
Connector Gender Female | ||
Shield Type Shielded | ||
Orientation Right Angle | ||
Magnetic No | ||
LED No | ||
Light Pipes Yes | ||
Termination Type Solder | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals No | ||
Hazardous Area Certification No | ||
Length 63.86mm | ||
Depth 15.47mm | ||
Series 44248 | ||
Width 13.45mm | ||
Contact Material Phosphor Bronze | ||
Contact Plating Gold, Tin | ||
- COO (Country of Origin):
- CN
Modular Jack, Right-Angle, Low Profile, Inverted, Lightpipes, 8/8, 4 Ports
