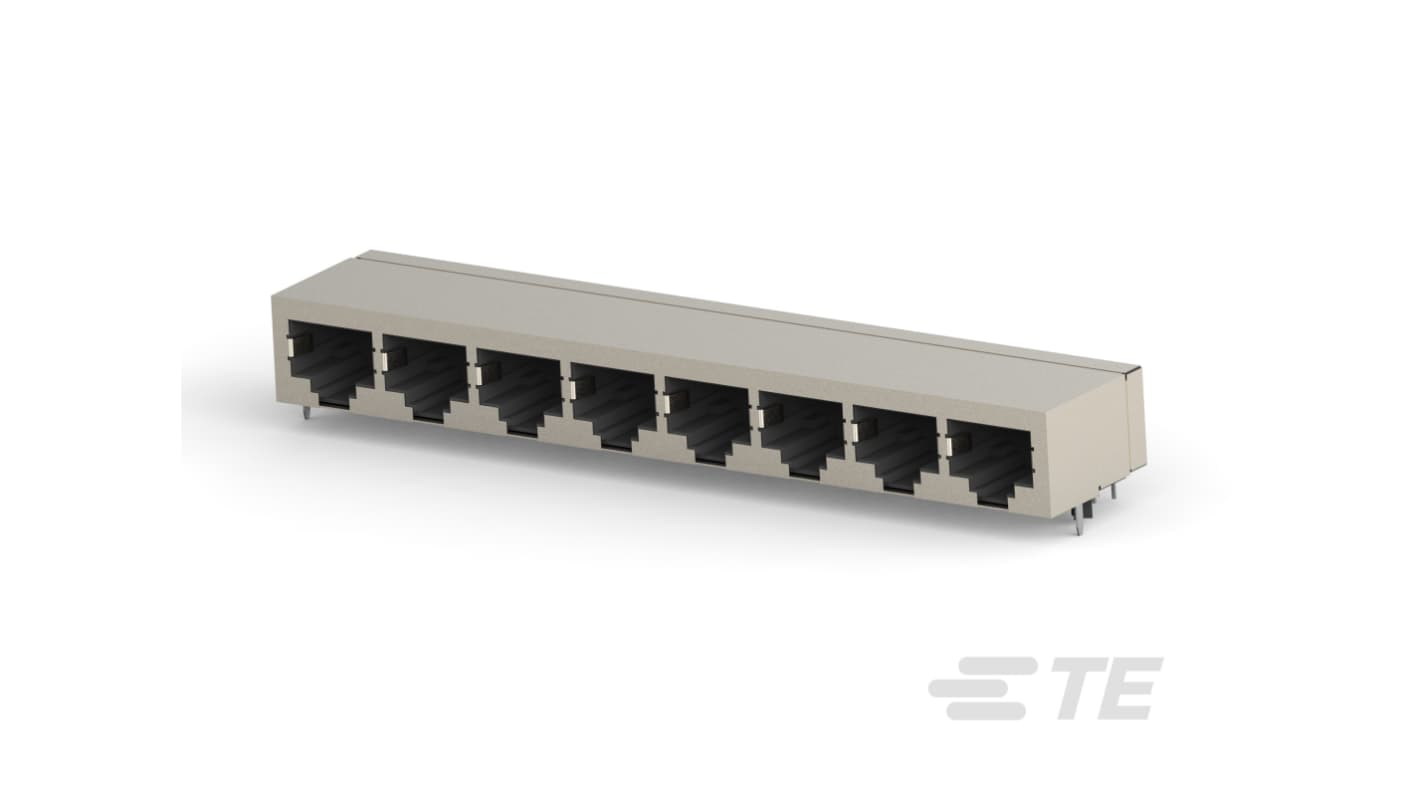

TE Connectivity OEG Miniature Relay PCF Series Ethernet Connector, PCB, Cat5e Shielded Right Angle 8 Way
- RS Stock No.:
- 467-326
- Distrelec Article No.:
- 304-52-077
- Mfr. Part No.:
- 5558505-1
- Brand:
- TE Connectivity
Subtotal (1 tray of 8 units)*
£170.81
(exc. VAT)
£204.97
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 01 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tray(s) | Per Tray | Per unit* |
|---|---|---|
| 1 + | £170.81 | £21.351 |
*price indicative
- RS Stock No.:
- 467-326
- Distrelec Article No.:
- 304-52-077
- Mfr. Part No.:
- 5558505-1
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Ethernet Connector Type | RJ45 | |
| Product Type | Ethernet Connector | |
| LAN Category | Cat5e | |
| Mount Type | PCB | |
| Number of Ways | 8 | |
| Connector Type | Jack | |
| Shield Type | Shielded | |
| Orientation | Right Angle | |
| Minimum Operating Temperature | -40°C | |
| Termination Type | Solder | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | China RoHS 2, EU ELV, EU RoHS, UL 94V-0 | |
| Hazardous Area Certification | NO | |
| Series | OEG Miniature Relay PCF | |
| Contact Material | Phosphor Bronze | |
| Contact Plating | Gold | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Ethernet Connector Type RJ45 | ||
Product Type Ethernet Connector | ||
LAN Category Cat5e | ||
Mount Type PCB | ||
Number of Ways 8 | ||
Connector Type Jack | ||
Shield Type Shielded | ||
Orientation Right Angle | ||
Minimum Operating Temperature -40°C | ||
Termination Type Solder | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals China RoHS 2, EU ELV, EU RoHS, UL 94V-0 | ||
Hazardous Area Certification NO | ||
Series OEG Miniature Relay PCF | ||
Contact Material Phosphor Bronze | ||
Contact Plating Gold | ||
The TE Connectivity Miniature Relay PCF stands out in the realm of connectivity solutions, specifically designed for precise networking applications. This innovative product combines reliability and efficiency, making it ideal for demanding environments. Featuring RJ45 connectors, this modular jack assembly excels in managing multiple ports with a 1 x 8 configuration, ensuring seamless integration into various devices. The ganged, shielded design further enhances signal integrity, positioning it as an excellent choice for Cat 5e standards. With a robust construction crafted from high-temperature nylon and a compact profile, it fits effortlessly within constrained spaces while maintaining optimal performance even in harsh conditions. This product is poised to meet the needs of engineers and technicians alike, delivering exceptional durability and compliance with the latest industry standards.
Designed for efficient signal transmission and reduced interference
Perfect for applications requiring multiple port configurations
Ganged construction allows for effective space management
Compatible with standard PCB mounting for easy installations
Robust shielding to protect against external electromagnetic interference
Constructed from high-temperature materials to withstand rigorous conditions
UL 94V-0 rating highlights fire safety compliance
Easy to troubleshoot with no status indicator to manage
Wave solder capability enhances manufacturing efficiency
Supports a wide operating temperature range, making it adaptable
