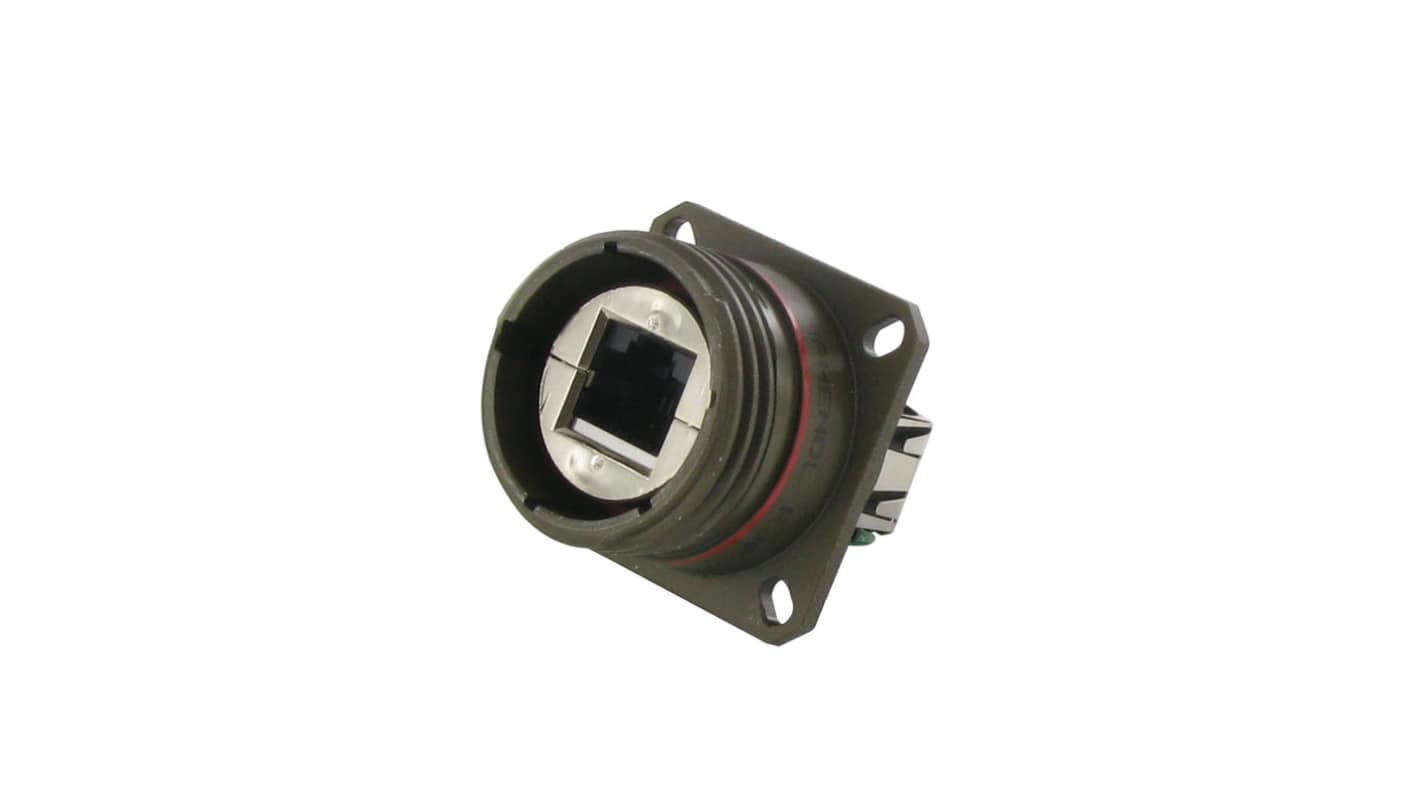

Amphenol Socapex RJF TV6A Series Ethernet Connector Female, Flange, Cat6a Straight 1 Port 8 Way
- RS Stock No.:
- 271-488
- Distrelec Article No.:
- 302-64-082
- Mfr. Part No.:
- RJFTV6A2SA1N
- Brand:
- Amphenol Socapex
Subtotal (1 unit)*
£94.68
(exc. VAT)
£113.62
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 24 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £94.68 |
*price indicative
- RS Stock No.:
- 271-488
- Distrelec Article No.:
- 302-64-082
- Mfr. Part No.:
- RJFTV6A2SA1N
- Brand:
- Amphenol Socapex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Amphenol Socapex | |
| Product Type | Ethernet Connector | |
| Ethernet Connector Type | RJ45 | |
| LAN Category | Cat6a | |
| Mount Type | Flange | |
| Number of Ports | 1 | |
| Number of Ways | 8 | |
| Connector Type | RJ45 | |
| Connector Gender | Female | |
| Orientation | Straight | |
| IP Rating | IP68 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Series | RJF TV6A | |
| Width | 31.55mm | |
| Length | 35.3mm | |
| Depth | 35.3mm | |
| Standards/Approvals | RoHS, ISO/IEC11801 standard | |
| Hazardous Area Certification | NO | |
| Contact Material | Zinc | |
| Contact Plating | Nickel Plated, Black Zinc Nickel | |
| Select all | ||
|---|---|---|
Brand Amphenol Socapex | ||
Product Type Ethernet Connector | ||
Ethernet Connector Type RJ45 | ||
LAN Category Cat6a | ||
Mount Type Flange | ||
Number of Ports 1 | ||
Number of Ways 8 | ||
Connector Type RJ45 | ||
Connector Gender Female | ||
Orientation Straight | ||
IP Rating IP68 | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Series RJF TV6A | ||
Width 31.55mm | ||
Length 35.3mm | ||
Depth 35.3mm | ||
Standards/Approvals RoHS, ISO/IEC11801 standard | ||
Hazardous Area Certification NO | ||
Contact Material Zinc | ||
Contact Plating Nickel Plated, Black Zinc Nickel | ||
The Amphenol Socapex Cat6A Ethernet Connectors deliver reliable Class Ea/Cat 6A connections for 10 BaseT to 10G BaseT networks up to 500 MHz in harsh conditions. Featuring the patented RJStop system, they ensure secure protection against shocks, dust, and fluids using standard RJ45 cables, eliminating the need for on-field cabling or grounding.
No cabling operation in field and no tools required
Mechanical coding
Improved EMI protection
