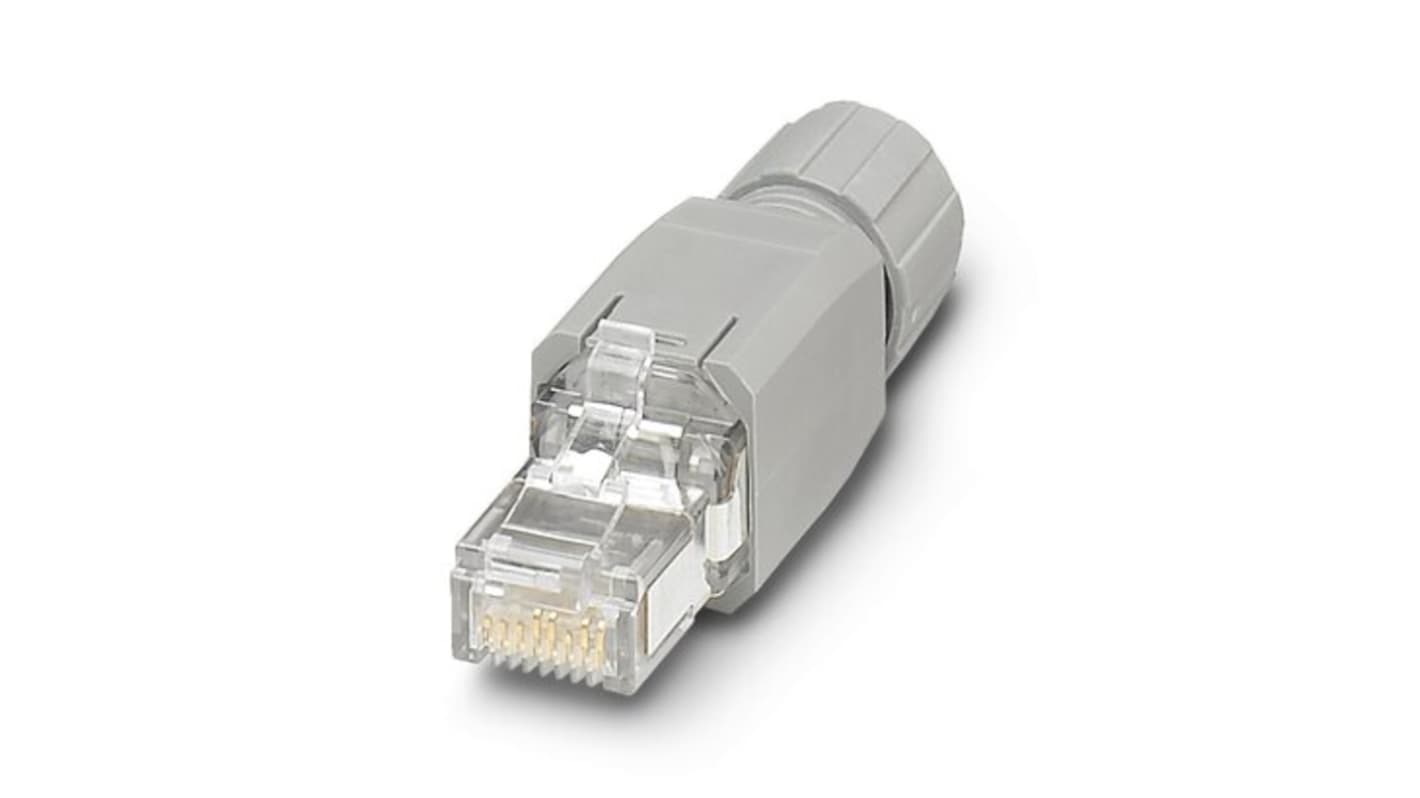

Phoenix Contact VS Series RJ45 Connector Male, Cat5 Straight 1 Port
- RS Stock No.:
- 269-387
- Mfr. Part No.:
- 1402410
- Brand:
- Phoenix Contact
Subtotal (1 unit)*
£24.17
(exc. VAT)
£29.00
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 19 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £24.17 |
*price indicative
- RS Stock No.:
- 269-387
- Mfr. Part No.:
- 1402410
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Ethernet Connector Type | RJ45 | |
| Product Type | RJ45 Connector | |
| LAN Category | Cat5 | |
| Number of Ports | 1 | |
| Connector Type | RJ45 | |
| Connector Gender | Male | |
| Orientation | Straight | |
| IP Rating | IP20 | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | 60°C | |
| Width | 14mm | |
| Standards/Approvals | RoHS | |
| Hazardous Area Certification | No | |
| Depth | 14.6mm | |
| Length | 56mm | |
| Series | VS | |
| Contact Material | Gold, Nickel | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Ethernet Connector Type RJ45 | ||
Product Type RJ45 Connector | ||
LAN Category Cat5 | ||
Number of Ports 1 | ||
Connector Type RJ45 | ||
Connector Gender Male | ||
Orientation Straight | ||
IP Rating IP20 | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature 60°C | ||
Width 14mm | ||
Standards/Approvals RoHS | ||
Hazardous Area Certification No | ||
Depth 14.6mm | ||
Length 56mm | ||
Series VS | ||
Contact Material Gold, Nickel | ||
- COO (Country of Origin):
- CH
The Phoenix Contact RJ45 connector is an essential component designed specifically for optimising connections within VARAN networks. Engineered with a focus on efficiency, it offers an intuitive assembly experience, requiring no special tools, which makes it ideal for both field service and repairs. The connector features 6 positions and integrates seamlessly with CAT5 cabling.
Supports a wide frequency range ensuring stable data transmission
A straight cable outlet for efficient cable management
Robust mechanical properties provide high resistance to wear and tear
Maintains superior electrical performance with low contact resistance
