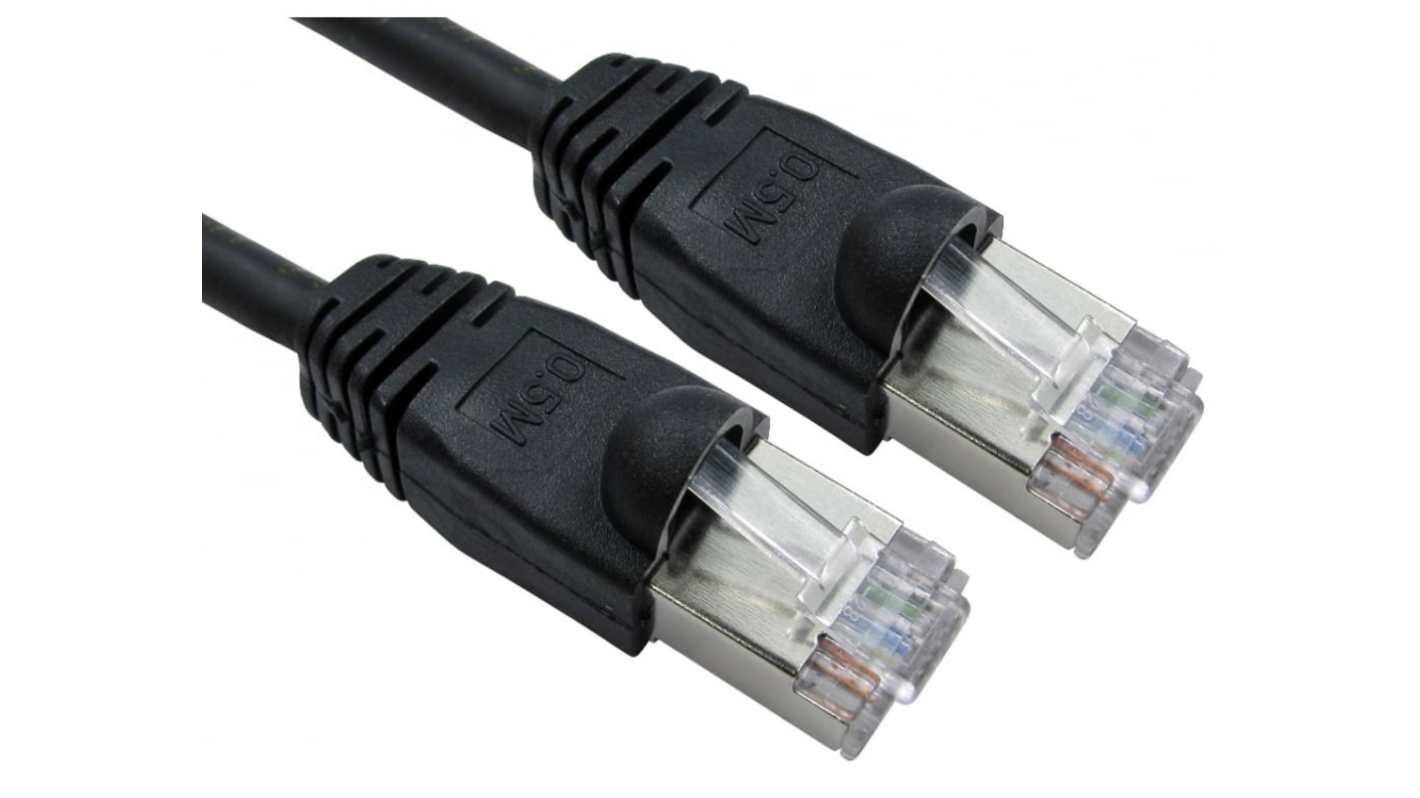

RS PRO, 3m Cat6, Black RJ45 to Male RJ45 Male, FTP Shielded, Terminated LSZH Sheath
- RS Stock No.:
- 286-3241
- Brand:
- RS PRO
Subtotal (1 unit)*
£5.70
(exc. VAT)
£6.84
(inc. VAT)
FREE delivery for orders over £50.00
- 64 unit(s) shipping from 23 October 2025
- Plus 100 unit(s) shipping from 20 November 2025
- Plus 100 unit(s) shipping from 11 December 2025
Units | Per unit |
---|---|
1 + | £5.70 |
*price indicative
- RS Stock No.:
- 286-3241
- Brand:
- RS PRO
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
LAN Category | Cat6 | |
Length | 3m | |
Terminated/Unterminated | Terminated | |
Shield Type | FTP | |
Connector 1 Orientation | Straight | |
Connector 1 Number of Contacts | 8 | |
Connector 1 Gender | Male | |
Connector 1 | RJ45 | |
Connector 2 | RJ45 | |
Connector 2 Number of Contacts | 8 | |
Connector 2 Gender | Male | |
Connector 2 Orientation | Straight | |
Shielded/Unshielded | Shielded | |
Outer Sheath Material | LSZH | |
Sheath Colour | Black | |
Wiring Configuration | Straight Through | |
Fire Behaviour | Low Smoke Zero Halogen (LSZH) | |
Core Strands | 7/0.15 | |
Conductor Strand Type | Stranded | |
Voltage Rating | 80V | |
Number of Strands | 8 | |
Capacitance | 5.6nF/100m | |
Cross Sectional Area | 0.126 to 0.158mm² | |
Current Rating | 960mA | |
Standards Met | ISO/IEC 11801, TIA/EIA 568B.2-1 | |
Outer Diameter | 5.6mm | |
Cable Shape | Round | |
American Wire Gauge | 26AWG | |
Select all | ||
---|---|---|
Brand RS PRO | ||
LAN Category Cat6 | ||
Length 3m | ||
Terminated/Unterminated Terminated | ||
Shield Type FTP | ||
Connector 1 Orientation Straight | ||
Connector 1 Number of Contacts 8 | ||
Connector 1 Gender Male | ||
Connector 1 RJ45 | ||
Connector 2 RJ45 | ||
Connector 2 Number of Contacts 8 | ||
Connector 2 Gender Male | ||
Connector 2 Orientation Straight | ||
Shielded/Unshielded Shielded | ||
Outer Sheath Material LSZH | ||
Sheath Colour Black | ||
Wiring Configuration Straight Through | ||
Fire Behaviour Low Smoke Zero Halogen (LSZH) | ||
Core Strands 7/0.15 | ||
Conductor Strand Type Stranded | ||
Voltage Rating 80V | ||
Number of Strands 8 | ||
Capacitance 5.6nF/100m | ||
Cross Sectional Area 0.126 to 0.158mm² | ||
Current Rating 960mA | ||
Standards Met ISO/IEC 11801, TIA/EIA 568B.2-1 | ||
Outer Diameter 5.6mm | ||
Cable Shape Round | ||
American Wire Gauge 26AWG | ||
- COO (Country of Origin):
- CN
RS PRO Ethernet Cable, LSZH Snagless Shielded Cat6 Patch Cable
Features and Benefits
Cat 6 standard supports up to 250 MHz for high-speed data transfer
LSZH material minimises toxic gas emissions for safer use in enclosed spaces
Snagless boot design prevents cable damage during installation
26 AWG bare copper cores provide excellent conductivity
Complies with ISO/IEC 11801 and TIA/EIA 568B.2-1 standards for assured quality
PoE compatible for powering devices over Ethernet
Applications
Office networks
Home networking
Telecommunications
Additional Information
Length: 3 m
Connector: RJ45, Male to Male
