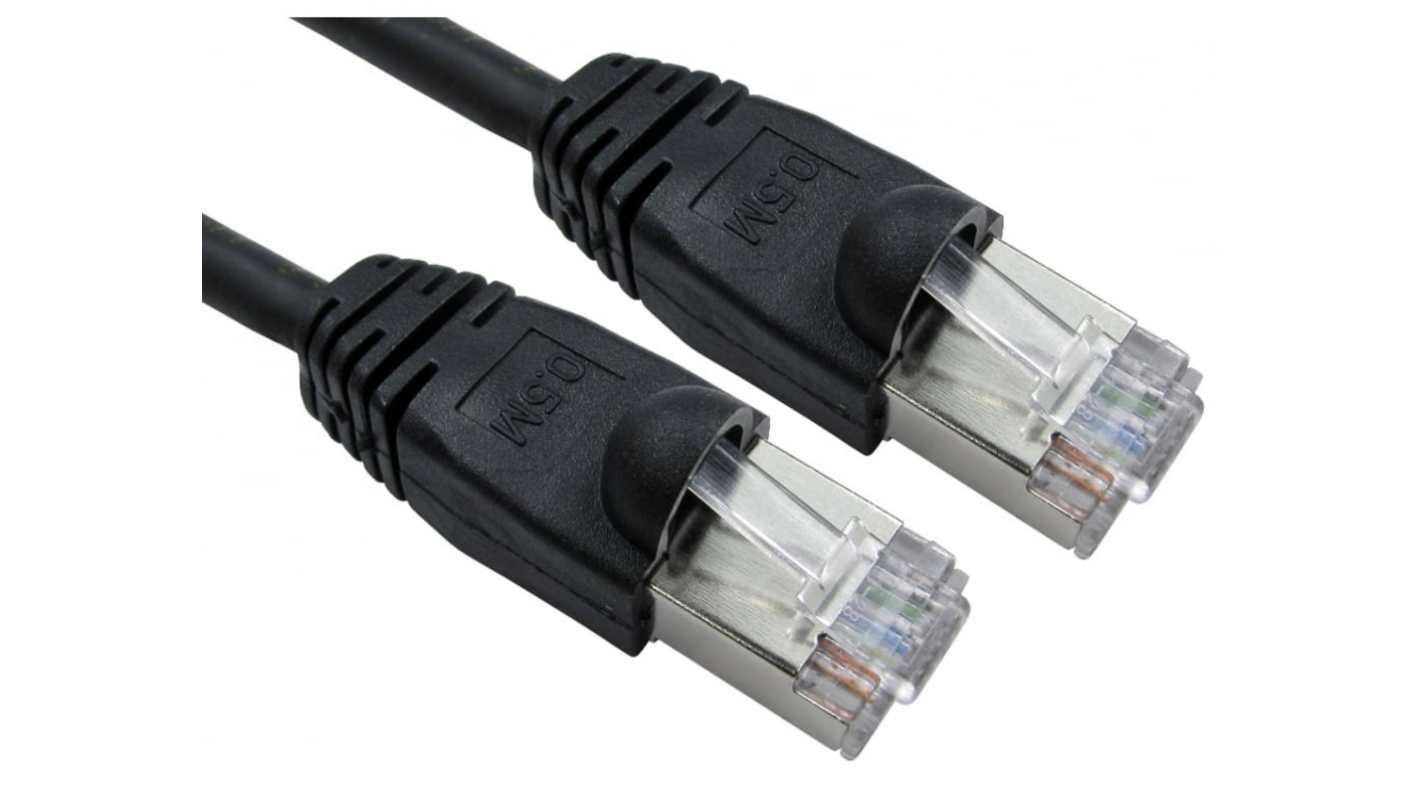

RS PRO, 1m Cat6, Black RJ45 to Male RJ45 Male, FTP Shielded, Terminated LSZH Sheath

RS Stock No.:: 286-3229
Brand:: RS PRO

RS PRO, 1m Cat6, Black RJ45 to Male RJ45 Male, FTP Shielded, Terminated LSZH Sheath

Subtotal (1 unit)*

£4.22

(exc. VAT)

£5.06

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

93 unit(s) ready to ship
Plus 60 unit(s) shipping from 18 December 2025
Plus 90 unit(s) shipping from 08 January 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£4.22

*price indicative

RS Stock No.:: 286-3229
Brand:: RS PRO

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Length	1m
	LAN Category	Cat6
	Terminated/Unterminated	Terminated
	Shield Type	FTP
	Connector 1 Orientation	Straight
	Connector 1 Gender	Male
	Connector 1	RJ45
	Connector 1 Number of Contacts	8
	Connector 2	RJ45
	Connector 2 Gender	Male
	Connector 2 Number of Contacts	8
	Shielded/Unshielded	Shielded
	Connector 2 Orientation	Straight
	Sheath Colour	Black
	Outer Sheath Material	LSZH
	Wiring Configuration	Straight Through
	Core Strands	7/0.15
	Fire Behaviour	Low Smoke Zero Halogen (LSZH)
	Current Rating	960mA
	Standards Met	ISO/IEC 11801, TIA/EIA 568B.2-1
	Conductor Strand Type	Stranded
	Outer Diameter	5.6mm
	Capacitance	5.6nF/100m
	Number of Strands	8
	Cross Sectional Area	0.126 to 0.158mm²
	American Wire Gauge	26AWG
	Voltage Rating	80V
	Cable Shape	Round

	Select all
	Brand RS PRO
	Length 1m
	LAN Category Cat6
	Terminated/Unterminated Terminated
	Shield Type FTP
	Connector 1 Orientation Straight
	Connector 1 Gender Male
	Connector 1 RJ45
	Connector 1 Number of Contacts 8
	Connector 2 RJ45
	Connector 2 Gender Male
	Connector 2 Number of Contacts 8
	Shielded/Unshielded Shielded
	Connector 2 Orientation Straight
	Sheath Colour Black
	Outer Sheath Material LSZH
	Wiring Configuration Straight Through
	Core Strands 7/0.15
	Fire Behaviour Low Smoke Zero Halogen (LSZH)
	Current Rating 960mA
	Standards Met ISO/IEC 11801, TIA/EIA 568B.2-1
	Conductor Strand Type Stranded
	Outer Diameter 5.6mm
	Capacitance 5.6nF/100m
	Number of Strands 8
	Cross Sectional Area 0.126 to 0.158mm²
	American Wire Gauge 26AWG
	Voltage Rating 80V
	Cable Shape Round

COO (Country of Origin):: CN

RS PRO Ethernet Cable, Cat6 LSZH

This RS PRO Ethernet Cable is a high-performance Cat6 cable designed for Gigabit Ethernet and other network protocols. It offers enhanced specifications for crosstalk and system noise, ensuring reliable and efficient data transmission. The cable is Low Smoke Zero Halogen (LSZH), reducing toxic emissions during combustion, making it ideal for use in environments where safety is a priority.

Features and Benefits

F/UTP (Foil Over Unshielded Twisted Pairs) construction ensures reduced interference
Cat6 standard supports up to 250 MHz for high-speed data transfer
LSZH material minimises toxic gas emissions for safer use
Snagless boot design prevents cable damage during installation
26 AWG bare copper cores provide excellent conductivity
Complies with ISO/IEC 11801 and TIA/EIA 568B.2-1 standards for assured quality
PoE compatible for powering devices over Ethernet

Applications

Data centres
Office networks
Telecommunications
Industrial automation

Additional Information

Meets ISO/IEC 11801 and TIA/EIA 568B.2-1 standards
