RS PRO, 3m Cat5e, Black RJ45 to Male RJ45 Male, UTP Unshielded, Terminated PVC Sheath

RS Stock No.:: 266-2666
Brand:: RS PRO

RS PRO, 3m Cat5e, Black RJ45 to Male RJ45 Male, UTP Unshielded, Terminated PVC Sheath

Subtotal (1 unit)*

£4.12

(exc. VAT)

£4.94

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

50 unit(s) ready to ship
Plus 2 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£4.12

*price indicative

RS PRO Cable Ties

From electrical to industrial applications, RS Pro offers a wide selection of cable ties to suit every need. Durable, reliable, and available in multiple sizes and materials, trusted by professionals across industries.

Shop here

RS Stock No.:: 266-2666
Brand:: RS PRO

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	LAN Category	Cat5e
	Length	3m
	Terminated/Unterminated	Terminated
	Shield Type	UTP
	Connector 1 Number of Contacts	8
	Connector 1 Orientation	Straight
	Connector 1 Gender	Male
	Connector 1	RJ45
	Connector 2 Number of Contacts	8
	Connector 2 Gender	Male
	Connector 2	RJ45
	Connector 2 Orientation	Right Angle
	Shielded/Unshielded	Unshielded
	Outer Sheath Material	PVC
	Sheath Colour	Black
	Wiring Configuration	Straight Through
	Number of Strands	8
	Standards Met	ROHS REACH UKCA CE ISO/IEC 11801 ANSII/TIA-568-C.2
	Cable Shape	Round
	Outer Diameter	4.7mm
	Current Rating	960mA
	Cross Sectional Area	0.201 to 0.253mm²
	Capacitance	5.6nF/100m
	Conductor Strand Type	Stranded
	American Wire Gauge	26AWG

	Select all
	Brand RS PRO
	LAN Category Cat5e
	Length 3m
	Terminated/Unterminated Terminated
	Shield Type UTP
	Connector 1 Number of Contacts 8
	Connector 1 Orientation Straight
	Connector 1 Gender Male
	Connector 1 RJ45
	Connector 2 Number of Contacts 8
	Connector 2 Gender Male
	Connector 2 RJ45
	Connector 2 Orientation Right Angle
	Shielded/Unshielded Unshielded
	Outer Sheath Material PVC
	Sheath Colour Black
	Wiring Configuration Straight Through
	Number of Strands 8
	Standards Met ROHS REACH UKCA CE ISO/IEC 11801 ANSII/TIA-568-C.2
	Cable Shape Round
	Outer Diameter 4.7mm
	Current Rating 960mA
	Cross Sectional Area 0.201 to 0.253mm²
	Capacitance 5.6nF/100m
	Conductor Strand Type Stranded
	American Wire Gauge 26AWG

COO (Country of Origin):: CN

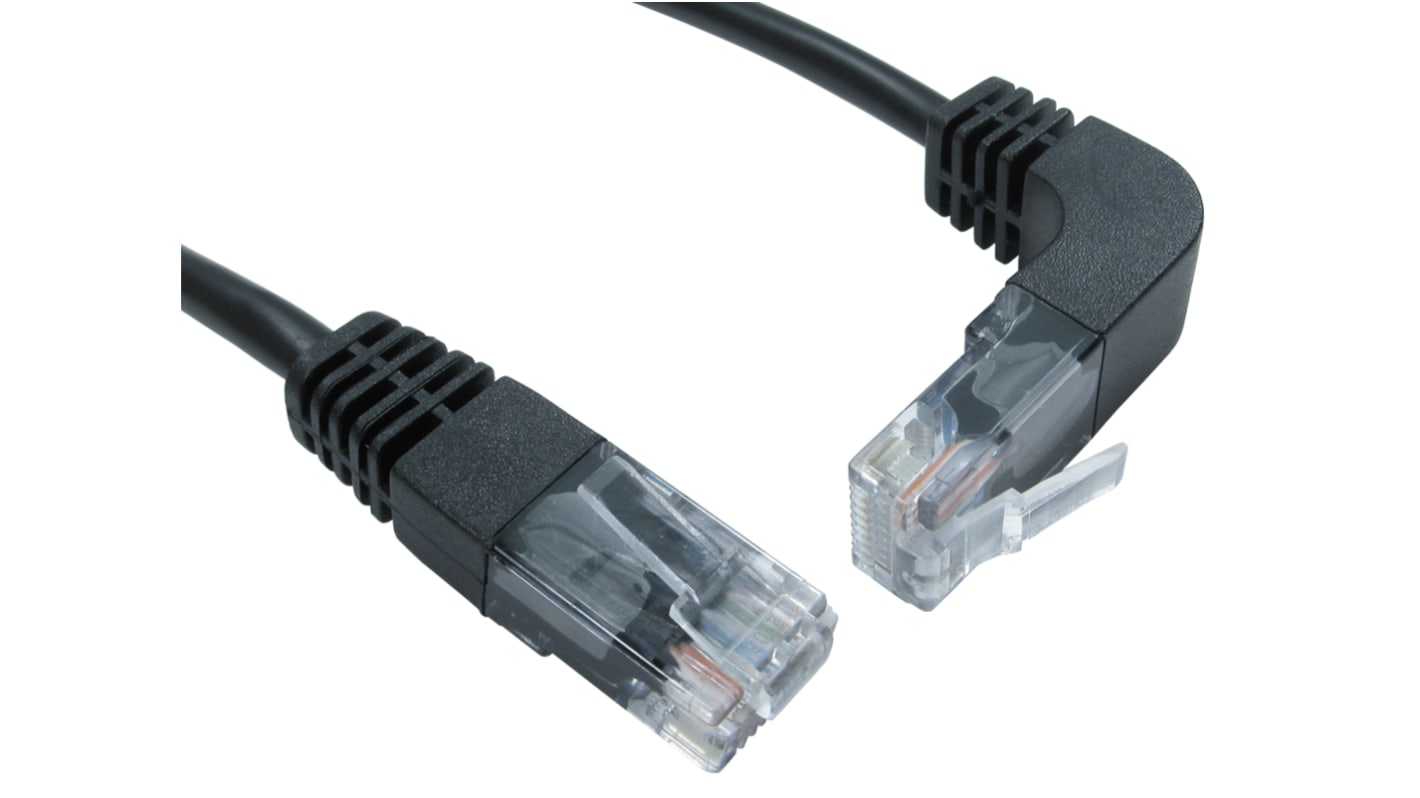

RS PRO Ethernet Cable, Straight to Right Angled

The RS PRO Ethernet Cable is designed for efficient networking in tight spaces, featuring a straight to right-angled configuration. Ideal for environments where space is limited, this Cat5e cable ensures reliable data transmission and is compatible with Power over Ethernet (PoE) applications.

Features and Benefits

Straight to Right Angle: Perfect for confined spaces

20mm from tip of RJ45 to the bend: Compact design

Cat5e: Supports high-speed data transfer

26 AWG Copper Cores: Ensures durability and performance

UTP: Unshielded Twisted Pair for reduced interference

Injection Moulded: Enhanced durability

PoE Compatible: Supports power and data over a single cable

Applications

Networking installations

Data centres

Office environments

Home networking

Additional Information

Sheath Colour: Black

Outer Sheath Material: PVC

Length: 3 m

Connector 1: RJ45, Straight

Connector 2: RJ45, Right Angle
