RS PRO, 0.5m Cat5e, Black RJ45 to Male RJ45 Male, UTP Unshielded, Terminated PVC Sheath

RS Stock No.:: 266-2663
Brand:: RS PRO

RS PRO, 0.5m Cat5e, Black RJ45 to Male RJ45 Male, UTP Unshielded, Terminated PVC Sheath

Subtotal (1 unit)*

£1.90

(exc. VAT)

£2.28

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

472 unit(s) ready to ship
Plus 522 unit(s) ready to ship from another location
Plus 813 unit(s) shipping from 22 January 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£1.90

*price indicative

RS PRO Cable Ties

From electrical to industrial applications, RS Pro offers a wide selection of cable ties to suit every need. Durable, reliable, and available in multiple sizes and materials, trusted by professionals across industries.

Shop here

RS Stock No.:: 266-2663
Brand:: RS PRO

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Length	0.5m
	LAN Category	Cat5e
	Terminated/Unterminated	Terminated
	Shield Type	UTP
	Connector 1 Number of Contacts	8
	Connector 1 Gender	Male
	Connector 1	RJ45
	Connector 1 Orientation	Straight
	Connector 2 Gender	Male
	Connector 2 Number of Contacts	8
	Connector 2	RJ45
	Connector 2 Orientation	Right Angle
	Shielded/Unshielded	Unshielded
	Outer Sheath Material	PVC
	Sheath Colour	Black
	Wiring Configuration	Straight Through
	American Wire Gauge	26AWG
	Outer Diameter	4.7mm
	Cable Shape	Round
	Current Rating	960mA
	Cross Sectional Area	0.201 to 0.253mm²
	Capacitance	5.6nF/100m
	Number of Strands	8
	Conductor Strand Type	Stranded
	Standards Met	ROHS REACH UKCA CE ISO/IEC 11801 ANSII/TIA-568-C.2

	Select all
	Brand RS PRO
	Length 0.5m
	LAN Category Cat5e
	Terminated/Unterminated Terminated
	Shield Type UTP
	Connector 1 Number of Contacts 8
	Connector 1 Gender Male
	Connector 1 RJ45
	Connector 1 Orientation Straight
	Connector 2 Gender Male
	Connector 2 Number of Contacts 8
	Connector 2 RJ45
	Connector 2 Orientation Right Angle
	Shielded/Unshielded Unshielded
	Outer Sheath Material PVC
	Sheath Colour Black
	Wiring Configuration Straight Through
	American Wire Gauge 26AWG
	Outer Diameter 4.7mm
	Cable Shape Round
	Current Rating 960mA
	Cross Sectional Area 0.201 to 0.253mm²
	Capacitance 5.6nF/100m
	Number of Strands 8
	Conductor Strand Type Stranded
	Standards Met ROHS REACH UKCA CE ISO/IEC 11801 ANSII/TIA-568-C.2

COO (Country of Origin):: CN

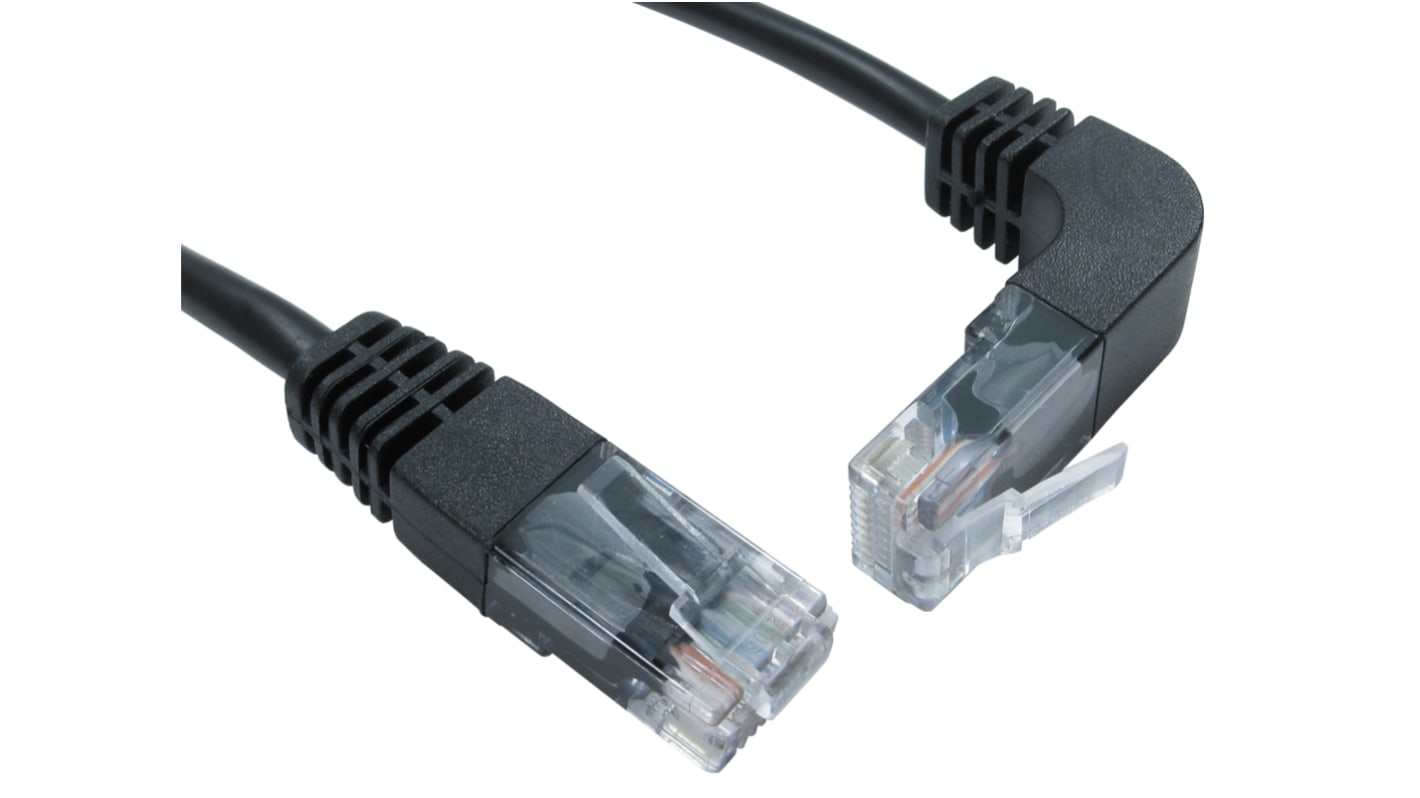

RS PRO Ethernet Cable, Straight to Right Angled

The RS PRO Ethernet Cable is designed for efficient data transmission in tight spaces. This Cat5e cable features a straight to right-angled design, making it ideal for environments where space is limited or angled connectors are preferred. It ensures reliable connectivity with its high-quality construction.

Features and Benefits

Straight to Right Angle: Allows for easy installation in confined spaces

20mm from tip of RJ45 to the bend: Compact design for tight areas

Cat5e: Supports fast and reliable data transmission

26 AWG Copper Cores: Ensures durability and performance

UTP: Unshielded Twisted Pair for reduced interference

Injection Moulded: Provides robust and secure connections

PoE Compatible: Supports Power over Ethernet applications

Applications

Networking

Telecommunications

Data Centres

Home and Office Networks

Additional Information

Sheath Colour: Black

Outer Sheath Material: PVC

Wiring Configuration: Straight Through

Length: 0.5 m

Connector 1: RJ45, Straight, Male

Connector 2: RJ45, Right Angle, Male

LAN Category: CAT5e

Why RS PRO?

RS PRO is the own brand of RS, offering professional quality products and solutions across all industries and technologies. Our product range is rigorously tested, inspected, and audited against demanding international standards to provide you with industrial-grade quality, at the right price. Making RS PRO your smart choice.
