Belden 1886ENH Cat7a Ethernet Cable, 500 m, Shielded Screened, Grey Low Smoke Zero Halogen
- RS Stock No.:
- 162-3180
- Mfr. Part No.:
- 1886ENH.00500
- Brand:
- Belden
Subtotal (1 reel of 500 metres)*
£846.64
(exc. VAT)
£1,015.97
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 19 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £846.64 | £1.693 |
*price indicative
- RS Stock No.:
- 162-3180
- Mfr. Part No.:
- 1886ENH.00500
- Brand:
- Belden
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Belden | |
| Product Type | Ethernet Cable | |
| Series | 1886ENH | |
| LAN Category | Cat7a | |
| Cable Length | 500m | |
| Terminated/Unterminated | Unterminated | |
| Sub Type | Cat7a | |
| Shield Type | Shielded | |
| Screened/Unscreened | Screened | |
| Conductor Type | Solid | |
| Jacket Material | Low Smoke Zero Halogen | |
| Jacket Colour | Grey | |
| Minimum Operating Temperature | 30°C | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | Eca, EN 50173-1 Ed. 3:2011, IEC 60332-1, ISO/IEC 11801 Ed. 2.0:2002/A2:2010/C1:2011 | |
| Fire Behaviour | Low Smoke Zero Halogen (LSZH) | |
| Number of Cores | 8 | |
| Conductor Material | Bare Copper | |
| Outside Diameter | 7.5mm | |
| Voltage | 75V | |
| Select all | ||
|---|---|---|
Brand Belden | ||
Product Type Ethernet Cable | ||
Series 1886ENH | ||
LAN Category Cat7a | ||
Cable Length 500m | ||
Terminated/Unterminated Unterminated | ||
Sub Type Cat7a | ||
Shield Type Shielded | ||
Screened/Unscreened Screened | ||
Conductor Type Solid | ||
Jacket Material Low Smoke Zero Halogen | ||
Jacket Colour Grey | ||
Minimum Operating Temperature 30°C | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals Eca, EN 50173-1 Ed. 3:2011, IEC 60332-1, ISO/IEC 11801 Ed. 2.0:2002/A2:2010/C1:2011 | ||
Fire Behaviour Low Smoke Zero Halogen (LSZH) | ||
Number of Cores 8 | ||
Conductor Material Bare Copper | ||
Outside Diameter 7.5mm | ||
Voltage 75V | ||
- COO (Country of Origin):
- HU

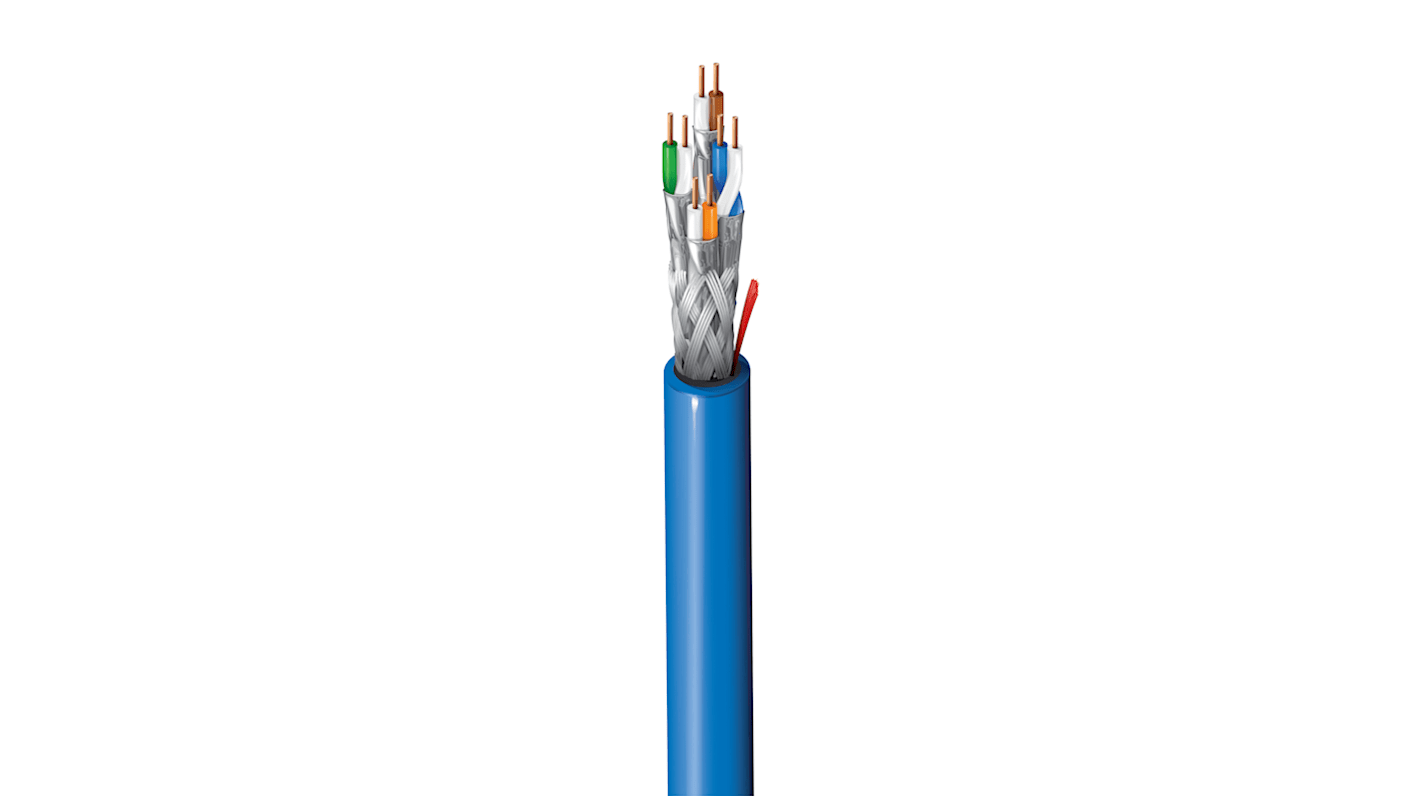

Belden Ethernet Cable, S/FTP Type, 23AWG Conductors - 1886ENH Series - 1886ENH.00500
Ensure electronic devices in your LAN stay well-connected with this Ethernet cable from Belden. It's made up of four pairs of conductors for robust multi-signal transmissions. The LSZH outer sheath minimises the risk of toxic fumes in the event of a fire. As this unit has unterminated ends, you have the flexibility when attaching it to a connector. As a Cat7a cable, it can support high speeds up to 10Gbps, enabling the transfer of data in a jiffy.
Features & Benefits
• Highly conductive bare copper conductors for reliable performance
• FPE insulation protects users against electrical hazards
• Length of 500m for convenient long-range connection
Applications
• Data centres
• Office buildings
• HVAC systems
What type of shielding does this cable have?
In addition to the aluminium/polyester foil that covers the individual conductors, this cable has an overall tinned copper braid shield with 30% coverage. This protects the signal from EMI and static noise.
