Belden 1685ENH Cat6a Ethernet Cable, 500 m, Shielded Screened, Grey Low Smoke Zero Halogen
- RS Stock No.:
- 162-3174
- Mfr. Part No.:
- 1685ENH.00500
- Brand:
- Belden
Subtotal (1 reel of 500 metres)*
£871.59
(exc. VAT)
£1,045.91
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 1 unit(s) shipping from 15 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £871.59 | £1.743 |
*price indicative
- RS Stock No.:
- 162-3174
- Mfr. Part No.:
- 1685ENH.00500
- Brand:
- Belden
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Belden | |
| Product Type | Ethernet Cable | |
| Series | 1685ENH | |
| LAN Category | Cat6a | |
| Cable Length | 500m | |
| Terminated/Unterminated | Unterminated | |
| Shield Type | Shielded | |
| Screened/Unscreened | Screened | |
| Conductor Type | Solid | |
| Jacket Material | Low Smoke Zero Halogen | |
| Jacket Colour | Grey | |
| Minimum Operating Temperature | -30°C | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | a1, ANSI/TIA/EIA 568-B.2-1 (2002), d1, Dca-s2, EN 50173-1 Ed. 3:2011, IEC 60332-1, ISO/IEC 11801 Ed. 2.0:2002/A2:2010/C1:2011 | |
| Fire Behaviour | Low Smoke Zero Halogen (LSZH) | |
| Voltage | 72V | |
| Outside Diameter | 7.1mm | |
| Conductor Material | Copper | |
| Select all | ||
|---|---|---|
Brand Belden | ||
Product Type Ethernet Cable | ||
Series 1685ENH | ||
LAN Category Cat6a | ||
Cable Length 500m | ||
Terminated/Unterminated Unterminated | ||
Shield Type Shielded | ||
Screened/Unscreened Screened | ||
Conductor Type Solid | ||
Jacket Material Low Smoke Zero Halogen | ||
Jacket Colour Grey | ||
Minimum Operating Temperature -30°C | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals a1, ANSI/TIA/EIA 568-B.2-1 (2002), d1, Dca-s2, EN 50173-1 Ed. 3:2011, IEC 60332-1, ISO/IEC 11801 Ed. 2.0:2002/A2:2010/C1:2011 | ||
Fire Behaviour Low Smoke Zero Halogen (LSZH) | ||
Voltage 72V | ||
Outside Diameter 7.1mm | ||
Conductor Material Copper | ||
- COO (Country of Origin):
- HU

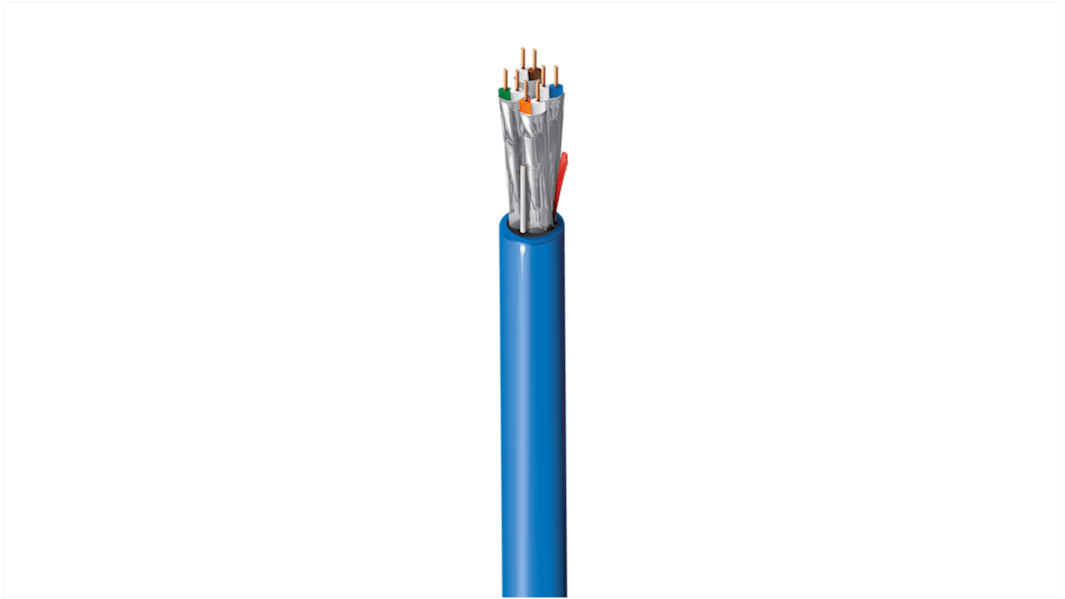

Belden 1685ENH Series Ethernet Cable, LSZH Outer Sheath, Twisted Pair - 1685ENH.00500
The Belden Ethernet Cable is a Cat6a LSZH Shielded Twisted Pair cable, compliant with ANSI/TIA/EIA 568-B.2-1 standards. With high performance capabilities, this cable is designed to meet the demanding requirements of automation, electronics, electrical, and mechanical industries. It offers reliable connectivity for data transmission in a range of applications.
Features & Benefits
• Cat6a LSZH shielded twisted pair cable for enhanced performance
• Solid Conductor with 23 AWG for reliable data transmission
• CPR Certified for safety in case of fire incidents
• Low Smoke Zero Halogen (LSZH) material for reduced toxicity
• High performance LAN cable suitable for 10GBase-T, Gigabit Ethernet, and other applications
• Shielded construction to minimise interference and ensure data integrity
Applications
• Ideal for automation systems requiring high-speed data transfer
• Suitable for use in electronics industries for reliable connectivity
• Perfect for electrical installations where data integrity is crucial
• Well-suited for mechanical applications where robust connectivity is essential
Can it support high-speed data transfer in automation systems?
Yes, the Cat6a Ethernet cable from Belden is designed to support high-speed data transfer requirements in automation systems.
Will it provide reliable connectivity in electronics industries?
The shielded twisted pair cable ensures reliable connectivity in electronics industries for seamless data transmission.
Is it suitable for electrical installations requiring data integrity?
Yes, the cable is perfect for electrical installations where data integrity is crucial for optimal performance.
Can it withstand the demands of mechanical applications?
The Cat6a LSZH shielded twisted pair cable is well-suited for mechanical applications, providing robust connectivity for various needs.
