Belden1888ENH, 500m Cat7a, Grey, S/FTP Shielded, Unterminated LSZH Sheath

RS Stock No.:: 162-3179
Mfr. Part No.:: 1888ENH.00500
Brand:: Belden

Belden1888ENH, 500m Cat7a, Grey, S/FTP Shielded, Unterminated LSZH Sheath

1 / 1

Subtotal (1 reel of 500 metres)**

£1,128.47

(exc. VAT)

£1,354.16

(inc. VAT)

2 In stock - FREE next working day delivery available*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over £50.00

Check stock levels

Reel(s)	Per Reel	Per Metre**
1 +	£1,128.47	£2.257

**price indicative

RS Stock No.:: 162-3179
Mfr. Part No.:: 1888ENH.00500
Brand:: Belden

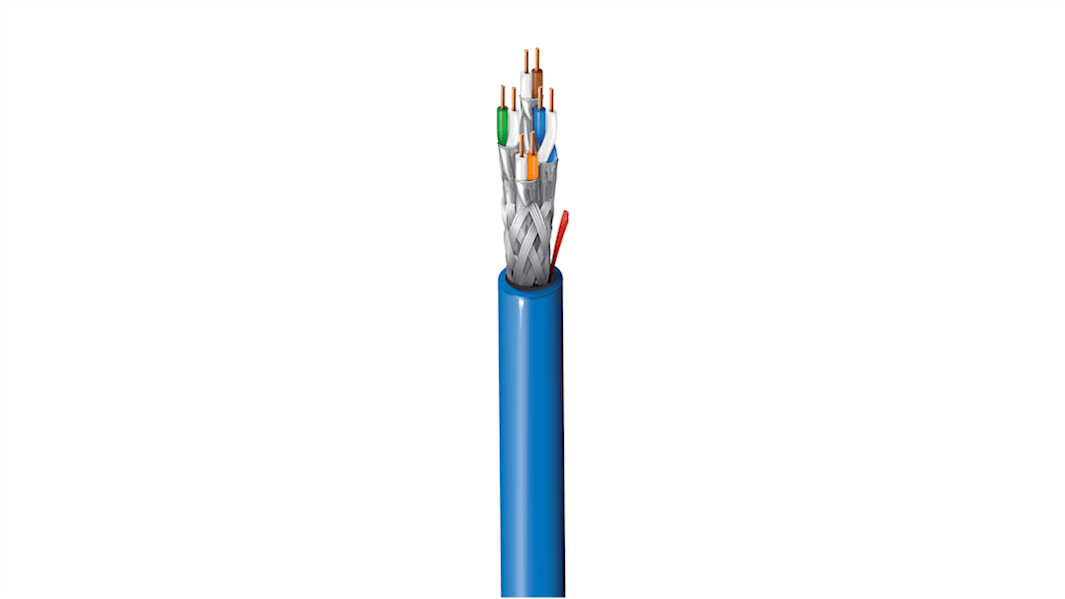

Belden 1888ENH Series Ethernet Cable, LSZH Outer Sheath, Twisted Pair - 1888ENH.00500

This Cat7a Ethernet cable by Belden is a high-quality LSZH cable designed with a shielded twisted pair configuration and a solid 22 AWG conductor. It offers high attenuation resistance and holds DCA CPR certification, making it a reliable choice for automation, electronics, electrical, and mechanical industries.

Features & Benefits

• Shielded twisted pair configuration for enhanced signal integrity
• LSZH (Low Smoke Zero Halogen) Material for a safe and environmentally friendly cable option
• 22 AWG Solid Conductor ensures stable data transmission
• High Attenuation Resistance minimises signal loss over long distances
• DCA CPR Certification guarantees compliance with safety standards
• S/FTP Ethernet Cable construction provides excellent electromagnetic interference protection
• 500m Ethernet Cable Length for various installation applications

Applications

• Ideal for horizontal and building backbone cable installations
• Suitable for current and future Category 6a, 7, and 7a applications
• Perfect for 10GBase-T, 1000Base-T, and 100 Base-T Ethernet networks

Can it support 10Gigabit Ethernet networks?

Yes, the Belden Cat7a Ethernet cable is designed to support 10Gigabit Ethernet networks with ease.

Is it suitable for use in areas with strict environmental regulations?

Yes, the LSZH material of this cable makes it ideal for environments that require low smoke and zero halogen emissions.

Will it provide reliable performance for automation applications?

Yes, the shielded twisted pair configuration and solid conductor of this cable ensure reliable performance in various automation applications.

Can it be used for both indoor and outdoor installations?

While primarily suited for indoor installations, this Cat7a Ethernet cable can be used for outdoor installations when provided with additional protection.

Is it compatible with standard RJ45 connectors?

Yes, the Belden Ethernet cable is compatible with standard RJ45 connectors, making it easy to integrate into existing network setups.

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Belden
	Series	1888ENH
	Length	500m
	LAN Category	Cat7a
	Terminated/Unterminated	Unterminated
	Shield Type	S/FTP
	Shielded/Unshielded	Shielded
	CPR Certification	Dca
	Sheath Colour	Grey
	Outer Sheath Material	LSZH
	Fire Behaviour	Low Smoke Zero Halogen (LSZH)
	Capacitance	56 pF/m, 1600pF/m
	Voltage Rating	72 V
	Cross Sectional Area	0.33 mm²
	Outer Diameter	8.1mm
	Conductor Strand Type	Solid
	Standards Met	Dca-s2, d1, a1, EN 50173-1 Ed. 3:2011, IEC 60332-1, ISO/IEC 11801 Ed. 2.0:2002/A2:2010/C1:2011
	Current Rating	1.5 A
	Cable Shape	Twisted Pair
	American Wire Gauge	22 AWG

	Select all
	Brand Belden
	Series 1888ENH
	Length 500m
	LAN Category Cat7a
	Terminated/Unterminated Unterminated
	Shield Type S/FTP
	Shielded/Unshielded Shielded
	CPR Certification Dca
	Sheath Colour Grey
	Outer Sheath Material LSZH
	Fire Behaviour Low Smoke Zero Halogen (LSZH)
	Capacitance 56 pF/m, 1600pF/m
	Voltage Rating 72 V
	Cross Sectional Area 0.33 mm²
	Outer Diameter 8.1mm
	Conductor Strand Type Solid
	Standards Met Dca-s2, d1, a1, EN 50173-1 Ed. 3:2011, IEC 60332-1, ISO/IEC 11801 Ed. 2.0:2002/A2:2010/C1:2011
	Current Rating 1.5 A
	Cable Shape Twisted Pair
	American Wire Gauge 22 AWG
