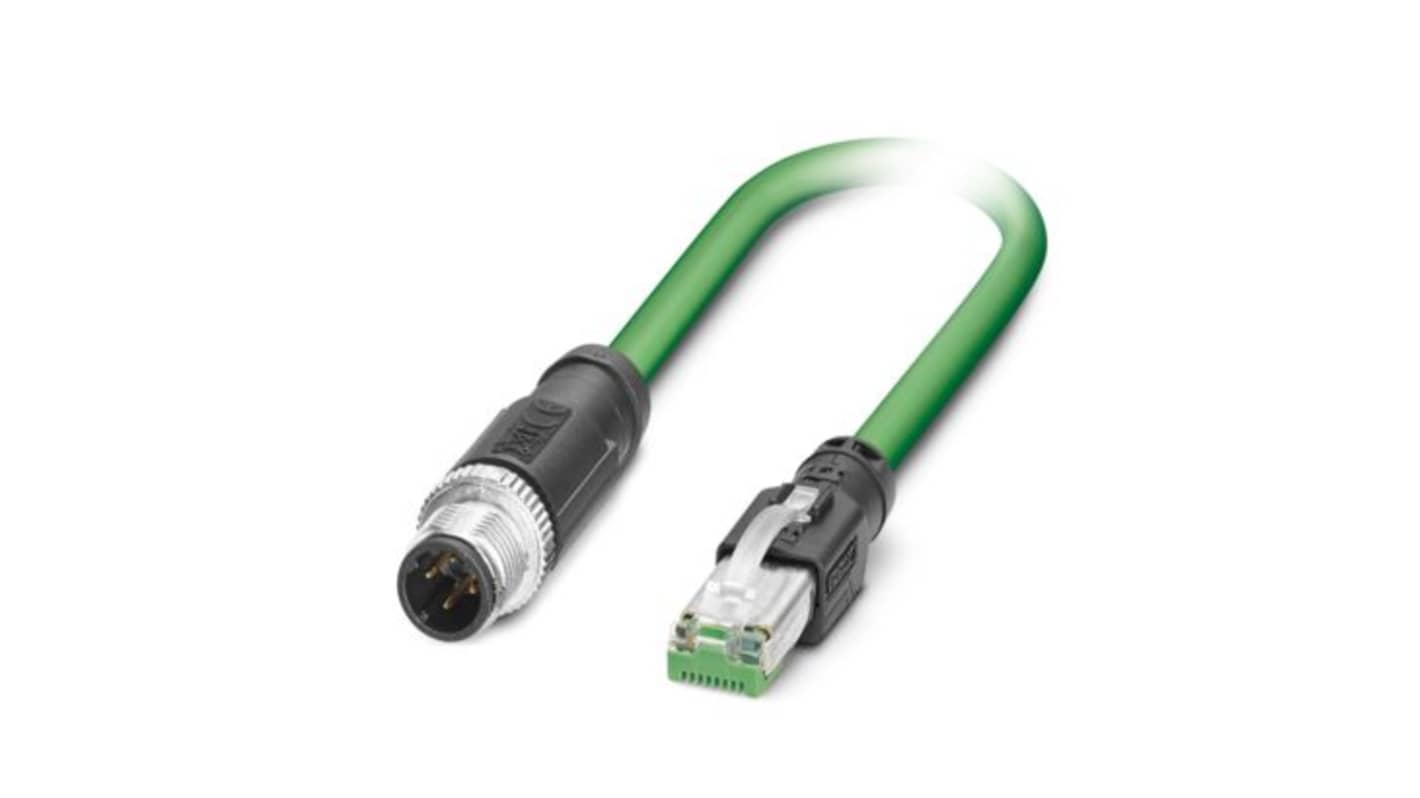

Phoenix Contact M12, RJ45, 20 m Ethernet Cable, Green Screened Polyvinyl Chloride Sheath
- RS Stock No.:
- 509-641
- Mfr. Part No.:
- 1080102
- Brand:
- Phoenix Contact
Subtotal (1 pack of 100 units)*
£9,876.80
(exc. VAT)
£11,852.20
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Pack* |
|---|---|---|
| 100 + | £98.768 | £9,876.80 |
*price indicative
- RS Stock No.:
- 509-641
- Mfr. Part No.:
- 1080102
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | Ethernet Cable | |
| Series | M12, RJ45 | |
| Cable Length | 20m | |
| Screened/Unscreened | Screened | |
| Jacket Material | Polyvinyl Chloride | |
| Jacket Colour | Green | |
| Conductor Type | Stranded | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Fire Behaviour | UL 1685 (CSA FT 4) | |
| Standards/Approvals | IEC 11801, UL AWM Style 21694, UL 94 V-0, UL 94 V-2, IEC 61076 2 101, UL 1685 (CSA FT 4) | |
| Conductor Material | Tin Plated Copper | |
| Voltage | 60V | |
| Number of Cores | 4 | |
| Cross Sectional Area | 0.34 to 2 mm² | |
| Outside Diameter | 6.5mm | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type Ethernet Cable | ||
Series M12, RJ45 | ||
Cable Length 20m | ||
Screened/Unscreened Screened | ||
Jacket Material Polyvinyl Chloride | ||
Jacket Colour Green | ||
Conductor Type Stranded | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Fire Behaviour UL 1685 (CSA FT 4) | ||
Standards/Approvals IEC 11801, UL AWM Style 21694, UL 94 V-0, UL 94 V-2, IEC 61076 2 101, UL 1685 (CSA FT 4) | ||
Conductor Material Tin Plated Copper | ||
Voltage 60V | ||
Number of Cores 4 | ||
Cross Sectional Area 0.34 to 2 mm² | ||
Outside Diameter 6.5mm | ||
- COO (Country of Origin):
- PL
The Phoenix Contact Network Cable is expertly designed for high-performance connectivity in industrial environments. Engineered for PROFINET and EtherCAT applications, it guarantees seamless data transmission with its advanced shielding technology. The cable, featuring a striking green RAL 6018 PVC outer sheath, is not only aesthetically pleasing but also ensures excellent durability under demanding conditions.
Preassembled connectors simplify installation for immediate use
Green RAL 6018 colour coding provides easy identification in complex setups
Complies with international standards for safety and performance
Lightweight construction facilitates ease of handling and installation
