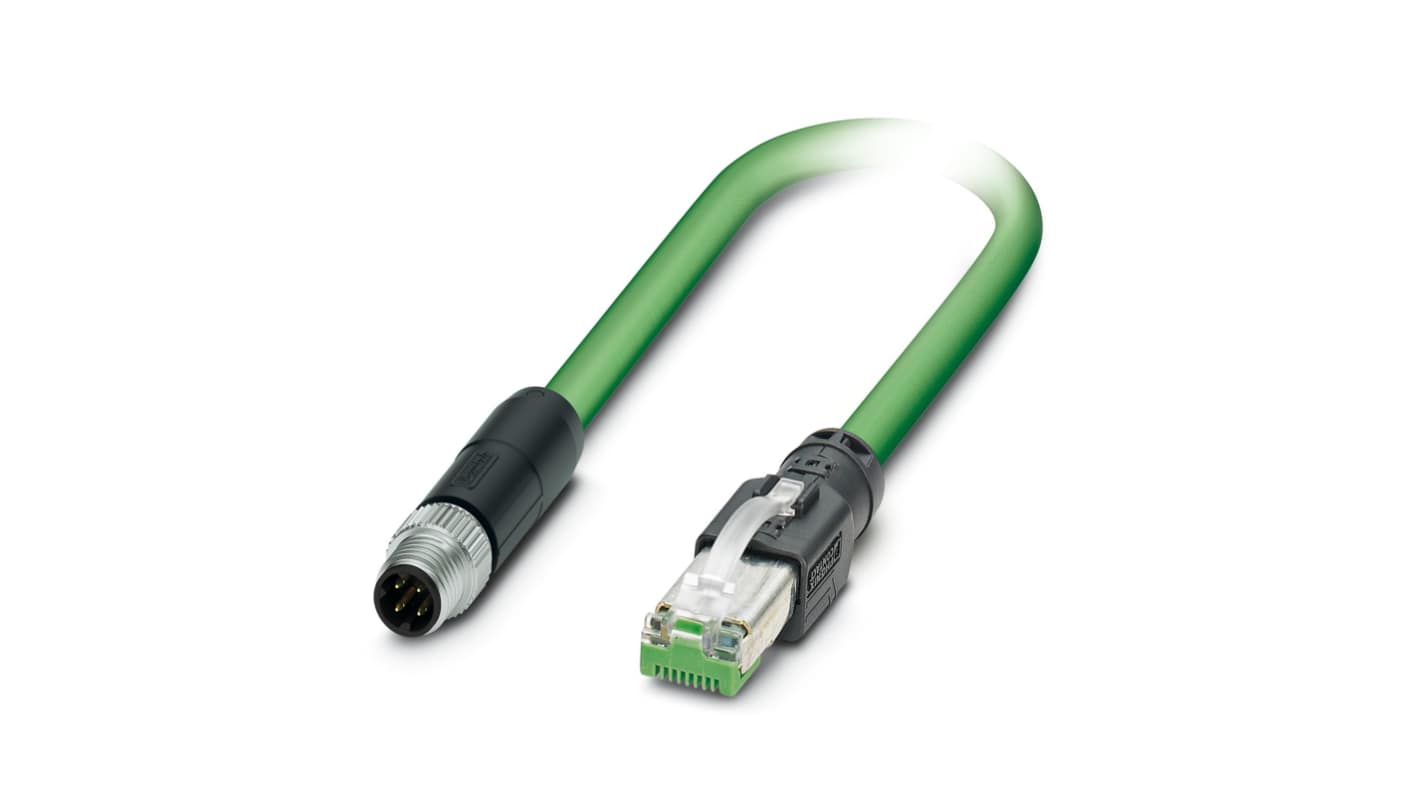

Phoenix Contact M8, RJ45 Ethernet Cable, 5 m, Screened, Green PVC
- RS Stock No.:
- 493-232
- Mfr. Part No.:
- 1158966
- Brand:
- Phoenix Contact
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£48.72
(exc. VAT)
£58.46
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 4 unit(s) shipping from 17 September 2026
- Plus 14 unit(s) shipping from 01 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £48.72 |
| 5 + | £47.75 |
*price indicative
- RS Stock No.:
- 493-232
- Mfr. Part No.:
- 1158966
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | Ethernet Cable | |
| Series | M8, RJ45 | |
| Cable Length | 5m | |
| LAN Category | Cat5 | |
| Terminated/Unterminated | Terminated | |
| Screened/Unscreened | Screened | |
| Jacket Material | Polyvinyl Chloride | |
| Jacket Colour | Green | |
| Minimum Operating Temperature | -40°C | |
| Conductor Type | Stranded | |
| Maximum Operating Temperature | 90°C | |
| Standards/Approvals | IEC 11801, UL 1581 Section 1200, UL 94 V2, UL AWM Style 21694, UL 1685 (CSA FT 4), IEC 61076 2 114 | |
| Fire Behaviour | UL 1685 (CSA FT 4) | |
| Voltage | 60V | |
| Conductor Material | Tin Plated Copper | |
| Number of Cores | 4 | |
| Outside Diameter | 6.5mm | |
| Cross Sectional Area | 0.34 to 2 mm² | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type Ethernet Cable | ||
Series M8, RJ45 | ||
Cable Length 5m | ||
LAN Category Cat5 | ||
Terminated/Unterminated Terminated | ||
Screened/Unscreened Screened | ||
Jacket Material Polyvinyl Chloride | ||
Jacket Colour Green | ||
Minimum Operating Temperature -40°C | ||
Conductor Type Stranded | ||
Maximum Operating Temperature 90°C | ||
Standards/Approvals IEC 11801, UL 1581 Section 1200, UL 94 V2, UL AWM Style 21694, UL 1685 (CSA FT 4), IEC 61076 2 114 | ||
Fire Behaviour UL 1685 (CSA FT 4) | ||
Voltage 60V | ||
Conductor Material Tin Plated Copper | ||
Number of Cores 4 | ||
Outside Diameter 6.5mm | ||
Cross Sectional Area 0.34 to 2 mm² | ||
- COO (Country of Origin):
- PL
The Phoenix Contact Network Cable merges robustness with advanced technology, delivering exceptional performance for demanding applications. Designed for PROFINET and EtherCAT standards, this cable ensures reliable data transmission at speeds of 100 Mbps. The preassembled setup features a plug straight M8 to RJ45 connection, making installation straightforward while adhering to rigorous industry guidelines. Its shielded design utilises Advanced Shielding Technology to prevent interference, ensuring stable communication in even the most challenging environments.
Durable PVC external sheath enhances resistance to environmental factors
Complies with industrial standards for reliable connectivity
Designed for seamless integration in automation systems
Lightweight construction facilitates easier handling and installation
