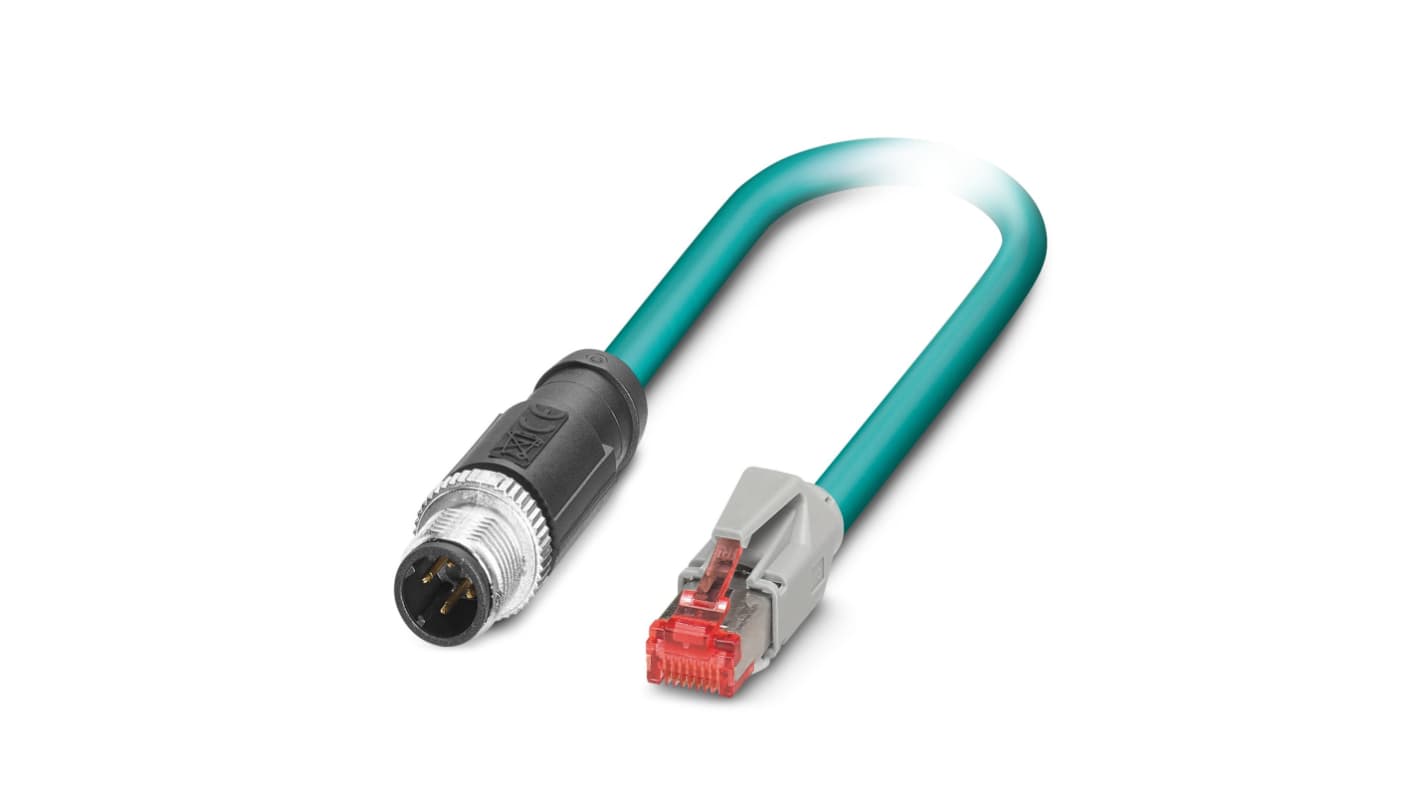

Phoenix Contact M12, RJ45, 20 m Ethernet Cable Screened Polyurethane Sheath
- RS Stock No.:
- 509-659
- Mfr. Part No.:
- 1031021
- Brand:
- Phoenix Contact
Subtotal (1 pack of 25 units)*
£2,945.15
(exc. VAT)
£3,534.175
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 27 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 25 + | £117.806 | £2,945.15 |
*price indicative
- RS Stock No.:
- 509-659
- Mfr. Part No.:
- 1031021
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | Ethernet Cable | |
| Series | M12, RJ45 | |
| Cable Length | 20m | |
| Screened/Unscreened | Screened | |
| Jacket Material | Polyurethane | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 80°C | |
| Fire Behaviour | hardly inflammable, Self-Extinguishing, Flame resistance according to UN ECE, in acc. to UL VW1, Flammability rating UL 94 V-0, Halogen Free, IEC 60332-1-2 | |
| Core Strands | 7 | |
| Standards/Approvals | IEC 60754 1, IEC 60332 1 2, UN ECE R 118.03, IEC 11801, IEC 61076 2 101, EN 60811 2 1, EN 50288 2 2, UL 94 V-0, UL AWM Style 20963, UL VW1 | |
| Voltage | 100V | |
| Conductor Material | Bare Copper Wire | |
| Number of Cores | 4 | |
| Outside Diameter | 6.4mm | |
| Cross Sectional Area | 0.14 to 2 mm² | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type Ethernet Cable | ||
Series M12, RJ45 | ||
Cable Length 20m | ||
Screened/Unscreened Screened | ||
Jacket Material Polyurethane | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 80°C | ||
Fire Behaviour hardly inflammable, Self-Extinguishing, Flame resistance according to UN ECE, in acc. to UL VW1, Flammability rating UL 94 V-0, Halogen Free, IEC 60332-1-2 | ||
Core Strands 7 | ||
Standards/Approvals IEC 60754 1, IEC 60332 1 2, UN ECE R 118.03, IEC 11801, IEC 61076 2 101, EN 60811 2 1, EN 50288 2 2, UL 94 V-0, UL AWM Style 20963, UL VW1 | ||
Voltage 100V | ||
Conductor Material Bare Copper Wire | ||
Number of Cores 4 | ||
Outside Diameter 6.4mm | ||
Cross Sectional Area 0.14 to 2 mm² | ||
- COO (Country of Origin):
- PL
The Phoenix Contact Network Cable is designed for reliable Ethernet connectivity in demanding environments. Crafted to meet stringent industrial standards, this 20-meter cable combines durability with exceptional performance, making it ideal for applications requiring stable data transmission at 100 Mbps. Its halogen-free and flame-resistant materials ensure safety and compliance, while the IP67-rated M12 connector and IP20-rated RJ45 plug guarantee protection against dust and moisture.
High quality copper transmission medium supports efficient signal clarity
Low bending radius allows for easy routing in tight spaces
Compatible with a wide range of Phoenix Contact products
Designed for high insertion and withdrawal cycles for reliable usage
