RS PRO, 305 m Cat5e Ethernet Cable, Purple Straight, Unterminated to, Unshielded Low Smoke Zero Halogen Sheath
- RS Stock No.:
- 199-198
- Brand:
- RS PRO
Subtotal (1 reel of 305 metres)*
£198.75
(exc. VAT)
£238.50
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 99 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £198.75 | £0.652 |
*price indicative
- RS Stock No.:
- 199-198
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Ethernet Cable | |
| Cable Length | 305m | |
| LAN Category | Cat5e | |
| Shield Type | Unshielded | |
| Connector Type A | Straight, Unterminated | |
| Jacket Colour | Purple | |
| Jacket Material | Low Smoke Zero Halogen | |
| Standards/Approvals | No | |
| Hazardous Area Certification | No | |
| Voltage | 300 V | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type Ethernet Cable | ||
Cable Length 305m | ||
LAN Category Cat5e | ||
Shield Type Unshielded | ||
Connector Type A Straight, Unterminated | ||
Jacket Colour Purple | ||
Jacket Material Low Smoke Zero Halogen | ||
Standards/Approvals No | ||
Hazardous Area Certification No | ||
Voltage 300 V | ||
- COO (Country of Origin):
- CN

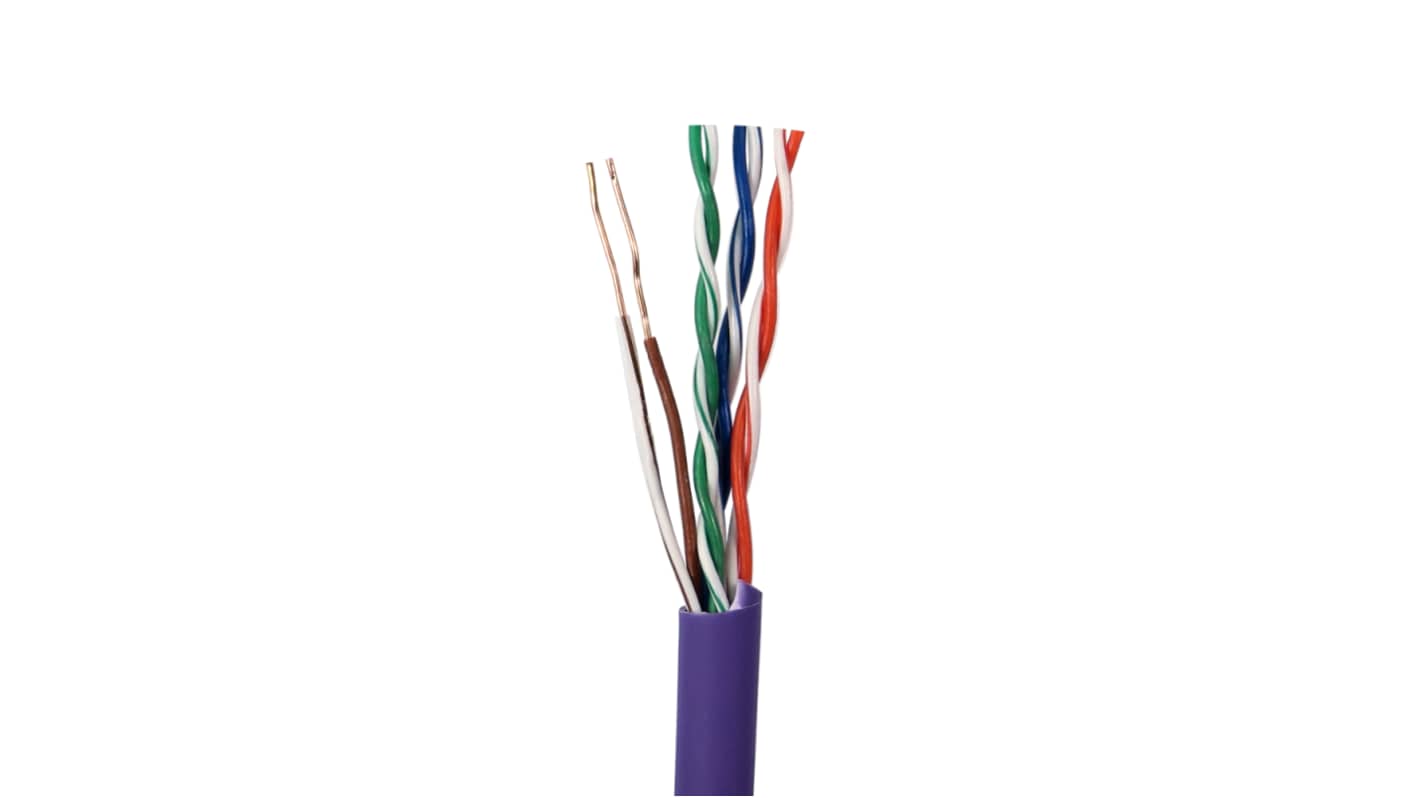

The RS Pro Unterminated Cat5e type cables have primary application use for both home and office computer networks. This cable is compliance with CE, UKCA, RoHS, and REACH standards. It offers an IP67 rating, ensuring excellent protection from water and dust ingress. This cable features 8 core strands with LSZH fire behaviour, making it suitable for environments where low smoke emissions are critical. With solid conductor strands and a 24 AWG, it combines safety and reliability in its design.
Conforms to ANSI/TIA-568.2-D and ISO/IED 11801-1
HDPE insulation
Backwards compatible to CAT 3 and CAT 5
U/UTP cable
Operation Temperature of -20°C to 60°C
Conductor DC Resistance less than or equal to 11.7 Ω/100m
