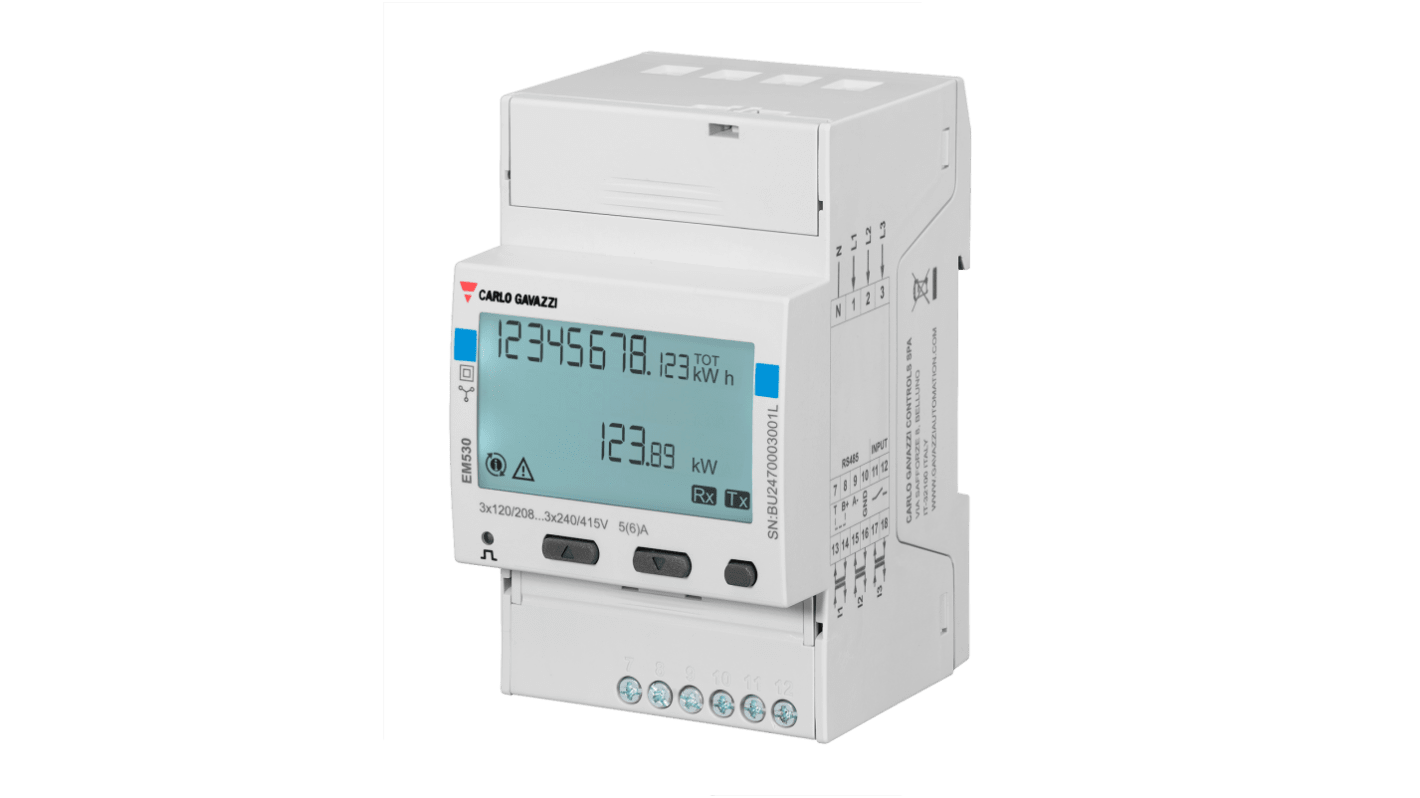

Carlo Gavazzi 3 Phase LED Energy Meter, Type Energy Meter
- RS Stock No.:
- 430-084
- Mfr. Part No.:
- EM530DINAV53XS1PFD
- Brand:
- Carlo Gavazzi
Subtotal (1 unit)*
£225.44
(exc. VAT)
£270.53
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 1 unit(s) shipping from 08 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £225.44 |
*price indicative
- RS Stock No.:
- 430-084
- Mfr. Part No.:
- EM530DINAV53XS1PFD
- Brand:
- Carlo Gavazzi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Carlo Gavazzi | |
| Series | EM530 | |
| Product Type | Energy Meter | |
| Display Type | LED | |
| Cutout Height | 90mm | |
| Number of Digits | 8 | |
| Cutout Width | 62.41mm | |
| Number of Phases | 3 | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 55°C | |
| Depth | 48.8mm | |
| Standards/Approvals | EN IEC 62053-21, EN IEC 61557-12, CE, EN50470-3, MID, UKCA | |
| Meter Type | Energy Meter | |
| Select all | ||
|---|---|---|
Brand Carlo Gavazzi | ||
Series EM530 | ||
Product Type Energy Meter | ||
Display Type LED | ||
Cutout Height 90mm | ||
Number of Digits 8 | ||
Cutout Width 62.41mm | ||
Number of Phases 3 | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 55°C | ||
Depth 48.8mm | ||
Standards/Approvals EN IEC 62053-21, EN IEC 61557-12, CE, EN50470-3, MID, UKCA | ||
Meter Type Energy Meter | ||
- COO (Country of Origin):
- IT
The Carlo Gavazzi Three-Phase MID Energy Analyzer operates within a voltage range of 120 to 230 V L-N and 208 to 400 V L-L, with a current input of 5 (6) A. It supports RS485 Modbus RTU communication and is bidirectional.
Frequency 50Hz
Current inputs 5 A current transformers
Energy metering Consumption
Communication port and protocol RS485 Modbus RTU
Power supply Self power supply
Approvals marks declarations CE Europe; MID Europe fiscal metering; UKCA UK
